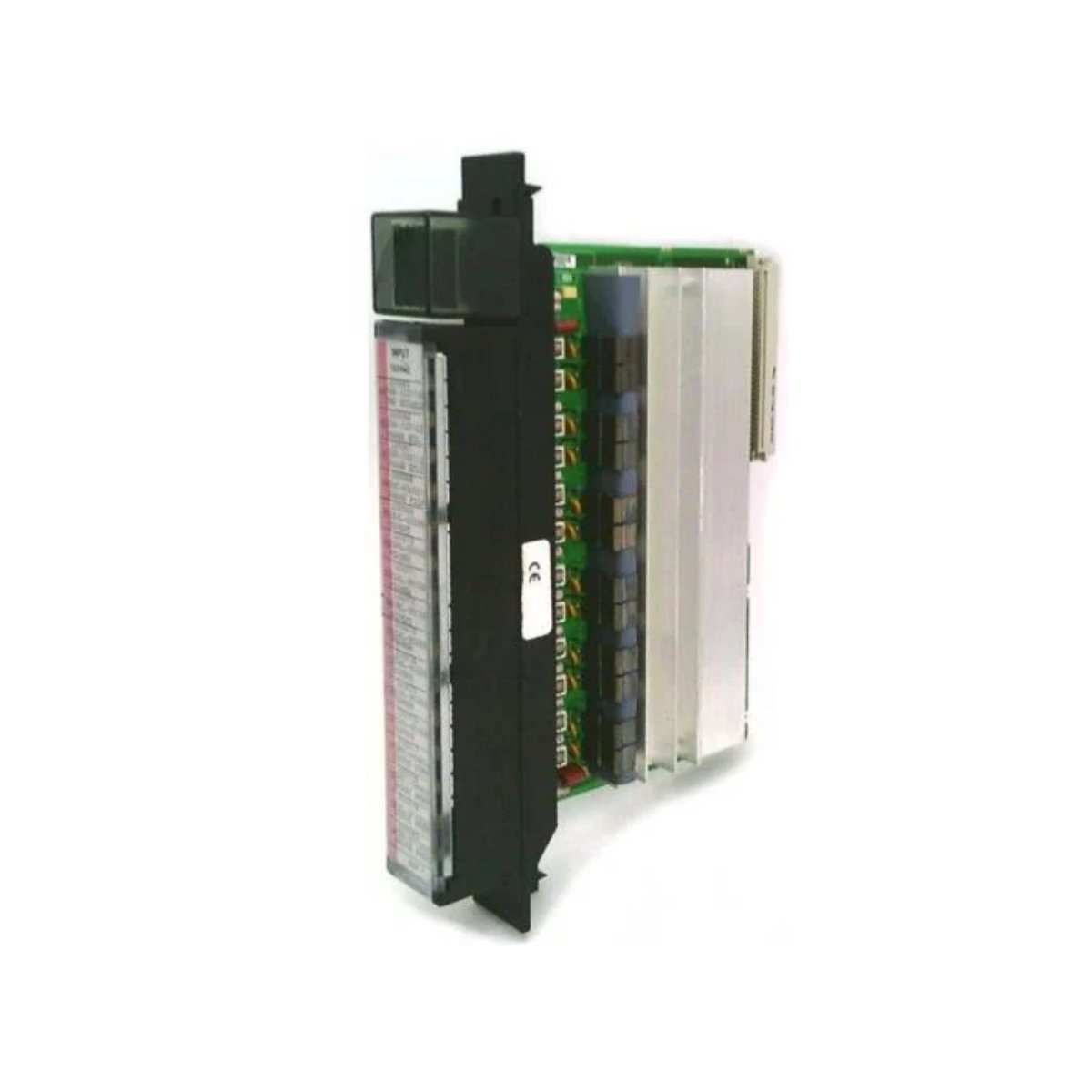

GE Fanuc IC697MDL253 AC Input Module Overview
The GE Fanuc IC697MDL253 is a high-performance 24V AC input module designed for Series 90-70 PLCs. Moreover, it provides 32 input points, divided into 4 isolated groups. Consequently, you can connect different AC phases safely and efficiently. Additionally, built-in LED indicators display real-time status for each point. This module supports both 2-wire and 3-wire devices, simplifying industrial automation setup.
Key Features
- 32 discrete input points divided into 4 isolated groups for flexible AC phase connections
- Operates reliably with 24V AC, suitable for various industrial sensors
- LED indicators provide immediate feedback for each input point
- Supports 2-wire and 3-wire devices without additional hardware
- 20-microsecond input filter ensures stable signal detection
- No DIP switches or jumpers required; configuration occurs entirely through software
- Compatible with proximity switches, limit switches, and other industrial AC devices
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc / GE Intelligent Platforms |
| Series | Series 90-70 |
| Model | IC697MDL253 |
| Module Type | AC Input Module |
| Input Points | 32 points (4 isolated groups of 8) |
| Rated Voltage | 24 V AC |
| Input Current (On-state) | 10 mA |
| Input Current (Off-state leakage) | 2 mA |
| Frequency | 47-63 Hz |
| Module Current Required | 0.30 A from 5V backplane |
| Power Type | AC |
| LED Indicators | Yes, per input point |
| Filter | 20 μs |
| Installation | Keyed for correct placement in Series 90-70 racks |
Package Contents
- One (1) GE Fanuc IC697MDL253 AC input module
- Full installation and user documentation
Installation Guidelines
First, insert the IC697MDL253 into the correct Series 90-70 PLC rack slot. Next, connect AC input devices according to the isolated groups. Moreover, check the LED indicators to confirm real-time input activity. Finally, configure filter settings and device parameters through PLC software.
Ideal Applications
The IC697MDL253 module is ideal for:
- AC sensor monitoring in industrial automation panels
- Connecting proximity switches, limit switches, and 3-wire devices
- Systems requiring isolated input groups with status LEDs
- Multi-phase AC control for Series 90-70 PLCs
Frequently Asked Questions
Q: What voltage does this module operate at?
A: It operates at 24V AC, suitable for industrial sensors.
Q: How many input points are available?
A: The module provides 32 discrete input points arranged in 4 isolated groups.
Q: Does it support 2-wire and 3-wire devices?
A: Yes, it supports both without additional hardware.
Q: Are LEDs available for each input?
A: Yes, every input point has an LED for instant status feedback.
Origin, Dimensions, and Weight
- Origin: USA
- Dimensions: 130 mm × 95 mm × 40 mm
- Weight: 0.52 kg
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
