Core Signal Acquisition for PACSystems

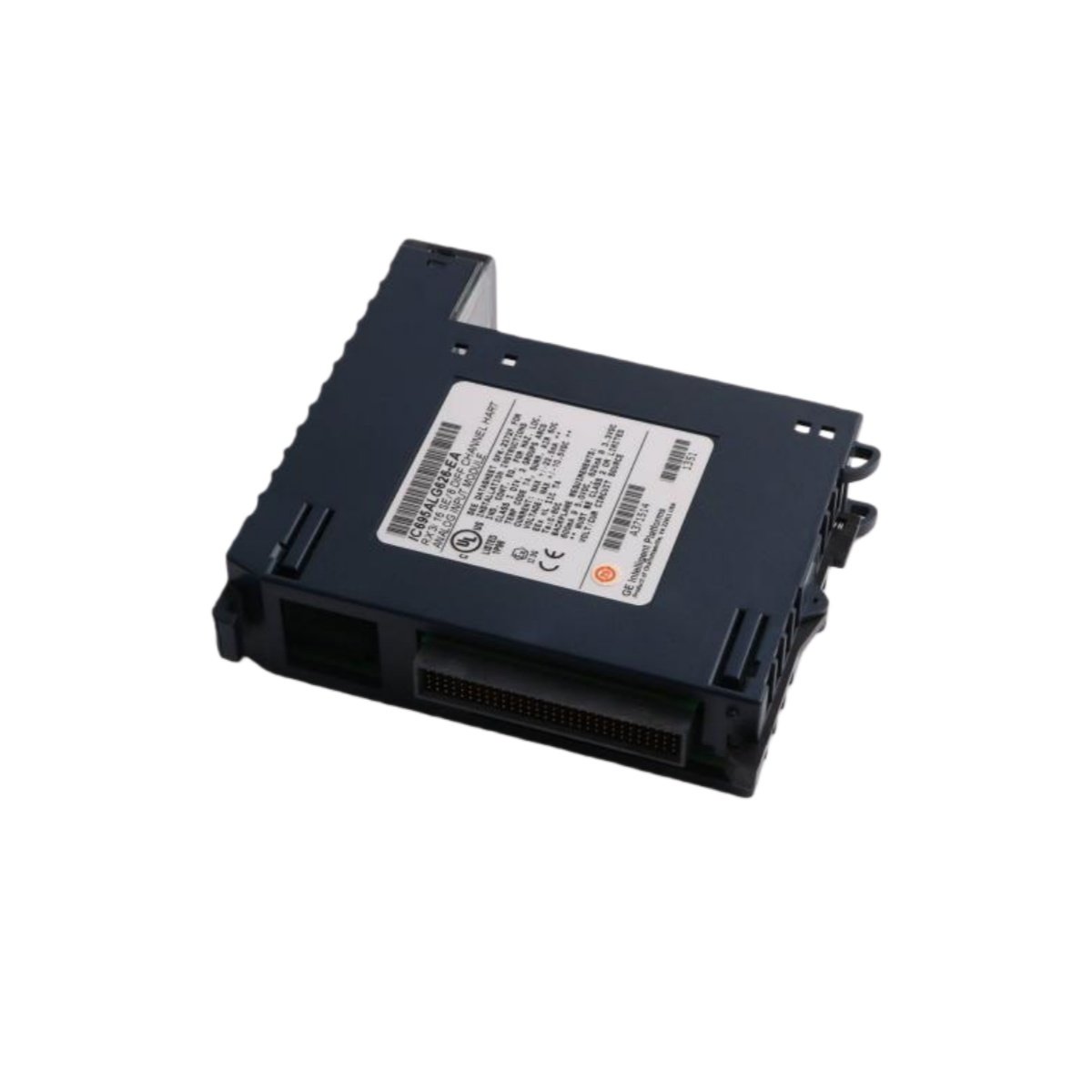

The GE Fanuc IC695ALG608 is a high-density analog input module for the PACSystem RX3i platform. This module provides eight single-ended or four differential input channels in a single slot. It supports a wide variety of voltage and current signals common in process control. Consequently, it delivers versatile and precise measurement capabilities for monitoring temperature, pressure, flow, and level.
High Resolution and Configurable Filtering
This module features a high-resolution 24-bit analog-to-digital converter (ADC) for accurate signal digitization. You can configure the output data format as IEEE 32-bit floating point or a 16-bit integer. The IC695ALG608 offers six selectable low-pass filter settings from 8 Hz to 500 Hz per channel. Furthermore, it performs automatic calibration during power-up to ensure long-term measurement accuracy.
Detailed Technical Specifications
Designed for industrial reliability, the module operates within a standard 0°C to 60°C temperature range. It connects to the RX3i backplane and is compatible with several styles of terminal blocks for wiring. The following table details its comprehensive electrical, performance, and system parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | GE Fanuc (Emerson) / PACSystem RX3i |
| Product Model | IC695ALG608 |
| Module Type | Non-Isolated Analog Input |
| Channel Configurations | 8 Single-Ended or 4 Differential |
| Supported Voltage Ranges | ±10V, 0-10V, ±5V, 0-5V, 1-5V, ±50mV, ±150mV |
| Supported Current Ranges | 0-20 mA, 4-20 mA, ±20 mA |
| ADC Resolution | 24-bit |
| Configurable Filters | 8, 12, 16, 40, 200, 500 Hz |
| Input Impedance (Voltage) | >100 kΩ |
| Current Input Resistance | 249 Ω ±1% |
| Open Circuit Detection | <1 second |
| Overvoltage Protection | ±60 VDC continuous |
| Overcurrent Protection | ±28 mA continuous |
| Backplane Power (5V) | 330 mA max |
| Backplane Power (3.3V) | 600 mA max |
| Max Power Dissipation | 4.83 W |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Software Requirement | Machine Edition v5.0 SP3 or later |
| Compatible Terminal Blocks | IC694TBB032, TBB132, TBS032, TBS132 |
System Integration and Features
Install the module into a universal slot on the RX3i backplane and attach your preferred terminal block. It requires a CPU with firmware version 3.0 or later for proper operation. The IC695ALG608 provides advanced diagnostics including channel alarms, fault reporting, and open wire detection. Therefore, it is an essential I/O component for building reliable and precise process control and data acquisition systems.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
