Overview

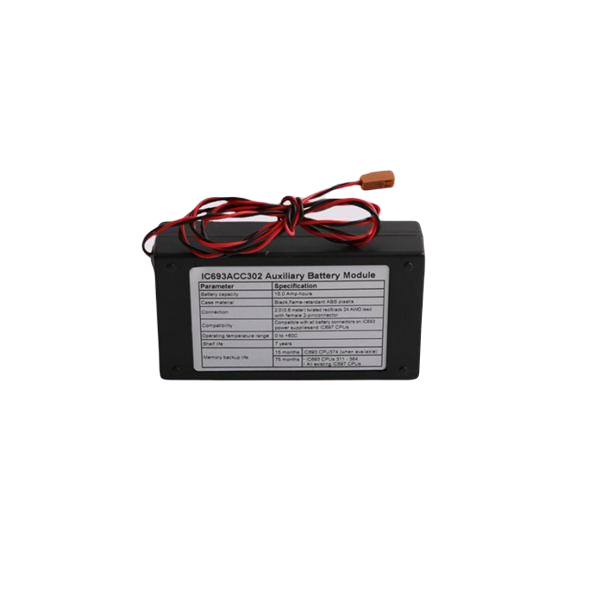

The IC695ACC302-AB is a smart auxiliary battery module from GE Fanuc. It provides extended volatile memory backup for PACSystems CPUs. This module ensures reliable low battery detection and improves battery life compared to standard coin cell batteries.

Key Features

• Extended Backup Time: Provides significantly longer memory backup than standard coin cells.
• Reliable Low Battery Detection: Alerts users before battery depletion to prevent data loss.
• Smart Design: Drains power immediately when connected to CPU in Power OFF mode. Connect when CPU is ON to maximize life.
• Compatible with PACSystems CPUs including CPU320, CRU320, CPE030/40, CRE030/040.
• Easy integration using the four-pin JAE connector for secure connection.

Technical Specifications

Installation Instructions

1. Connect the four-pin Male JAE connector on the enabling adapter cable to the battery module.
2. Connect the battery when CPU is powered ON to avoid unnecessary drain.
3. Disconnect the enabling adapter cable if the battery is not in use for extended periods.

Safety Warnings

• Avoid short-circuiting, crushing, disassembly, or exposure to fire.
• Do not install or replace the battery in hazardous areas.
• Follow the MSDS for safe handling and disposal.

Why Choose GE Fanuc IC695ACC302-AB

The IC695ACC302-AB offers reliable memory backup and precise low battery alerts. Its smart design maximizes battery life while ensuring continuous PACSystems CPU operation. The compact, connector-based design simplifies installation and replacement.
