Reliable 30W Power Supply Module for Series 90-30 PLC Systems

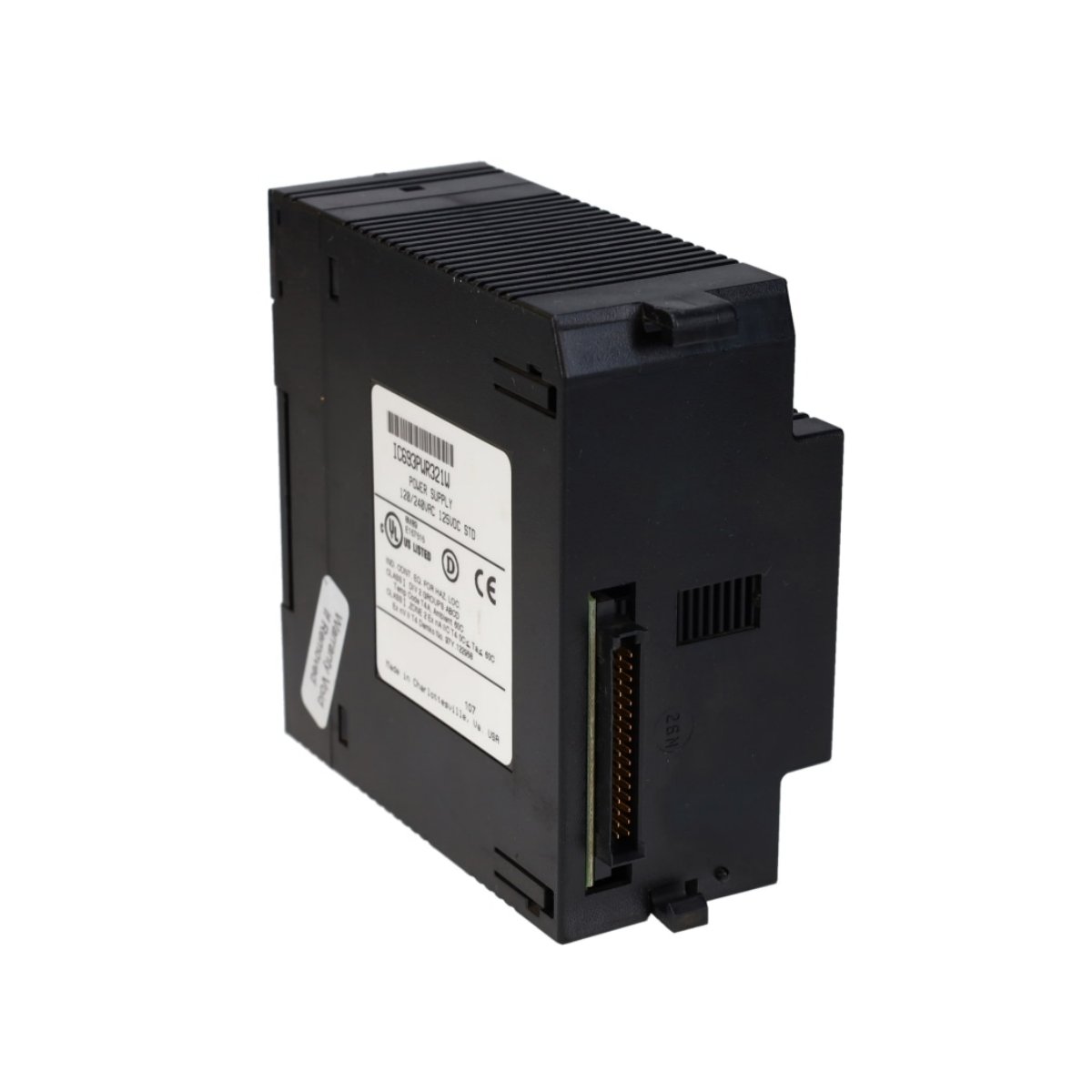

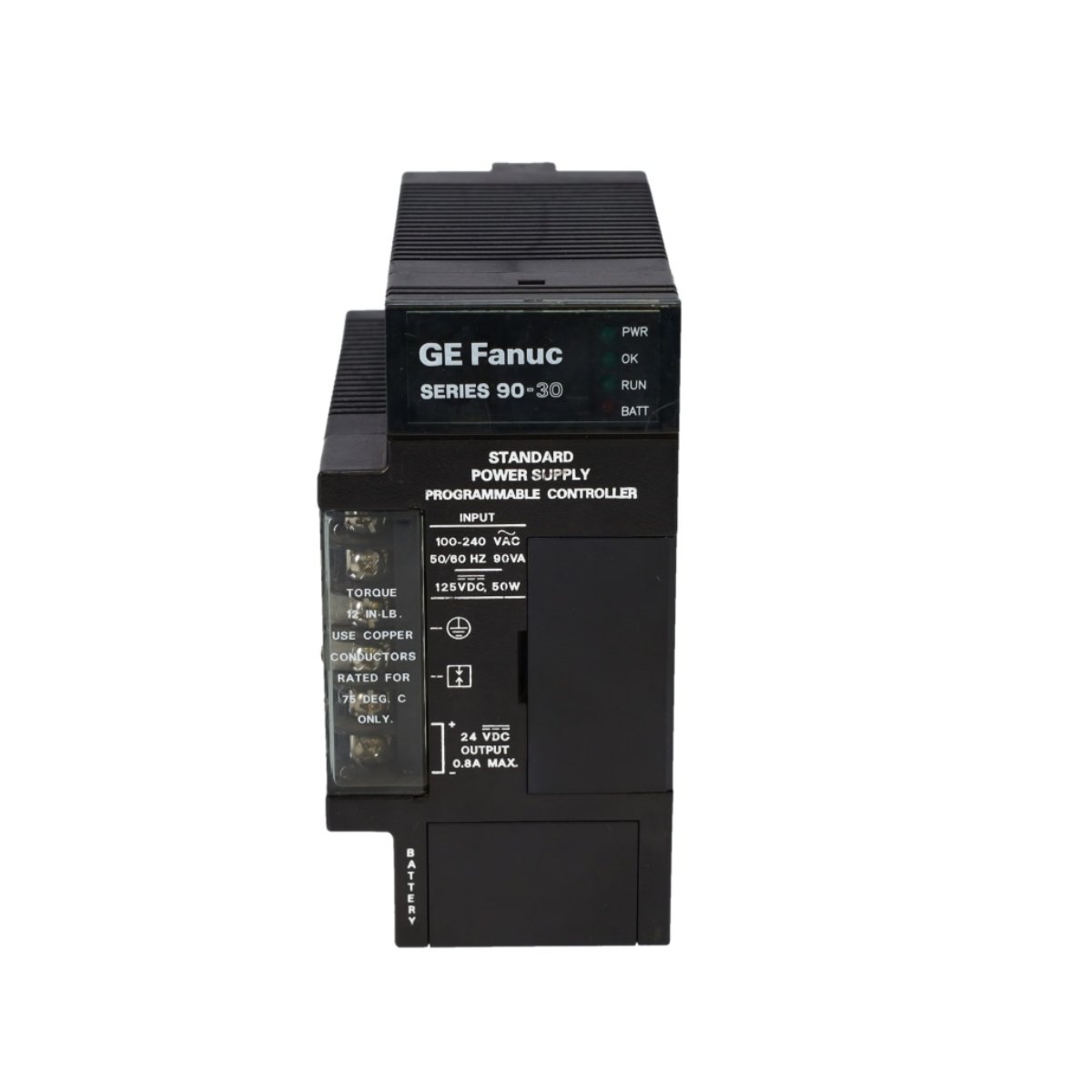

The GE Fanuc IC693PWR321 is a high-performance 30-watt power supply module designed for Series 90-30 PLC systems. It delivers stable and efficient power with both AC and DC input compatibility, ensuring optimal operation in industrial automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | GE Fanuc |
| Series | Series 90-30 PLC |
| Model | IC693PWR321 |
| Module Type | Standard Power Supply |
| Total Power | 30 Watts |
| AC Input Voltage | 85–264 VAC (120/240 VAC nominal) |
| DC Input Voltage | 100–300 VDC (125 VDC nominal) |
| Input Power | 90 VA (AC), 50 W (DC) |
| Inrush Current | 4 A peak, 250 ms maximum |
| Output Voltages | 5 VDC, 24 VDC Relay, 24 VDC Isolated |
| Output Power | 15 W @ 5 VDC, 15 W @ 24 VDC Relay, 20 W @ 24 VDC Isolated |
| Holdup Time | 20 ms minimum |
| Communication Interface | RS-485 serial port (9-pin Sub-D) |
| Installation Slot | Leftmost slot of Series 90-30 baseplate |
| Overvoltage Protection | 6.4–7.0 VDC range |
| Overcurrent Protection | 4 A maximum current limit |
| Terminal Connections | 6 terminals for operator wiring |
Features and Benefits
- Provides consistent 30W output across multiple voltages for reliable PLC operation.
- Accepts wide-range AC (85–264 VAC) or DC (100–300 VDC) inputs for flexible installation.
- Includes RS-485 serial communication port for real-time monitoring and diagnostics.
- Protects connected devices with overvoltage and overcurrent safeguards.
- Designed for leftmost baseplate installation, ensuring compatibility with Series 90-30 PLCs.
- Supports six-terminal connections, simplifying operator wiring and field integration.
Packaging and Shipping
- Each order includes one IC693PWR321 power supply module.
- Fast shipping via FedEx, UPS, and DHL ensures timely delivery worldwide.
- Professionally packaged to prevent damage during transport.
Origin, Dimensions, and Weight
- Origin: Made in U.S.A
- Dimensions: 140 mm × 50 mm × 80 mm (L×W×H)
- Weight: 0.45 kg (0.99 lbs)
Applications
Ideal for industrial automation and control systems, the IC693PWR321 powers Series 90-30 PLCs, relay circuits, and isolated control modules. Suitable for manufacturing, process control, and machinery monitoring applications.
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 140 × 50 × 80 mm |
