Versatile AC/DC Switching Power

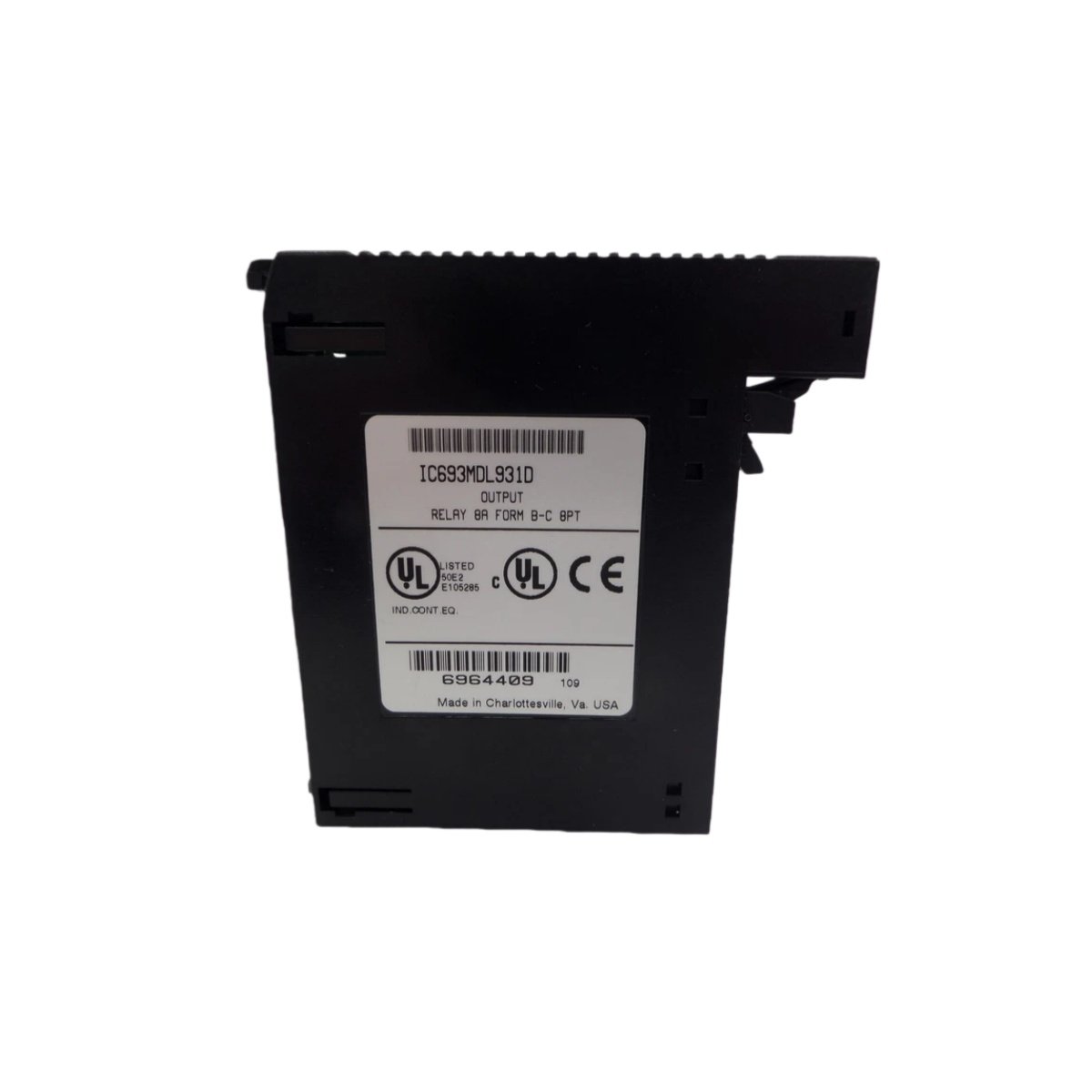

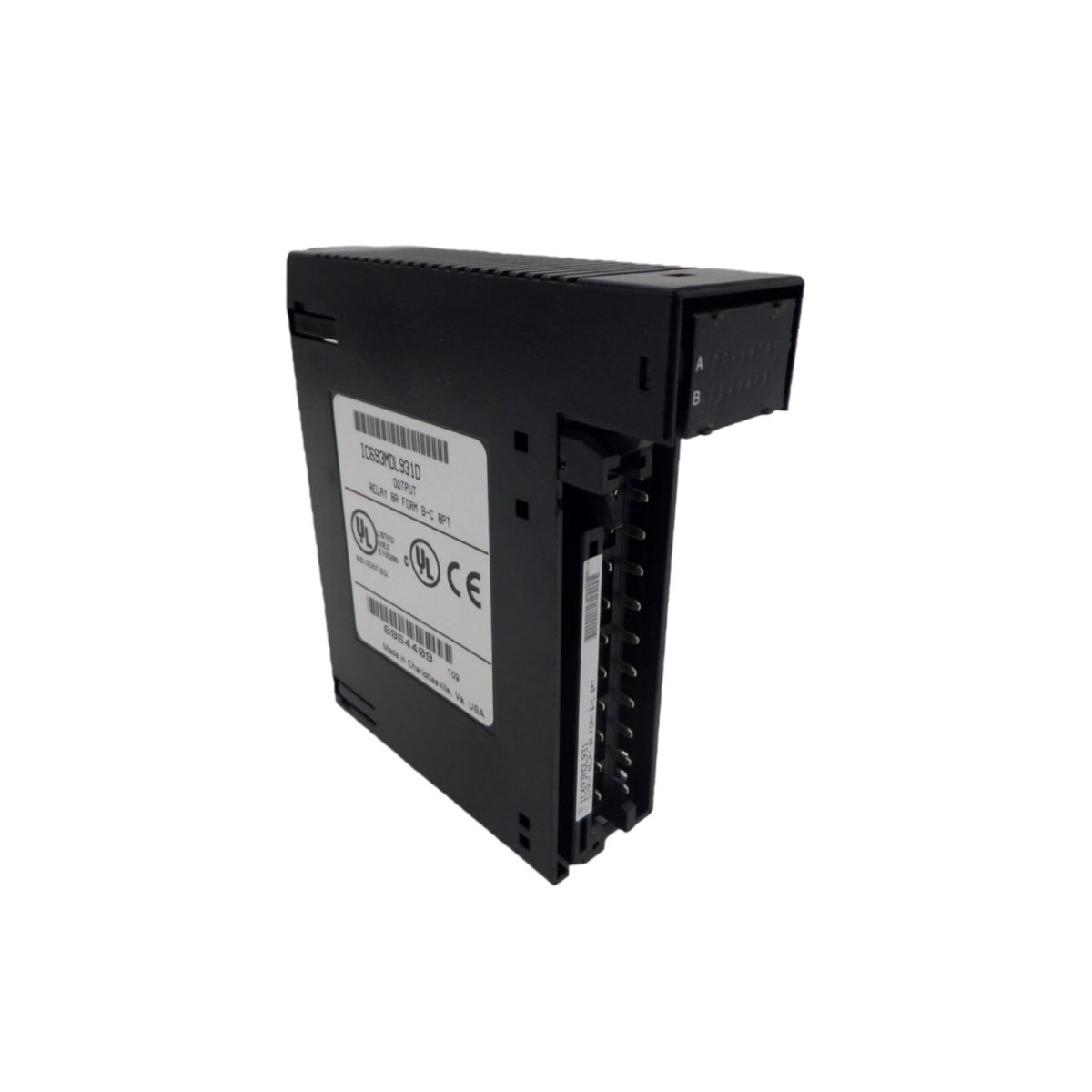

The GE Fanuc IC693MDL931 is a robust relay output module for the Series 90-30 PLC platform. It provides four isolated relay contacts, each capable of switching up to 8 Amps. This module handles both AC and DC loads, making it exceptionally flexible for various control tasks.

High-Capacity and Long-Lasting Performance

Each relay contact supports a wide voltage range from 5 to 250 VAC and 5 to 30 VDC. The relays are rated for a long operational life, typically reaching 1.1 million cycles under specific conditions. Consequently, it delivers reliable performance for demanding applications like motor starters, heaters, and solenoid valves.

Complete Technical Specifications

The following table details the essential operational and mechanical parameters for the IC693MDL931.

Designed for Simple and Safe Integration

The module’s relay isolation separates the PLC’s low-voltage logic from potentially noisy or high-voltage field circuits. This isolation protects the sensitive controller from voltage spikes and ground loops. The module installs directly into any compatible Series 90-30 baseplate without additional configuration.

Ideal Applications and Key Benefit

The IC693MDL931 excels in applications requiring direct control of high-power devices without an intermediary contactor. Its dual AC/DC rating simplifies inventory and provides design flexibility for mixed electrical systems. The high current rating and proven reliability make it a cornerstone for industrial control panel design.
