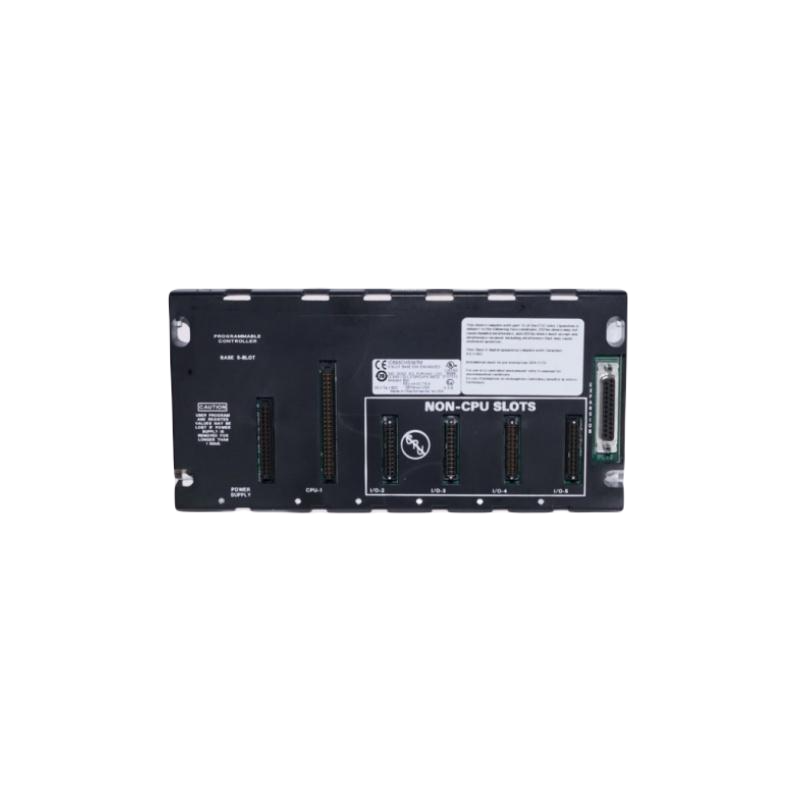

The GE Fanuc IC693CHS397 serves as a 5-slot modular CPU baseplate, designed specifically for GE Series 90-30 PLC systems. This baseplate features a dedicated power supply slot and four additional slots that support various modules, including CPUs, special option modules, and I/O modules. It provides both flexibility and scalability for system configurations.
Key Features
- Power Supply Slot: The leftmost slot is dedicated solely to power supply modules, ensuring stable power distribution. This slot does not have a number.
- CPU/Special Option Slot (Slot 1): Slot 1 is for the CPU or a special option module, such as the FIP Remote I/O Scanner (IC693BEM330).
- Modular Slots (Slots 2 and Above): Starting from Slot 2, these slots are designed to accommodate either option modules or I/O modules, offering system expansion flexibility.
- Expansion Capability: A 25-pin D-type female connector on the baseplate enables connection to an additional expansion or remote baseplate.
- Modular CPU Design: The modular design of the CPU makes it easy to replace or upgrade, enabling system improvements as needed.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IC693CHS397 |
| Type | CPU I/O Baseplate |
| Number of Slots | 5 |
| Dimensions | 10.43 x 5.12 x 5.59 inches (W x H x D) |
| Internal Power Used | 270 mA @ 5 VDC |
| Power Supply Slot | Dedicated for power supply |
| Expansion Slot | Female 25-pin D-type connector |
| Compatibility | Compatible with GE Series 90-30 PLC systems |
| Baseplate Option | Main (with CPU slot) |
| Rack Number | Default to 0 |
System Considerations
Only one IC693CHS397 CPU baseplate can be used in any system. If you need to expand, additional baseplates must be expansion or remote baseplates. By default, the IC693CHS397 is assigned Rack Number 0 for easy identification.
Details
| Weight | 1 kg |
|---|
