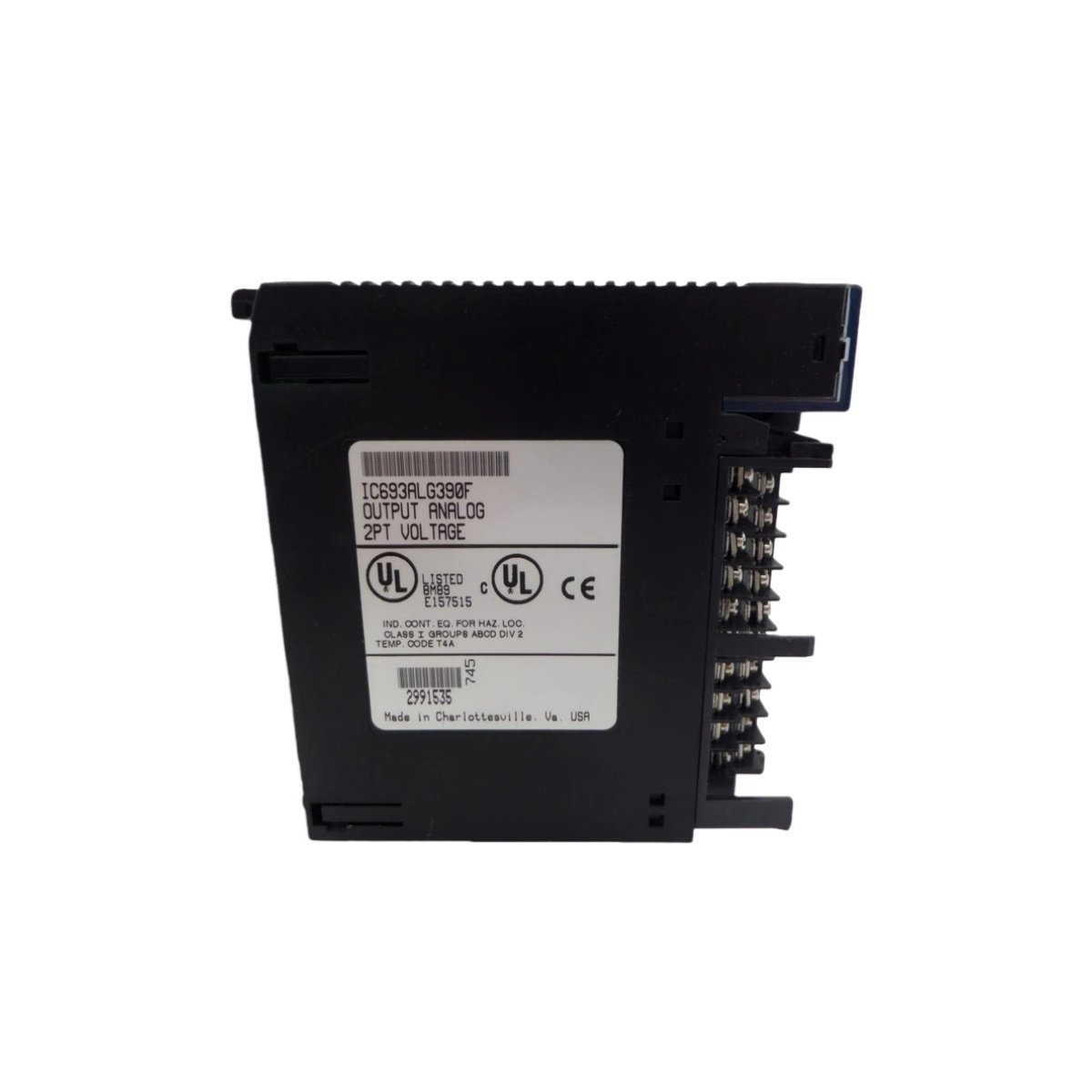

The GE Fanuc IC693ALG390 delivers precise analog voltage control for industrial applications. This module belongs to the versatile Series 90-30 PLC family from GE Fanuc. It provides two independent voltage output channels for reliable command signaling.
Precision Output Performance
Each channel on this module generates a precise -10 to +10 VDC output signal. The circuit offers a fine resolution of 2.5 mV per Least Significant Bit (LSB). Furthermore, it maintains an absolute accuracy of ±5 mV at a stable 25°C (77°F) ambient temperature.
Robust Electrical Design
Engineers can rely on this module’s robust 1500 Volts RMS isolation between field and logic sides. It requires an external supply voltage between 18 to 30 VDC with up to 10% ripple. Moreover, the module updates all outputs simultaneously at a fast rate of 5 milliseconds.
For system integration, review the comprehensive technical specifications provided below.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Model | GE Fanuc IC693ALG390 |
| Product Line / Series | Series 90-30 |
| Module Type | Analog Voltage Output Module |
| Number of Channels | 2 |
| Output Voltage Range | -10 VDC to +10 VDC |
| Output Resolution (1 LSB) | 2.5 mV |
| Absolute Accuracy (@25°C/77°F) | ± 5 mV |
| Maximum Output Offset (0-60°C) | 1 mV |
| Calibration | Factory calibrated to 2.5 mV per count |
| Update Rate (All Channels) | 5 ms |
| External Supply Voltage | 18 – 30 VDC |
| Max Supply Voltage Ripple | 10% |
| Isolation (Field to Logic) | 1500 Volts RMS |
| Weight | 0.75 lbs (0.34 kg) |
| Product Lifecycle Status | Discontinued/Obsolete |
Integration Notes
Please note this GE Fanuc module has reached its end-of-life production status. However, it remains a critical spare part for maintaining existing Series 90-30 control systems. Its factory calibration ensures consistent performance without requiring field adjustments.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
