Versatile High-Density Voltage Input

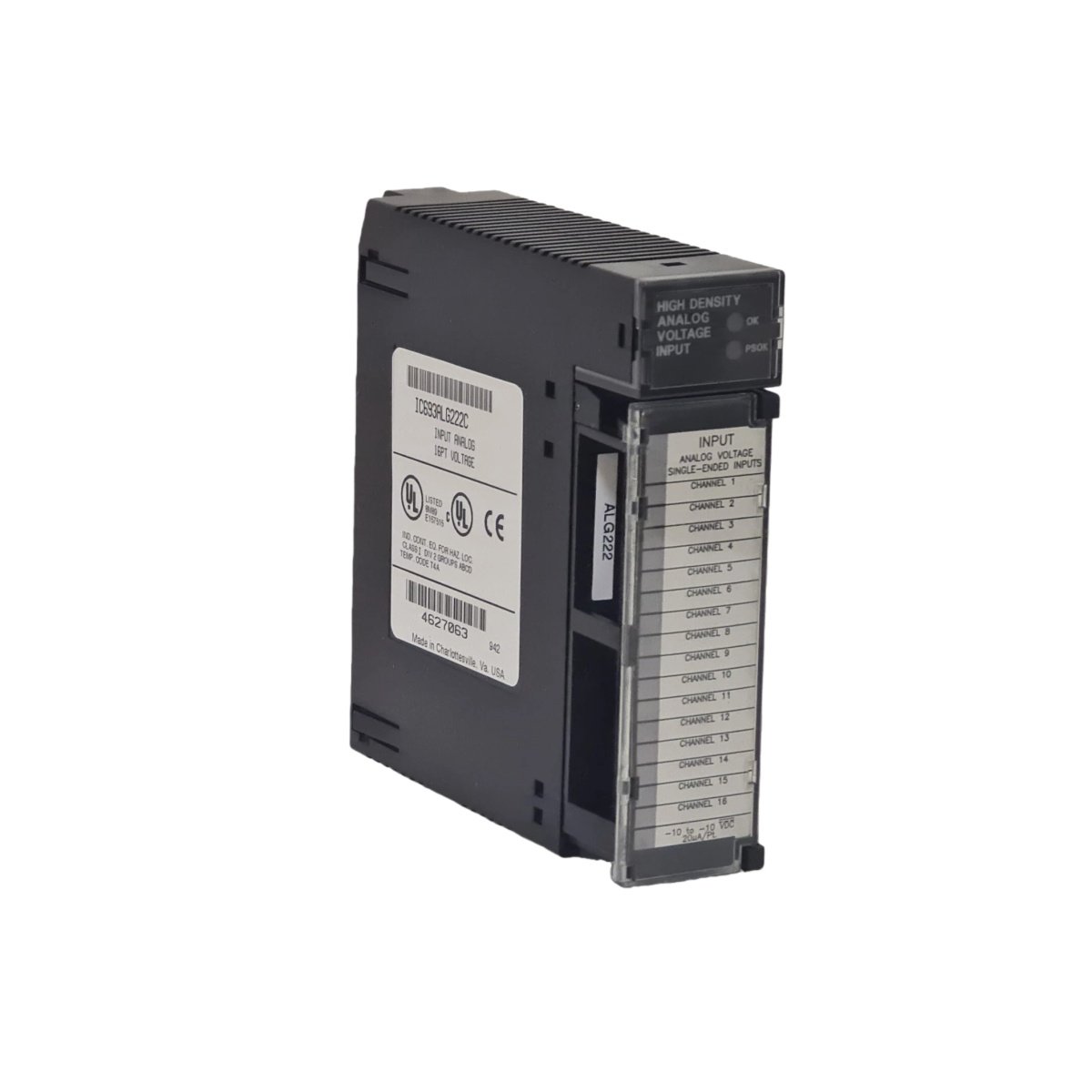

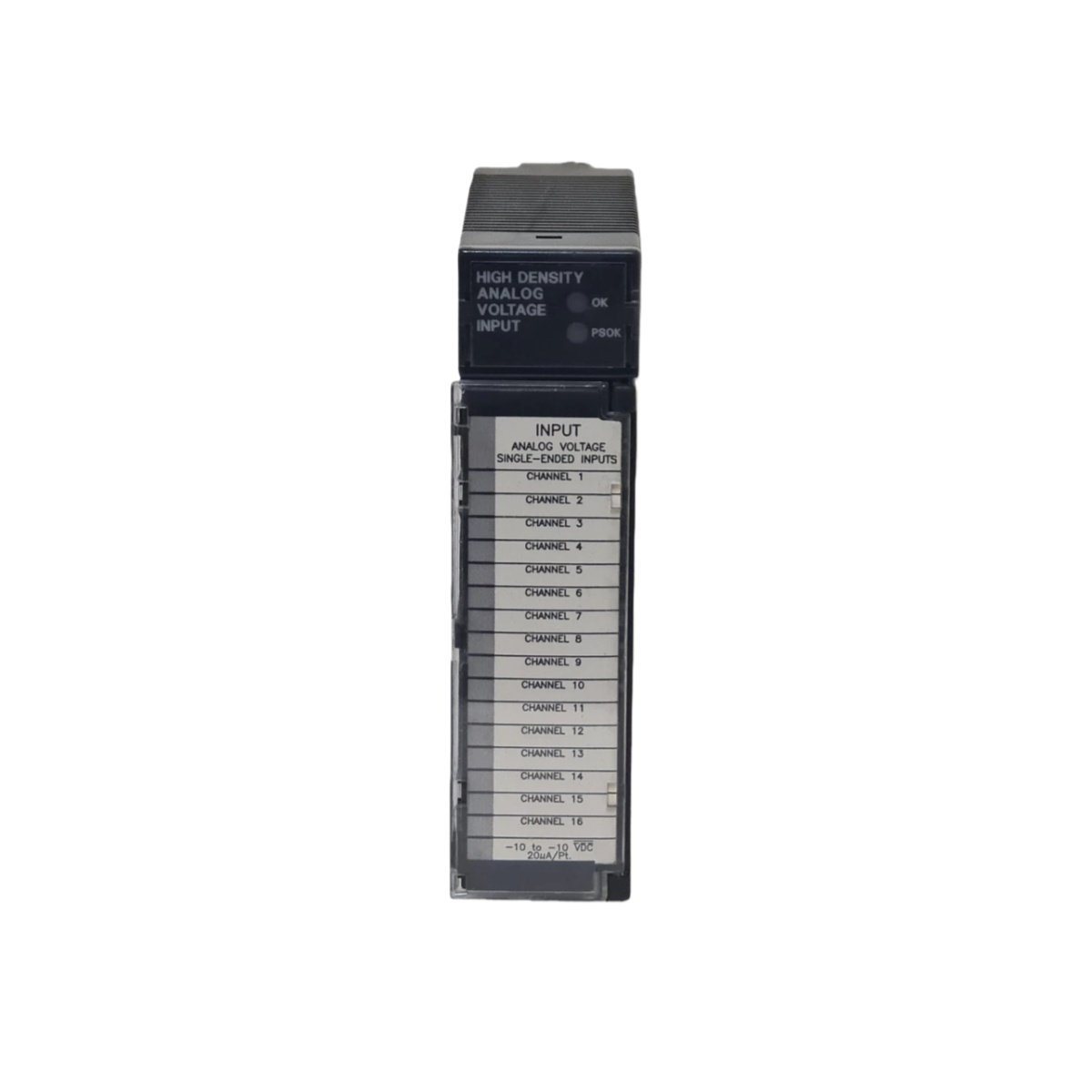

The GE Fanuc IC693ALG222 is a flexible analog input module for the Series 90-30 PLC platform. It accepts sixteen single-ended or eight differential voltage signals, providing significant I/O density. Consequently, it efficiently consolidates sensor data from temperature transmitters, potentiometers, and other voltage-based devices.
High-Speed Acquisition with Dual Ranges
This module supports both (0 to +10V) and (-10 to +10V) input ranges. It features a fast update rate, scanning all sixteen channels in approximately 13 milliseconds. Therefore, it delivers timely data for responsive process monitoring and closed-loop control applications.
Complete Technical Specifications
The table below outlines the critical operational and electrical parameters for the IC693ALG222.
| Specification | Detail |
|---|---|
| Manufacturer & Model | GE Fanuc (Emerson) IC693ALG222 |
| Product Series | Series 90-30 PLC |
| Module Type | Analog Voltage Input Module |
| Number of Channels | 16 (Single-Ended) or 8 (Differential) |
| Input Voltage Ranges | 0 to +10 VDC -10 to +10 VDC |
| Resolution (0-10V) | 2.5 mV (1 LSB) |
| Resolution (-10 to +10V) | 5 mV (1 LSB) |
| Update Time (All Channels) | 13 ms |
| Input Filter Response | 41 Hz (Single-Ended), 82 Hz (Differential) |
| Absolute Accuracy | ±0.25% of Full Scale @ 25°C |
| Isolation Rating | 1500 VAC RMS (Field to Logic) |
| Power Consumption (+5V) | 112 mA from backplane |
| Power Consumption (+24V) | 41 mA from backplane |
| Weight | 0.40 kg (0.88 lbs) |
| Status Indicators | Two Green LEDs (“Module OK”, “Power Supply OK”) |
| Product Lifecycle Status | Discontinued/Obsolete |
Designed for Reliable System Integration
The module installs into any slot on a 5-slot or 12-slot Series 90-30 baseplate. Its high 1500V isolation protects the PLC’s logic side from harmful field-side electrical noise and transients. The configurable channels allow each input to match the specific sensor type in the application.
Performance and Application Context
Engineers value the IC693ALG222 for its balance of channel count, speed, and precision in legacy systems. Its performance specifications make it suitable for monitoring analog trends and setpoints in industrial environments. Please note this module is discontinued, serving primarily for maintaining and supporting existing Series 90-30 installations.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 150 × 120 × 170 mm |
