Core Network Function and System Role

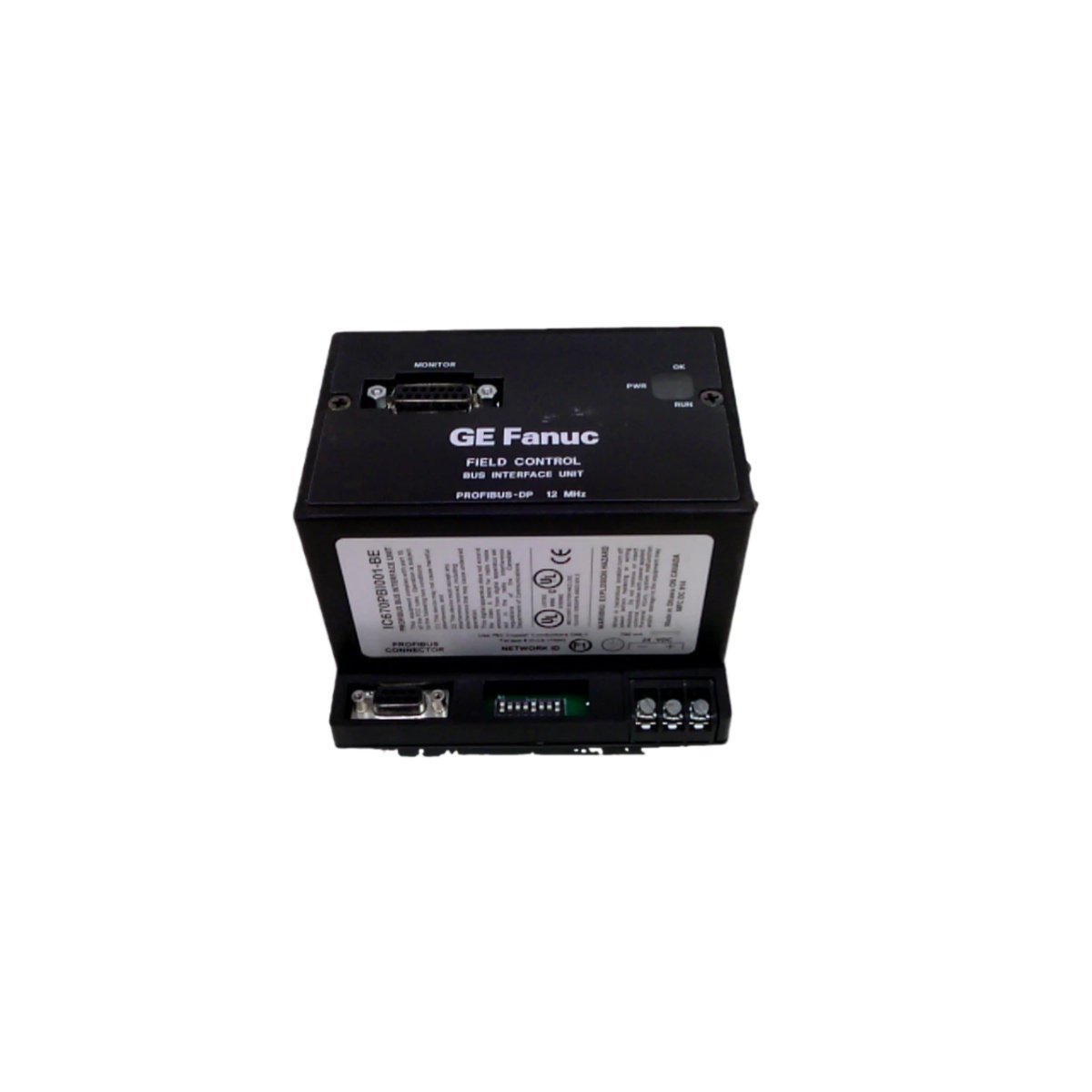

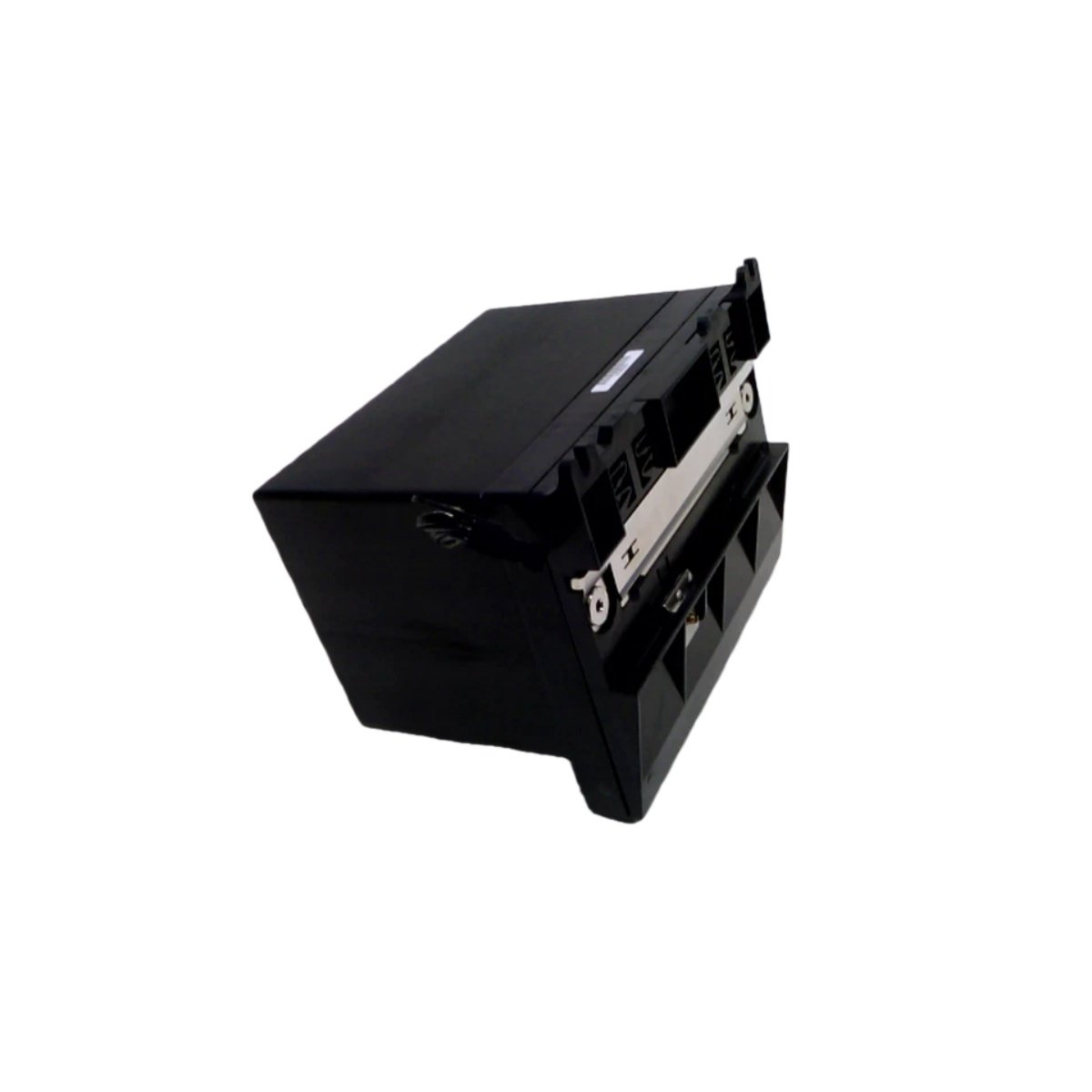

The GE Fanuc IC670PBI001-BE is a PROFIBUS Bus Interface Unit for distributed I/O systems. This module enables high-speed data exchange between a host CPU and remote Field Control I/O. It effectively implements a distributed I/O architecture via a standard PROFIBUS DP network. Consequently, it enhances system flexibility and reduces wiring complexity in industrial automation.
Key Connectivity and Configuration Features

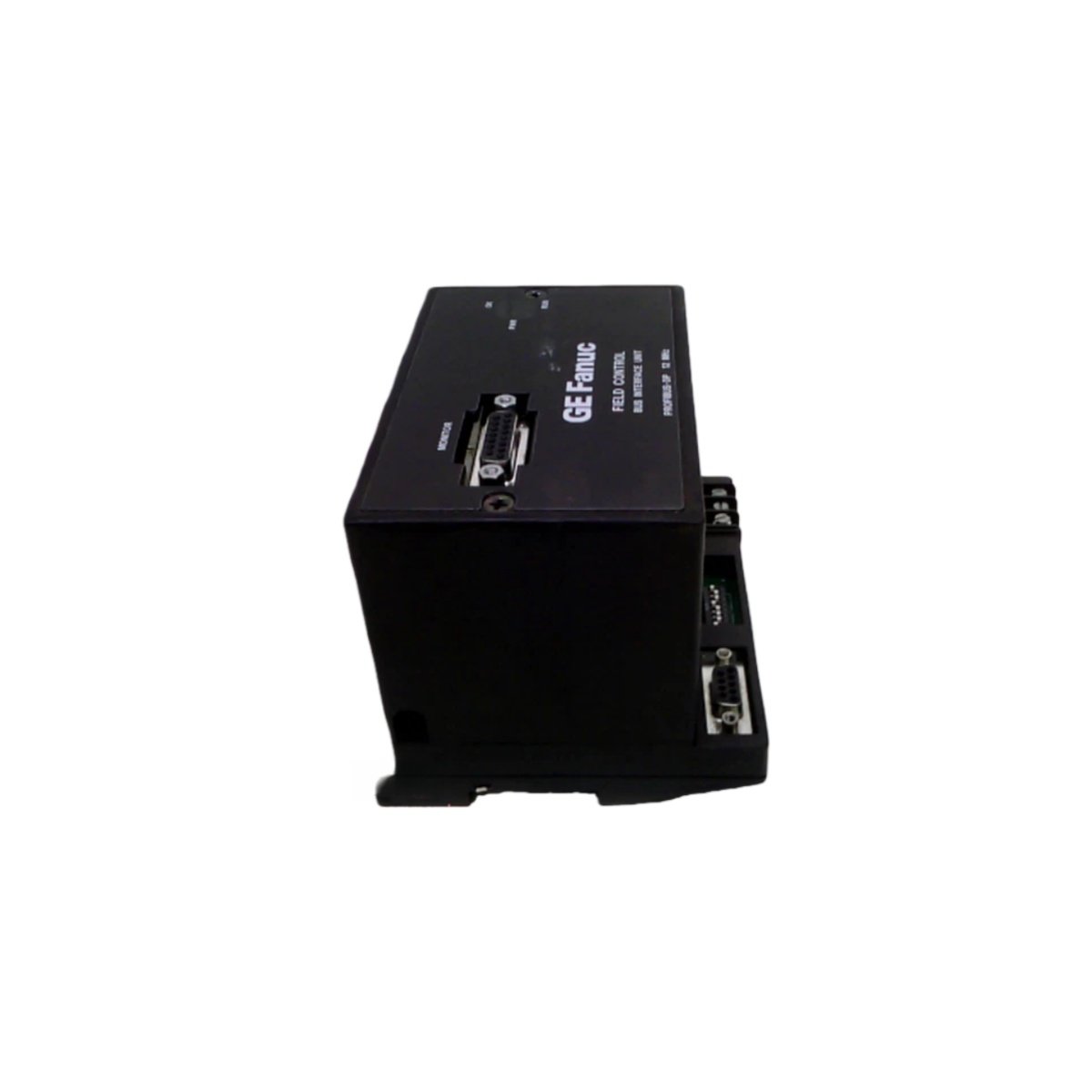

This interface unit provides two dedicated 9-pin D-sub connectors for network and programming tasks. It supports a wide range of standard PROFIBUS data transmission speeds up to 12 Mbits. An integrated array of eight DIP switches allows easy node address configuration from 00 to 32. Furthermore, it can host and manage up to eight Field Control I/O modules from a single network node.
Detailed Technical Specifications
Designed for reliable 24VDC operation, the module mounts to a dedicated Bus Interface Unit terminal block. This design facilitates both DIN rail and panel mounting in control enclosures. The following table summarizes its critical technical and operational parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | GE Fanuc / Field Control |
| Product Model | IC670PBI001-BE |
| Product Type | PROFIBUS Bus Interface Unit (BIU) |
| Rated Input Voltage | 24 V DC |
| Operating Voltage Range | 18 – 30 V DC |
| Input Power / Dissipation | 7.7 Watts / 4.45 Watts |
| Holdup Time | 10 ms (maximum) |
| PROFIBUS Port | 1 x 9-pin D-sub connector |
| Programmer (HHP) Port | 1 x 9-pin D-sub connector |
| Supported I/O Modules | Up to 8 Field Control modules |
| PROFIBUS Topology | Linear Bus / Daisy-Chain |
| Max Stations per Segment | 32 |
| Transmission Speeds | 9.6 Kbit/s to 12 Mbit/s |
| Address Configuration | 8-position DIP Switch (Address 00-32) |
| Status Indicators (LEDs) | PWR, RUN, OK |
| Network Medium | Shielded Twisted Pair (e.g., Belden #9463) |
| Ambient Operating Temp | 0°C to 55°C |
| MTBF (Reliability) | 180,000 hours |
| Weight | 1.38 lbs (0.62 kg) |
| Mounting | DIN Rail or Panel via BIU Terminal Block |
Installation and Operational Notes
Connect the module to a stable 18-30 VDC power source via the BIU terminal block. Use shielded twisted-pair cable, terminated correctly, for the PROFIBUS network connection. The Hand-Held Programmer port enables direct configuration, diagnostics, and program upload/download. The IC670PBI001-BE is a key component for building scalable and robust GE Fanuc control systems.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
