Module Overview

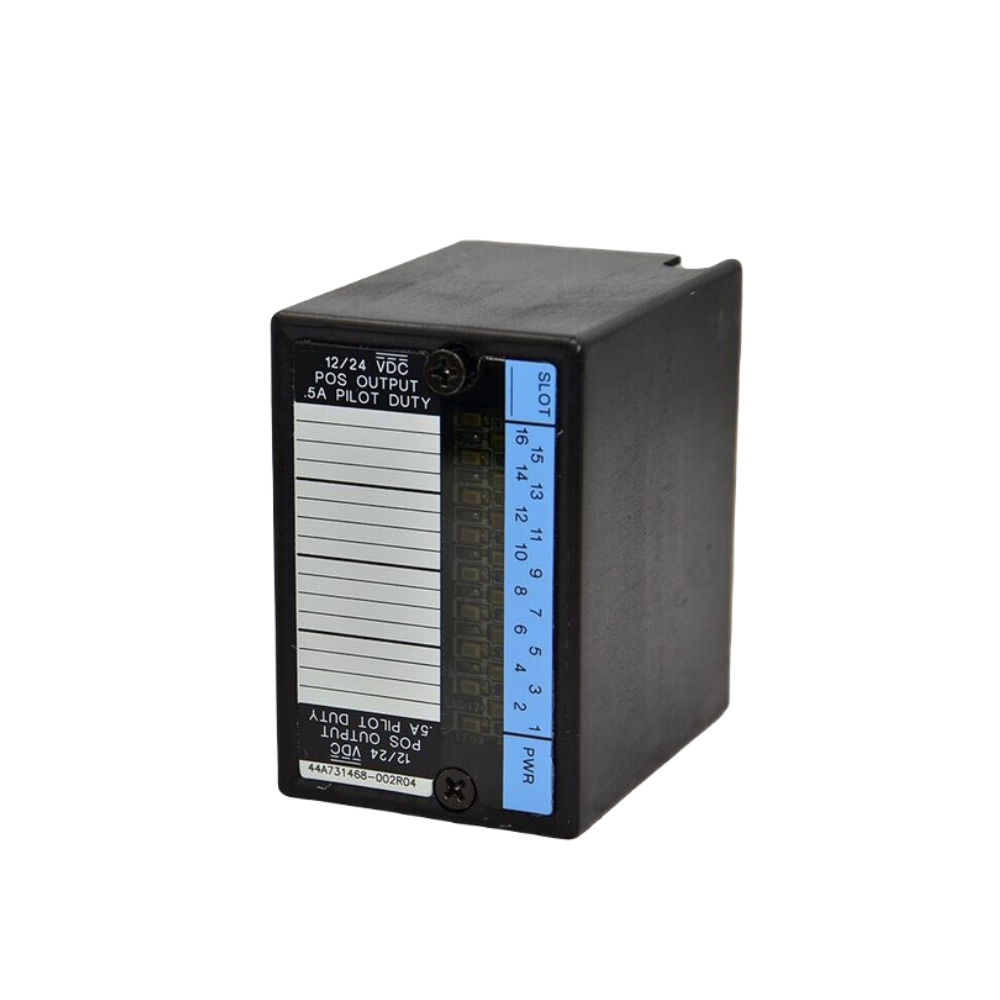

The GE Fanuc IC670MDL740J is a 16-point 12/24 VDC positive logic output module, designed for dependable operation in Field Control systems. It delivers efficient signal switching for industrial automation processes, offering fast response times and excellent electrical isolation. Moreover, the module’s diagnostic LEDs simplify maintenance by clearly displaying output status, blown fuses, and low supply voltage conditions. Built with precision and rugged design, it performs reliably in both light-duty and high-current industrial environments.
Functional Advantages
The IC670MDL740J ensures high output accuracy and minimal downtime during operation.
Key benefits include:
16 isolated output points for flexible field device control.
Wide voltage range from 9.2 VDC to 29.5 VDC for stable operation.
Fast switching capability of 200 microseconds (ON/OFF) at 0.5 A resistive load.
LED status indicators for every output point and fault condition.
Built-in fuse protection (5A, 250V slow-acting) common to all outputs.
250 VAC continuous isolation between logic and user circuits.
Compact, modular design for efficient panel integration.
Therefore, this output module is an ideal choice for engineers needing fast, protected, and reliable digital control across various GE Fanuc Field Control setups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC670MDL740J |
| Type | 12/24 VDC Positive Logic Output Module |
| Outputs per Module | 16 |
| Output Voltage Range | 9.2–29.5 VDC |
| Nominal Voltage | 24 VDC |
| Max Output Current (per point) | 0.5 A |
| Max Output Current (per module) | 4 A |
| Bus Current Draw | 111 mA |
| Response Time (ON/OFF) | 200 µs (0.5A resistive load) |
| Fuse Rating | 5A, 250V, Slow-Acting (common fuse) |
| Isolation | 250 VAC continuous, 1500 VAC for 1 minute |
| Voltage Drop (Output) | 0.5 V maximum |
| Leakage Current | 0.5 mA at 30 VDC |
| Inrush Current | 2A max for 100 ms |
| Mounting Type | Field Control System Baseplate |
| Indicators | Output ON/OFF, Blown Fuse, Low Supply Voltage |
In addition, the IC670MDL740J maintains strong electrical noise immunity and is engineered to meet the demanding requirements of process automation and machine control environments.
Typical Applications
The GE Fanuc IC670MDL740J is widely deployed in industrial control systems that require reliable DC output switching.
Typical applications include:
Motor starters, solenoids, and indicator lamps in manufacturing plants.
PLC-based field I/O expansion for GE Fanuc Field Control systems.
Packaging, material handling, and process equipment control.
Power distribution and monitoring systems requiring isolated DC outputs.
Moreover, its modular nature allows seamless integration with existing GE Series 90 or VersaMax platforms, improving flexibility and long-term scalability.
Details
| Weight | 0.454 kg |
|---|
