Overview

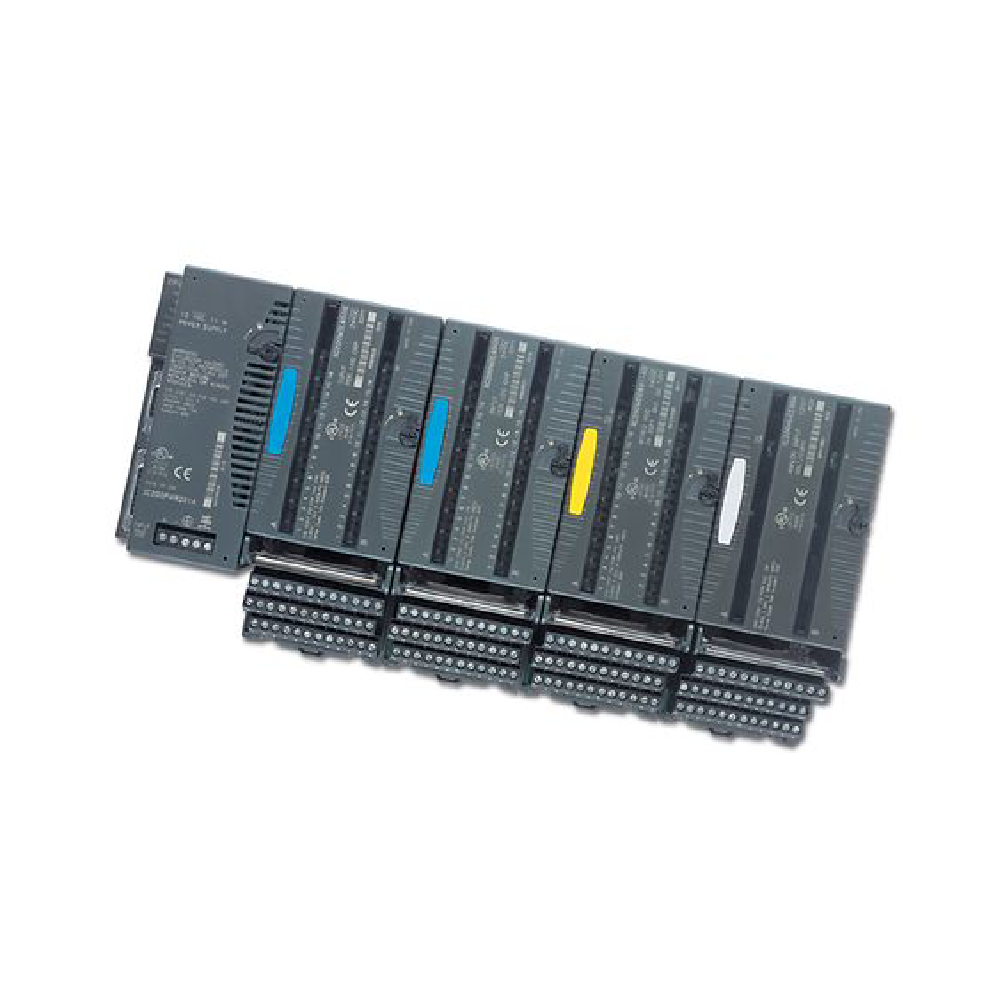

The IC200CHS002 I/O carrier box, originally from GE Fanuc and currently under Emerson Automation, offers a durable and modular solution for mounting and wiring VersaMax I/O modules. It simplifies installation and maintenance while ensuring secure backplane communication.
By combining compact design with clear labeling and keyed module slots, this carrier box enables precise alignment of modules and allows efficient servicing without dismantling wiring.
Key Features
- Efficient Module Servicing: Replace or maintain I/O modules without disconnecting field wiring.
- Keyed Configuration: Embedded keying dials prevent incorrect module installation.
- Backplane Connectivity: Carrier mating connectors ensure reliable communication with VersaMax racks.
- Transparent Door: Easily insert labels for module identification and system documentation.
- Versatile Compatibility: Works with 32-point I/O modules and high-density devices within the VersaMax family.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | GE Fanuc (Former) / Emerson Automation (Current) |
| Series | VersaMax |
| Product Type | Box-style terminal I/O carrier |
| Dimensions | Height: 133.4 mm (5.25 in), Length: 66.8 mm (2.63 in) |
| Terminals | 36 terminals (A1-A18, B1-B18) |
| Wire Compatibility | Single Wire: 0.36–2.1 mm²; Dual Wire: up to 0.86 mm² |
| Voltage Rating | 0–264 VAC |
| Transient Voltage Rating | Up to 300 VAC |
| Current Ratings | Per Point: 2 A; Per Power/Ground: 8 A |
| Terminal Torque | 0.37–0.45 lbf·ft |
| Mounting | DIN Rail, Horizontal Orientation |
| Mounting Clearance | Top/Bottom: 2 in (5.1 cm); Side: 1 in (2.54 cm) |
Revision & Compatibility List
| Revision Part # | Also Known As |
|---|---|
| IC200CHS002A | IC200CHS002-A, Series A, Rev A |
| IC200CHS002B | IC200CHS002-B, Series B, Rev B |
| IC200CHS002C | IC200CHS002-C, Series C, Rev C |
| IC200CHS002E | IC200CHS002-E, Series E, Rev E |
| IC200CHS002G | IC200CHS002-G, Series G, Rev G |
| IC200CHS002H | IC200CHS002-H, Series H, Rev H |
| IC200CHS002J | IC200CHS002-J, Series J, Rev J |
| IC200CHS002K | IC200CHS002-K, Series K, Rev K |
| IC200CHS002L | IC200CHS002-L, Series L, Rev L |
| IC200CHS002M | IC200CHS002-M, Series M, Rev M |
| IC200CHS002P | IC200CHS002-P, Series P, Rev P |
| IC200CHS002Q | IC200CHS002-Q, Series Q, Rev Q |
Applications
- Industrial Automation: Provides reliable backplane communication for VersaMax I/O modules.
- Field Wiring Management: Supports organized wiring and easy connection to field devices.
- Service-Friendly Design: Facilitates quick maintenance and module replacement without system downtime.
- VersaMax Systems: Ideal for 32-point modules and high-density I/O devices in VersaMax control systems.
FAQ
Q1: Which modules are compatible with IC200CHS002?
A1: It works with 32-point I/O modules and high-density devices in the VersaMax family.
Q2: Can I replace modules without disconnecting wiring?
A2: Yes, the carrier box design allows module servicing without dismantling field wiring.
Q3: What wiring sizes does it support?
A3: Single wires from 0.36–2.1 mm² and dual wires up to 0.86 mm².
Q4: How should I mount the carrier box?
A4: Mount it horizontally on a DIN rail with at least 2 inches clearance top/bottom and 1 inch on the sides.
Details
| Weight | 0.3 kg |
|---|
