Core Function and Industry Application

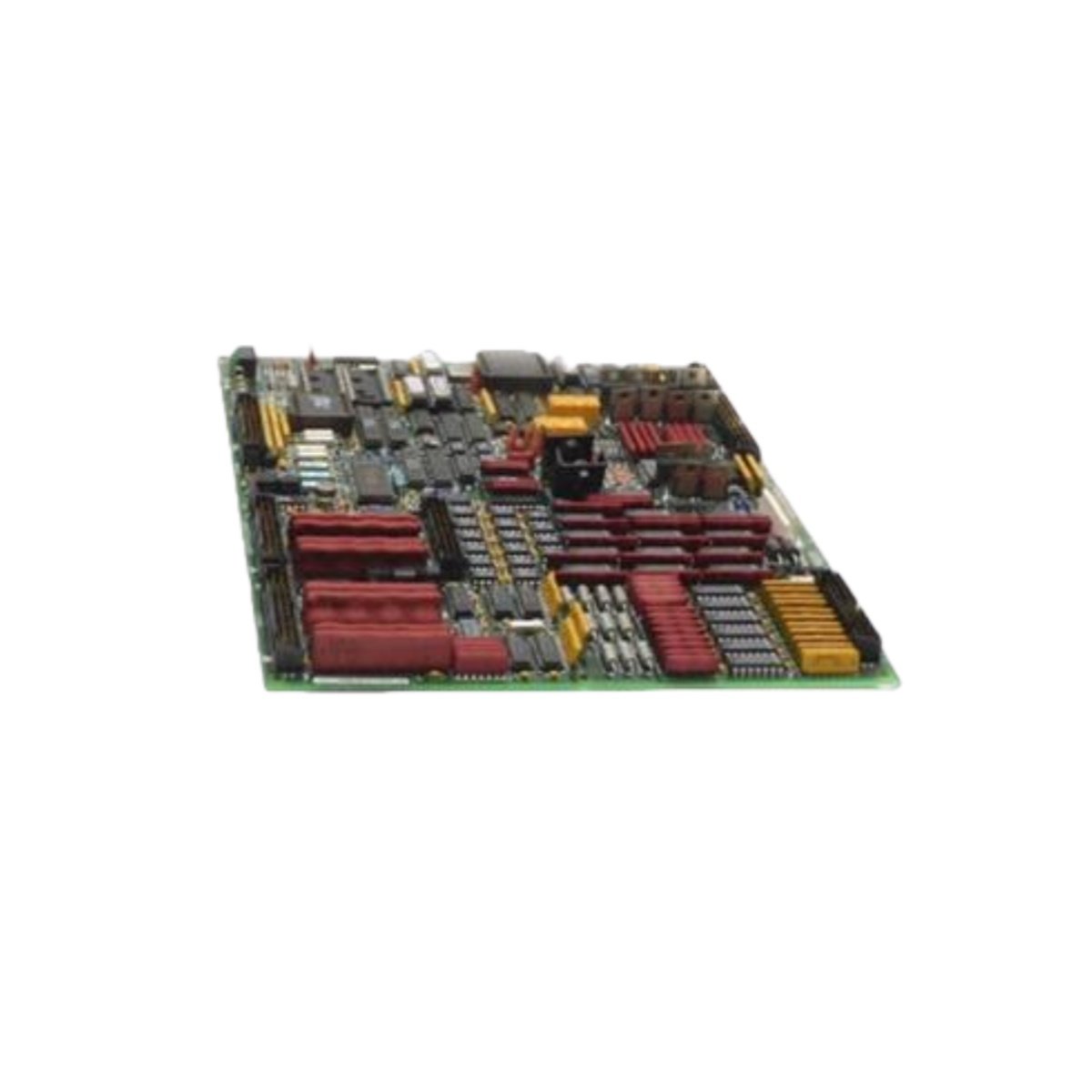

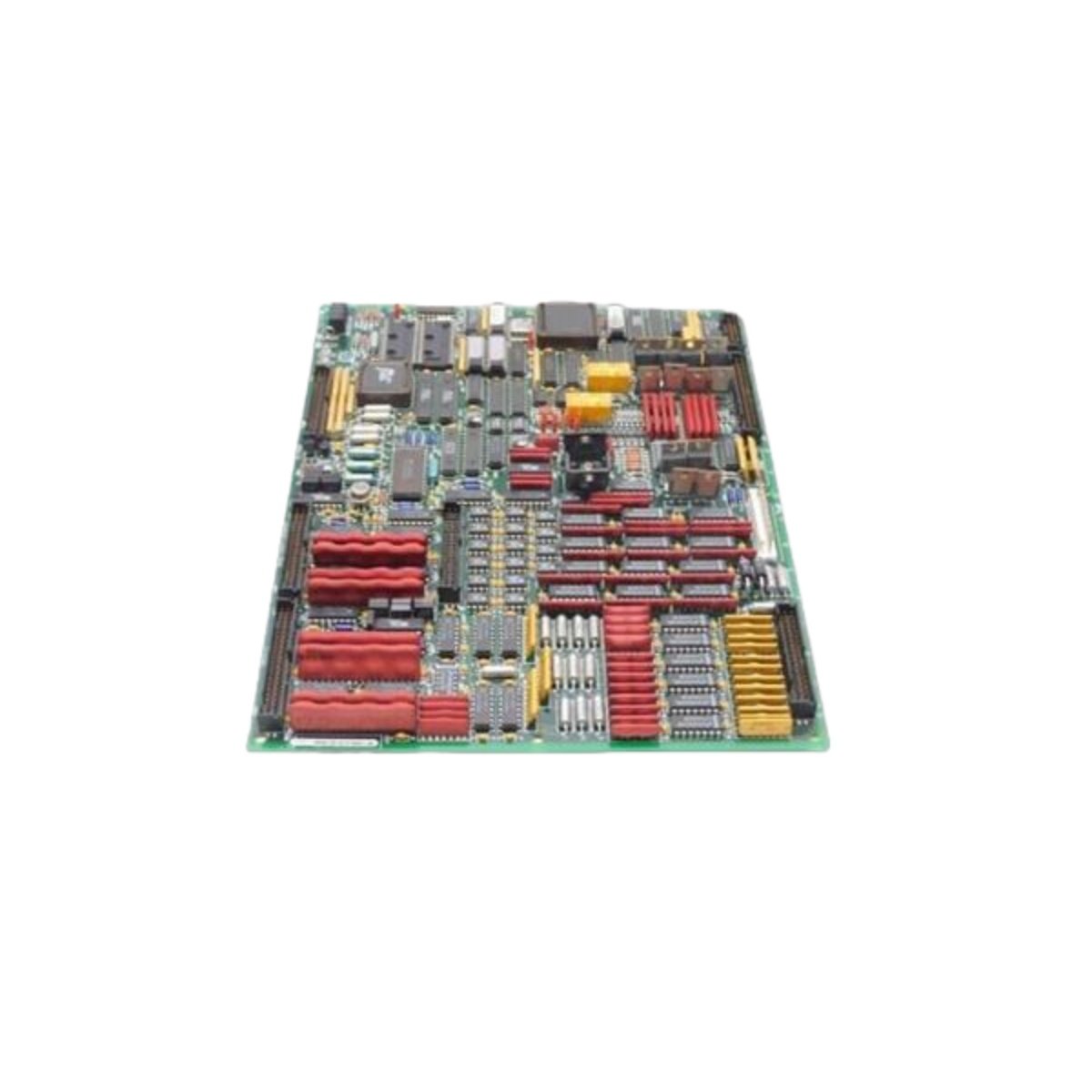

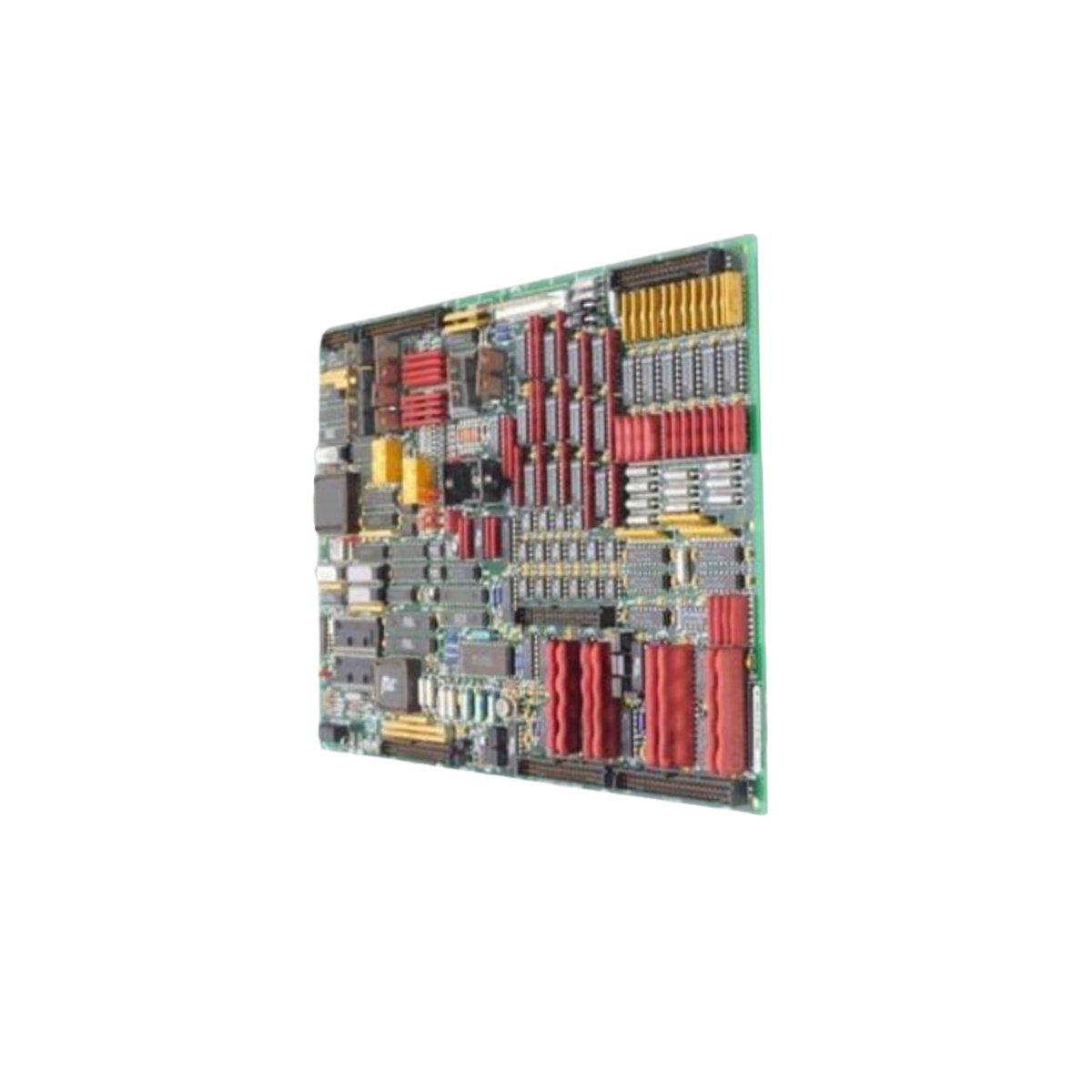

The GE Fanuc DS3800NGDD1C1B is a specialized VersaMax Micro PLC module. It delivers robust computational power and control logic for industrial automation tasks. This unit excels specifically in construction equipment and pipe measuring systems. Consequently, it provides precise control and measurement for demanding field applications.
Dedicated Pipe Measurement Capabilities
This module accurately measures pipe lengths within a range of 4 to 28 feet. Its integrated display clearly shows measurements in feet, inches, and fractional inches. Operators can also input desired pipe lengths directly via the module’s interface. Furthermore, four high-speed counters process encoder data for real-time, accurate calculations.
Key Features and Technical Specifications
Designed for versatility, the DS3800NGDD1C1B supports connectivity for various sensors and actuators. It includes a user-friendly operator interface terminal for monitoring and control. The following table details its core technical and functional specifications.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | GE Fanuc / VersaMax |
| Product Model | DS3800NGDD1C1B |
| Module Type | Micro Programmable Logic Controller (PLC) |
| Total I/O Points | 14-point capacity |
| Key Function | Pipe Measurement & Control |
| Measurement Range | 4 to 28 feet |
| Display Units | Feet, Inches, Fractions of Inches |
| High-Speed Counters | 4 built-in counters |
| Encoder Interface | Yes, for precise measurement input |
| Operator Interface | Integrated terminal for input & monitoring |
| Primary Industry | Construction Equipment |
System Integration and Operational Use
Integrate the encoder directly with the module’s dedicated interface for measurement input. The high-speed counters then ensure rapid and reliable data processing. This GE Fanuc VersaMax PLC simplifies complex measurement tasks into an automated process. Therefore, it enhances productivity and accuracy in pipe fabrication and handling systems.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
