A Versatile Component for Legacy Drive Control

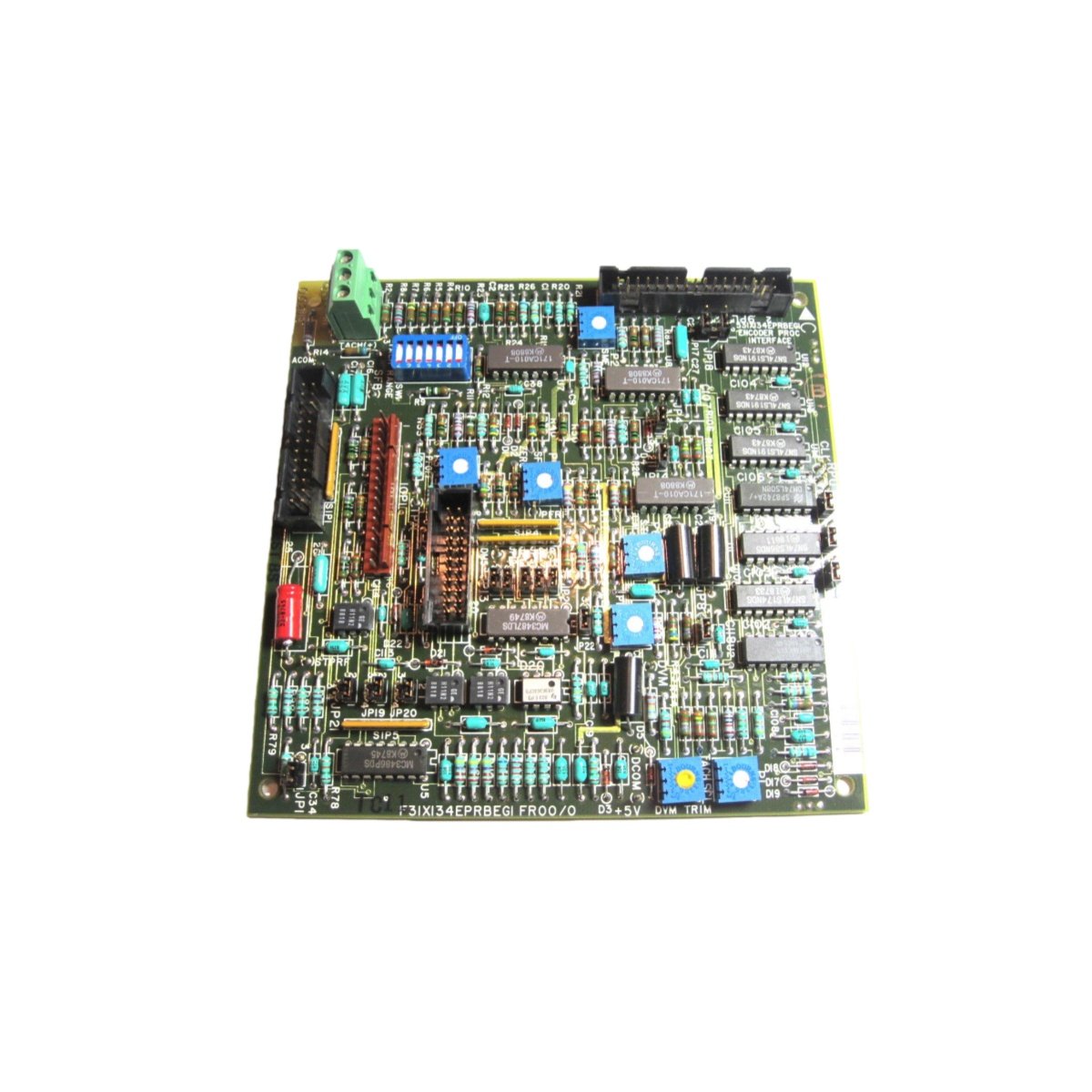

The GE F31X134EPRBEG1 is a flexible Encoder Process Board manufactured by General Electric. This board serves multiple general-purpose drive systems, such as the classic DC-300 drive. While these systems are now often considered legacy, they were renowned for their robust power and adaptability.
Detailed Technical Specifications and Design
Engineered for precise motor feedback management, the GE F31X134EPRBEG1 facilitates critical speed control functions. Its technical parameters ensure reliable integration into compatible drive enclosures.
| Parameter Category | Detailed Specification |
|---|---|
| Manufacturer & Model | General Electric (GE) F31X134EPRBEG1 |
| Secondary Board Number | 531X134EPRBEG1 |
| Product Category | Encoder Process Board (PCB) |
| Compatible Series | GE 531X Series, designed for DC-300 and similar drives |
| Key Interface | One (1) three-screw terminal strip (Terminals: 1 TB-1, 1 TB-2, 1 TB-3) |
| Primary Function | Motor speed monitoring and PI-tachometer scale adjustment |
| Board Identification Marking | FR00/0 |
Core Functionality for Motor Speed Monitoring
This PCB provides essential encoder signal processing for drive systems. The dedicated three-screw terminal strip enables direct motor speed monitoring. Technicians typically connect a voltmeter between terminals 1 TB-1 and 1 TB-3 to obtain a precise speed reading.
Configuration and System Calibration
Furthermore, the GE F31X134EPRBEG1 allows for accurate system calibration. Engineers use the same terminal strip to adjust the PI-tachometer feedback scale. This process is crucial for calibrating the signal to represent exactly 50% of the actual motor speed.
Supporting Legacy Industrial Automation
As part of the versatile GE 531X series, this board helps maintain operational continuity for older drive systems. Its non-system-specific design offers a reliable repair and maintenance solution. Therefore, the F31X134EPRBEG1 remains valuable for extending the lifecycle of proven industrial equipment.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 150 × 120 × 170 mm |
