Product Overview and Protocol Support

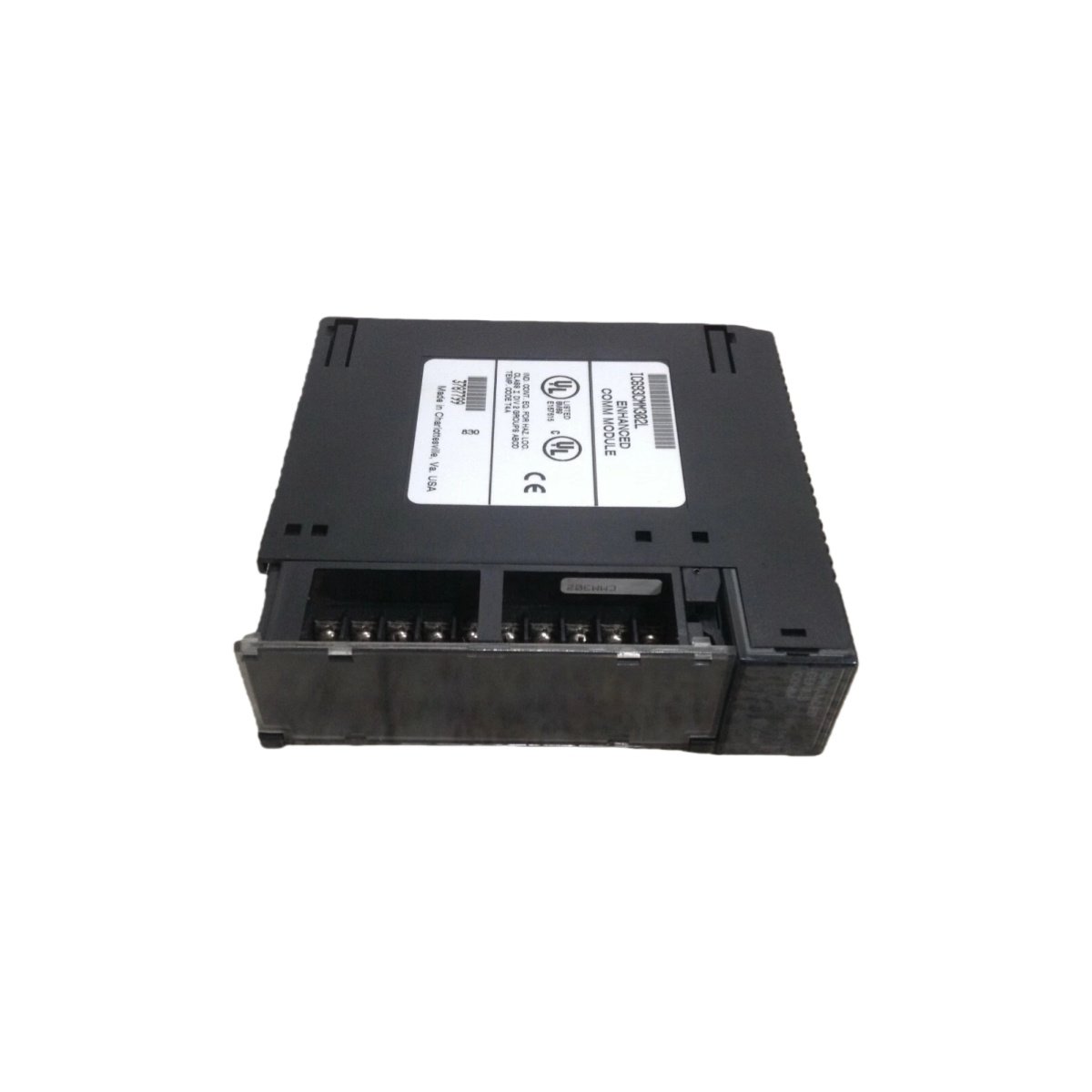

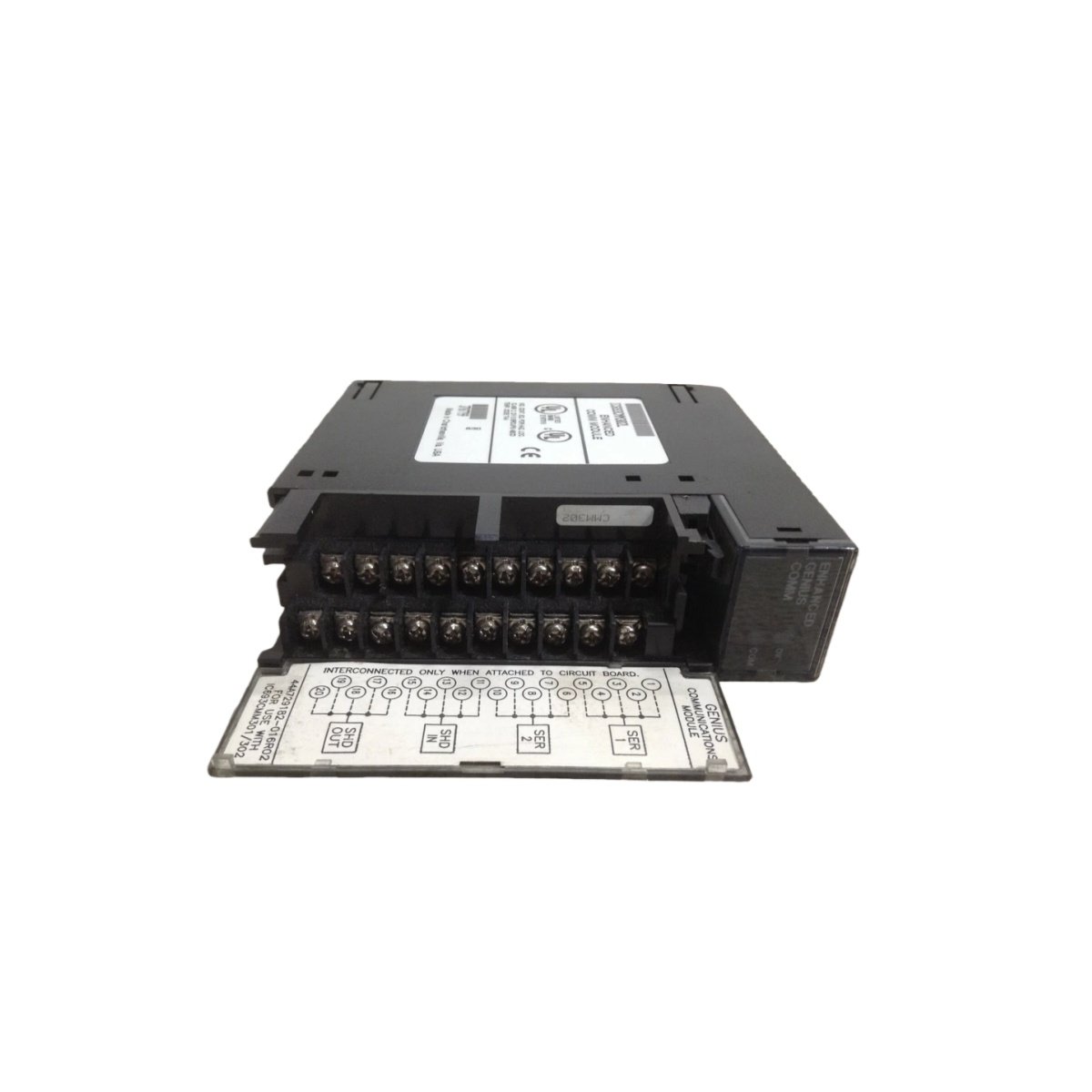

The IC693CMM302 is an enhanced Genius communications module for the Series 90-30 PLC platform. This unit, formerly from GE Fanuc and now under Emerson Automation, implements a distributed I/O architecture. It efficiently supports data exchange with up to 31 devices on a single Genius bus network.

Core Technical Specifications and Capabilities

This single-slot module provides robust connectivity and specific data handling features for industrial control.

Key Specifications:

• Compatible System: Series 90-30 Programmable Logic Controller

• Maximum Supported Devices: 31 per module

• Global Data Length: 128 bytes Transmit / 128 bytes Receive

• Supported Registers: %G, %I, %Q, %AI, %AQ, %R

• Backplane Power: <300 mA at 5VDC

• Weight: 0.88 lbs (0.40 kg)

• Slot Width: Single Slot (any slot except CPU)

• Diagnostic LEDs: OK and COM status indicators

Integration and Environmental Ratings

You can install the IC693CMM302 on any CPU, expansion, or remote baseplate within the Series 90-30 system. Furthermore, each controller can typically accommodate two of these modules for expanded network capacity. It operates reliably in industrial environments with a temperature range of 0°C to 60°C and 5% to 95% non-condensing humidity.

Advanced Functions and Compatibility

Beyond basic data exchange, the module enables advanced monitoring via a PC or Genius Hand-Held Monitor (HHM). It also facilitates device communication, I/O emulation, and software-based diagnostics. The IC693CMM302 maintains compatibility with Series 90-70 and Series Six PLCs, ensuring versatile application across legacy systems.
