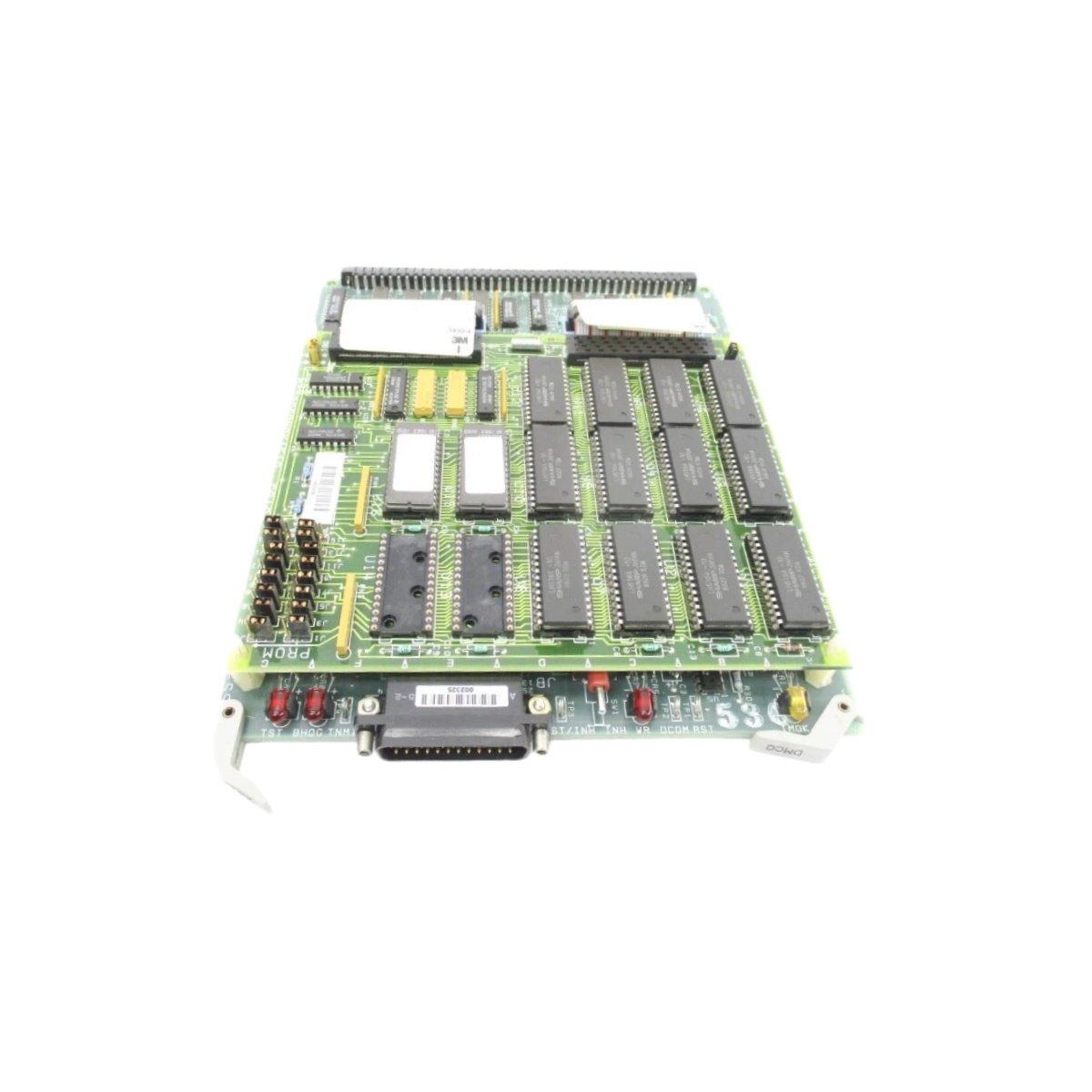

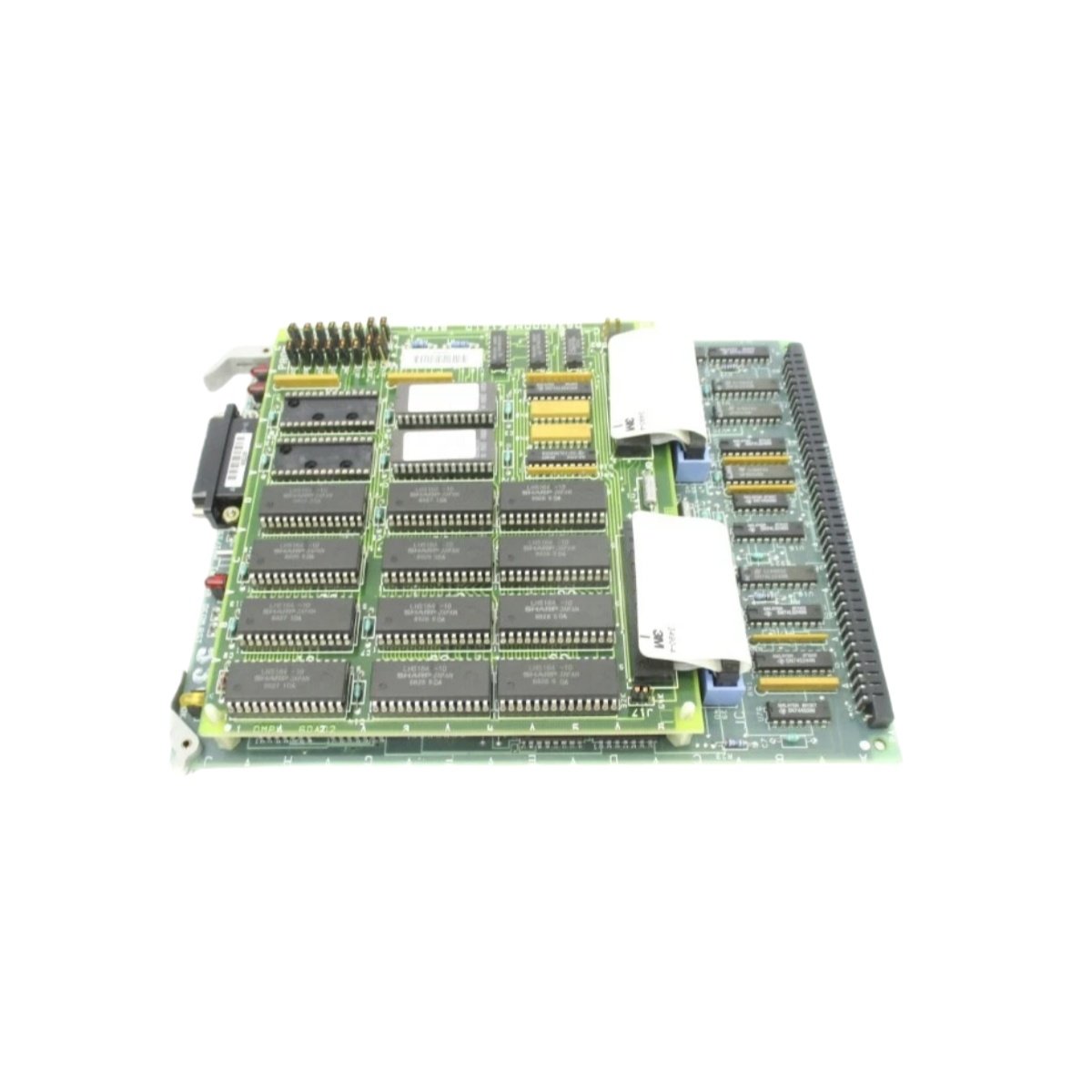

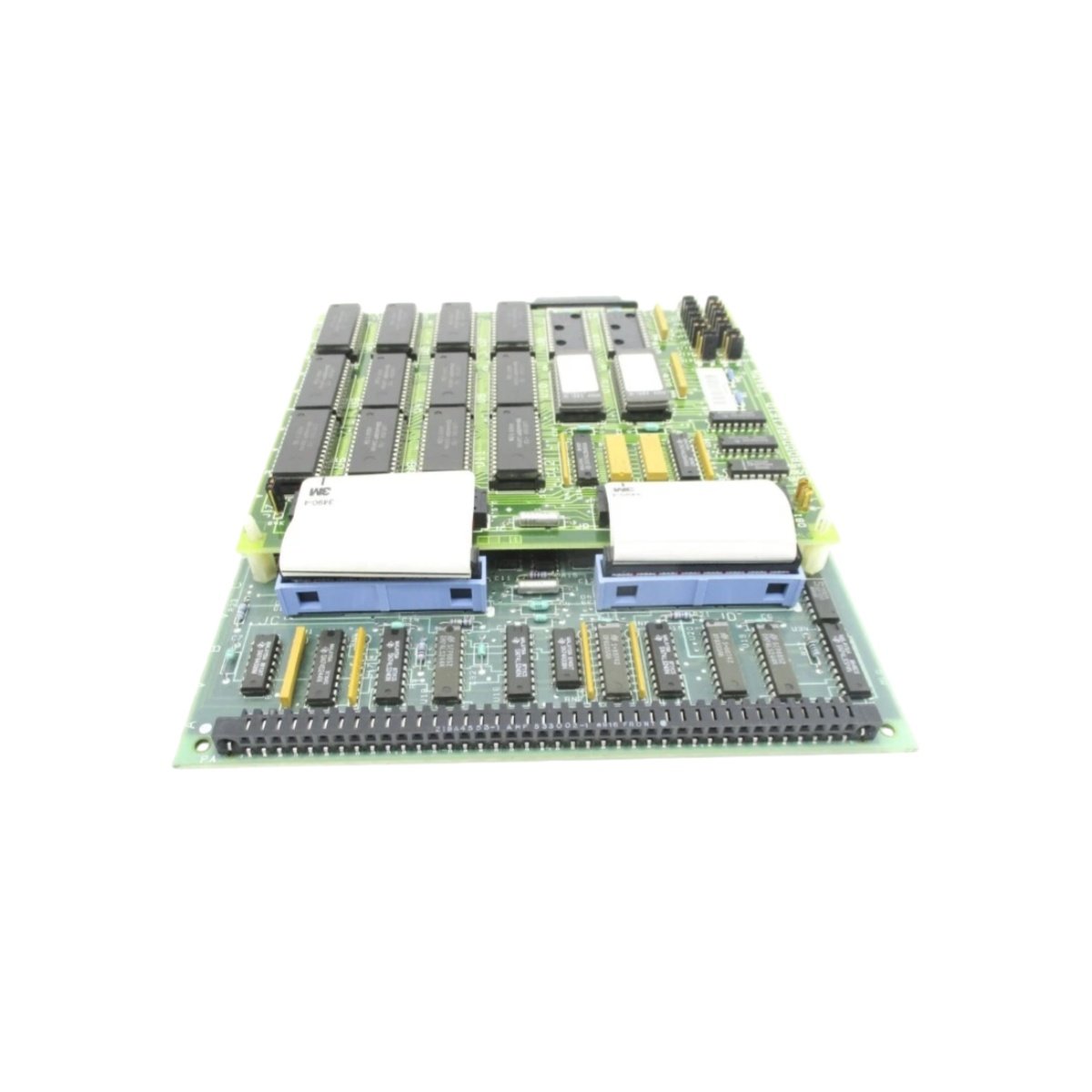

The GE DS3800HMPK1F1B functions as a critical printed circuit board within the General Electric Mark V series. Specifically, this board operates as a key component in the Speedtronic turbine control system. We source this module directly from reliable channels to ensure authenticity for your industrial applications. This particular PCB interfaces seamlessly with other rack-mounted modules to manage vital turbine operations.
Key Technical Specifications and Hardware Design
Understanding the physical and electrical parameters of the GE DS3800HMPK1F1B is essential for proper integration. This board features a robust construction designed for the rigors of industrial environments. Below, we outline its core specifications for clarity.
| Specification | Details |
|---|---|
| Product Type | Printed Circuit Board (PCB) / I/O Module |
| Manufacturer | General Electric (GE) |
| Series | Mark VI / Mark V Speedtronic |
| Board Dimensions | Approx. 12.0 in (height) x 3.5 in (depth) – Standard VME Form Factor |
| Mounting Style | Rack-mountable via front panel with ejector handles |
| Primary Interfaces | Multiple 50-pin & 20-pin front-panel connectors for I/O wiring |
| Key Components | Onboard microprocessor, volatile memory, dedicated control logic |
| Component Count | Over 500 surface-mount resistors and capacitors for signal conditioning |
| Total Weight | Approximately 1.5 kg (3.3 lbs) |
Componentry, Memory, and Interface Details
This module’s functionality relies heavily on its sophisticated component layout and memory architecture. The GE DS3800HMPK1F1B uses a high-density component arrangement to maximize processing power in a compact space.
Processor: It utilizes a high-speed main processor dedicated to executing turbine control algorithms.
Memory: The board includes both SRAM and Flash memory. Importantly, a lithium battery backup sustains the SRAM contents during power-down periods.
Connectivity: The front panel provides clear access to all I/O channels. Furthermore, the board communicates with the rack backplane through a proprietary interface connector.
Status Indicators: Multiple LED indicators on the front panel offer immediate visual confirmation of operational status and fault conditions.
Practical Applications in Turbine Control
The GE DS3800HMPK1F1B serves a vital role in managing and protecting heavy-duty gas and steam turbines. It processes input signals from various sensors and executes commands from the main turbine controller.
Signal Processing: It primarily handles analog and digital input signals related to temperature, pressure, and speed.
System Integration: The board works in conjunction with other modules like the IS200AEBMG1AFB to provide comprehensive turbine protection and control.
Operational Role: Consequently, this PCB ensures precise fuel metering and sequencing during turbine startup and shutdown. This direct control loop is fundamental to safe and efficient power generation.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
