Product Overview

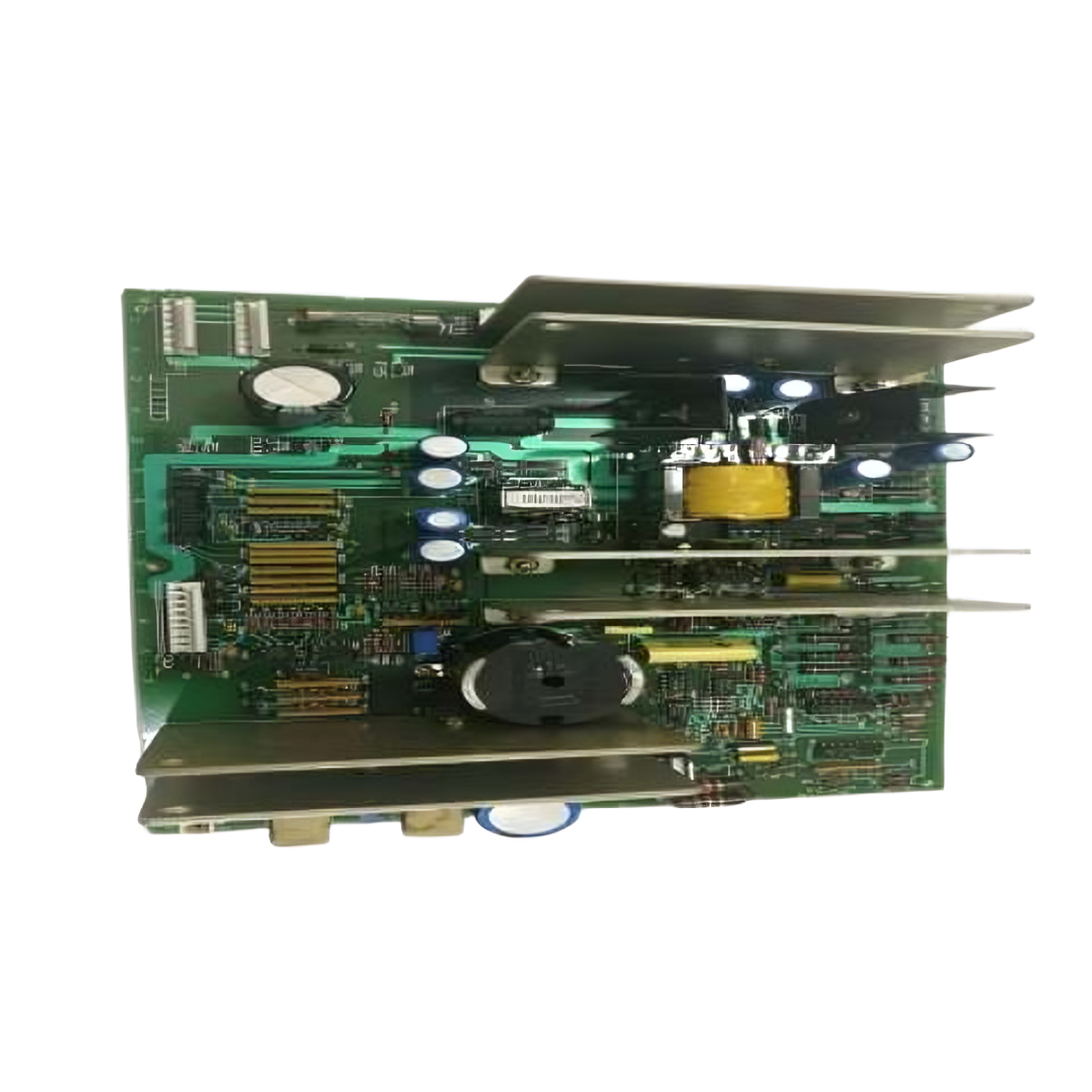

The DS215UCIBG3AZZ01A is a circuit board designed for GE Mark V Speedtronic control systems.
It serves gas and steam turbine applications, supporting either triple modular redundant (TMR) or Simplex configurations.
Although GE no longer produces Mark V units, tested and reconditioned DS215UCIBG3AZZ01A boards are available with an extended warranty.

Key Features and Functions

• Core Motherboard: Interfaces with uGENI boards, host CPU auxiliary, and flash disk.
• High Processing Power: Contains 196 microprocessors for precise DLE gas fuel pressure conversions from TCSA boards.
• Robust Connectivity: Equipped with male/female connectors, plugs, and headers for seamless integration.
• Stability Components: Includes resistors, diodes, capacitors, and voltage-limiting elements.

Operational Details

• Jumper Switch: Enables or disables the board clock; removing it sets factory testing mode.
• Protective Coating: Standard Mark V coating ensures durability and reliability.

Technical Specifications

Additional Information

• Model Breakdown: “DS215” = Mark V series compatibility; “UCIB” = circuit interface board; “G3” = group three; “AZZ01A” = product revision and optional software package.
• Installation Guidance: Refer to GE data sheets and user manuals for safe and optimal performance.

This board is essential for turbine control systems that require precise data conversion, robust network connectivity, and long-term operational reliability.
