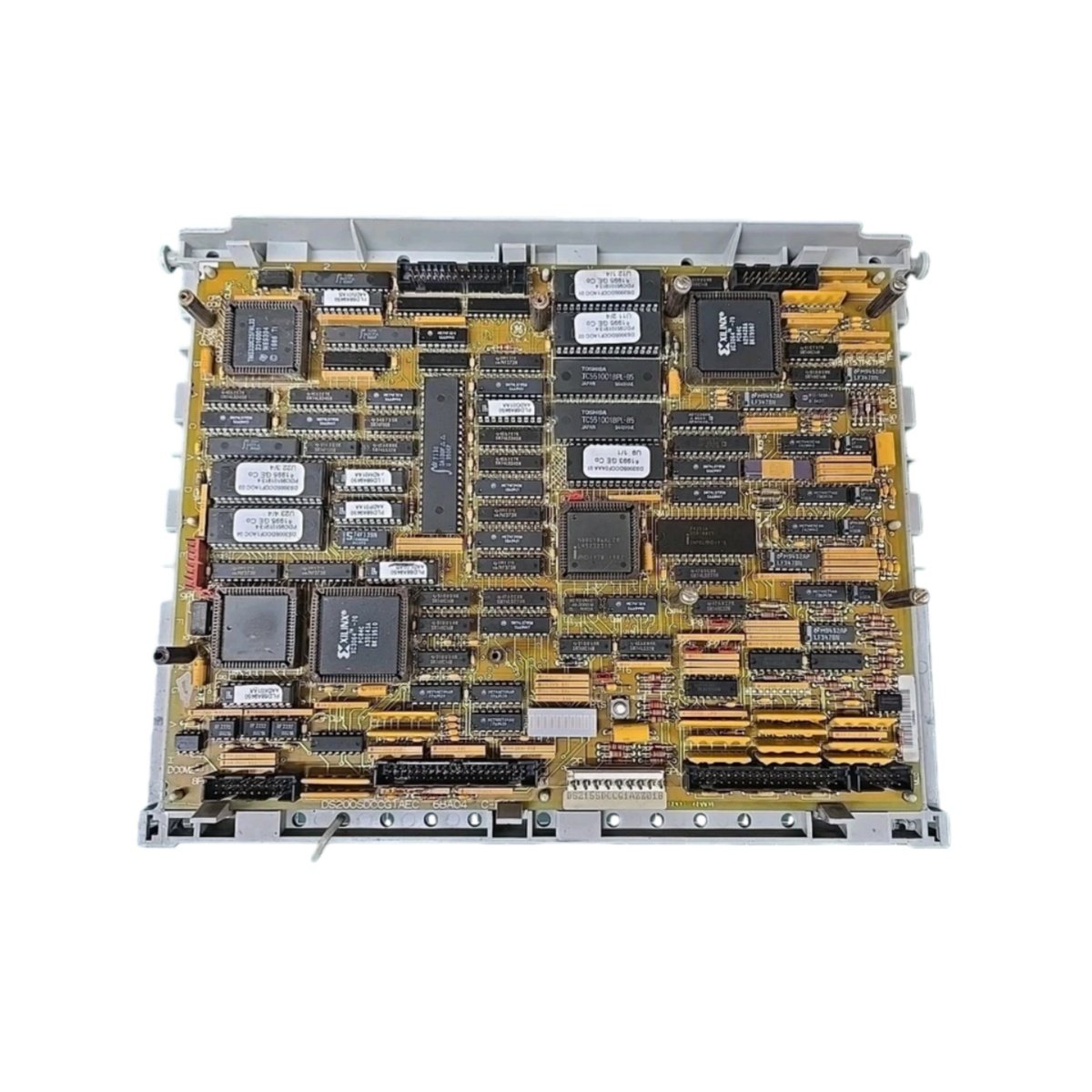

Industrial drive systems need reliable network communication. The GE DS215SLCCG1AZZ01B DS200SLCCG1AEG delivers stable data exchange between drives and controllers. This board functions as a LAN communication interface for GE drive systems. It supports both DS200SLCCG1AEG and similar backplane configurations.
Technical Specifications & Dimensions
This board handles high-speed data transfer across factory networks. The table below outlines its core technical parameters.
| Parameter | Specification |
|---|---|
| Communication Protocol | Ethernet TCP/IP |
| Physical Interface | 10Base-T / 100Base-TX |
| Connector Type | RJ45 shielded |
| Logic Supply | 5V DC from backplane |
| Current Consumption | 400 mA typical |
| Data Rate | 10/100 Mbps auto-sensing |
| Isolation | 1500V RMS magnetic |
| Unit Weight | 0.35 kg (0.77 lbs) |
| Board Dimensions | 210 x 160 x 20 mm |
| Number of Components | 1 processor + 2 transceivers + 4 capacitors |
Construction and Interface Layout
This board features a multi-layer PCB with conformal coating protection. Such a design guards against moisture and industrial contaminants. Furthermore, the GE DS215SLCCG1AZZ01B DS200SLCCG1AEG provides one RJ45 Ethernet port on the front panel. You will also find LED indicators for link and activity status. The board includes a 64-pin connector for backplane communication. Two diagnostic LEDs show power and board health conditions.
Energy Storage and Data Handling
Unlike simple adapter cards, this LAN board includes buffer memory for data packets. The board uses a 32 KB SRAM chip for temporary message storage. Consequently, the GE DS200SLCCG1AEG prevents data loss during network congestion. A dedicated processor handles all TCP/IP stack operations independently. This processor offloads communication tasks from the main drive controller. The board does not require battery backup for normal operation.
Installation and Mounting Requirements
Installing the GE DS215SLCCG1AZZ01B DS200SLCCG1AEG requires careful alignment with the card cage. The board slides into a dedicated slot within the drive cabinet. It also locks securely with injector/ejector handles at both ends. Always disconnect main power before inserting or removing this board. The unit uses passive cooling through natural convection. This design eliminates fan noise and mechanical failures. The board occupies a single slot in the rack.
Integration with Drive Control Systems
This LAN board works seamlessly with GE DC2000 and AC drive systems. It enables remote monitoring and configuration via standard Ethernet networks. Operators can access drive parameters from a central control room. The GE DS215SLCCG1AZZ01B DS200SLCCG1AEG also supports firmware updates through the network connection. Consequently, this board remains essential for modern drive networking. The unit delivers consistent performance across a 0°C to 50°C temperature range.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
