Functional Role and System Application

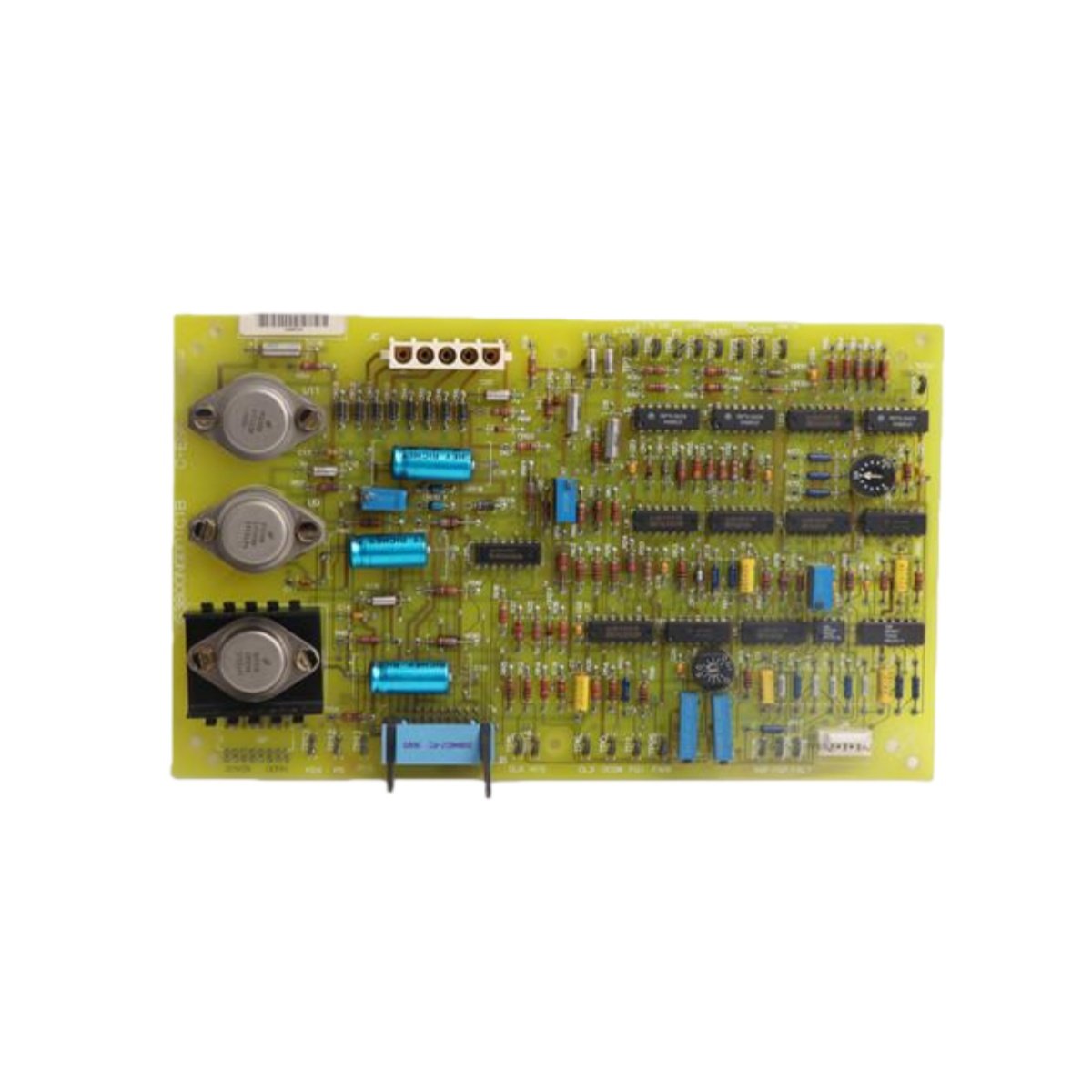

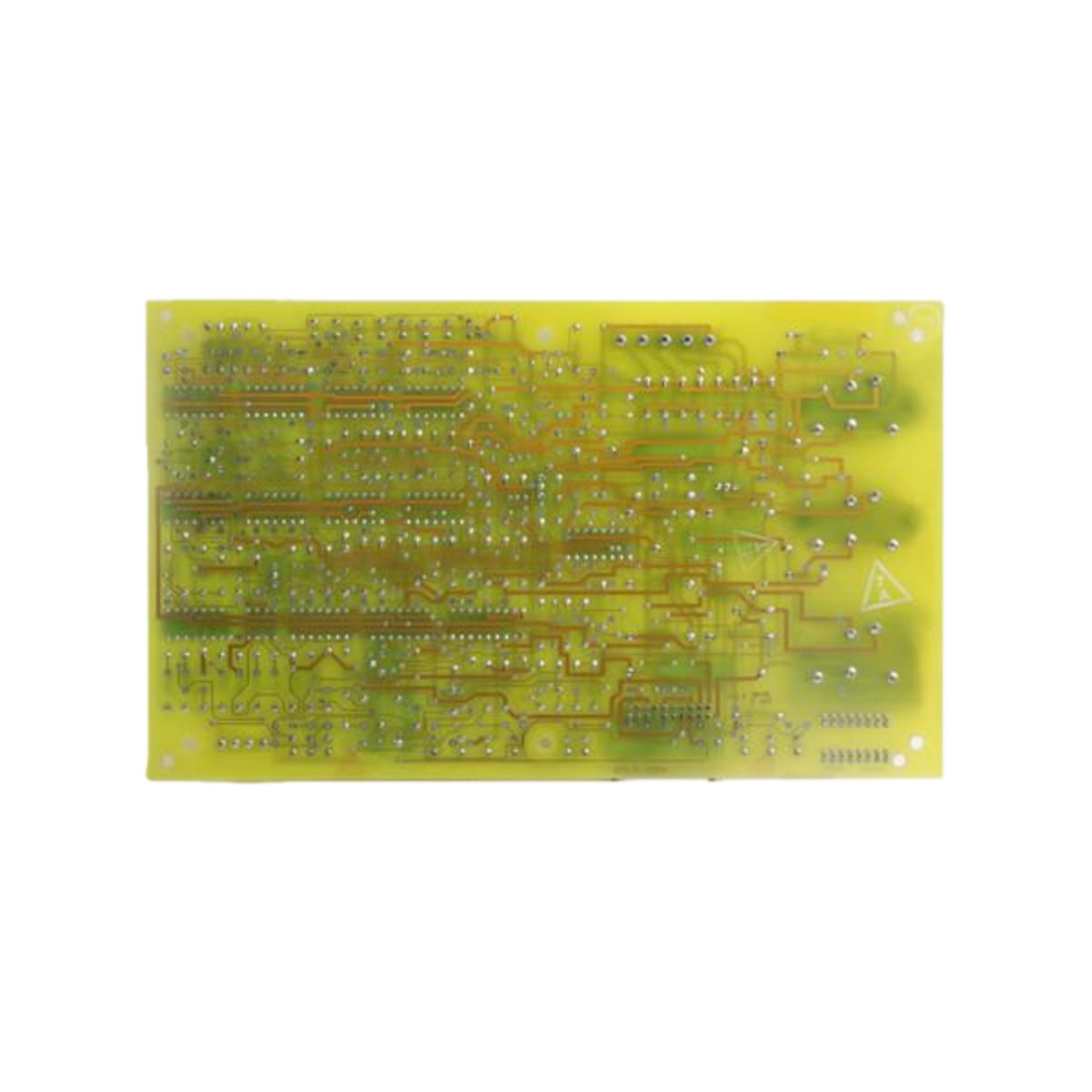

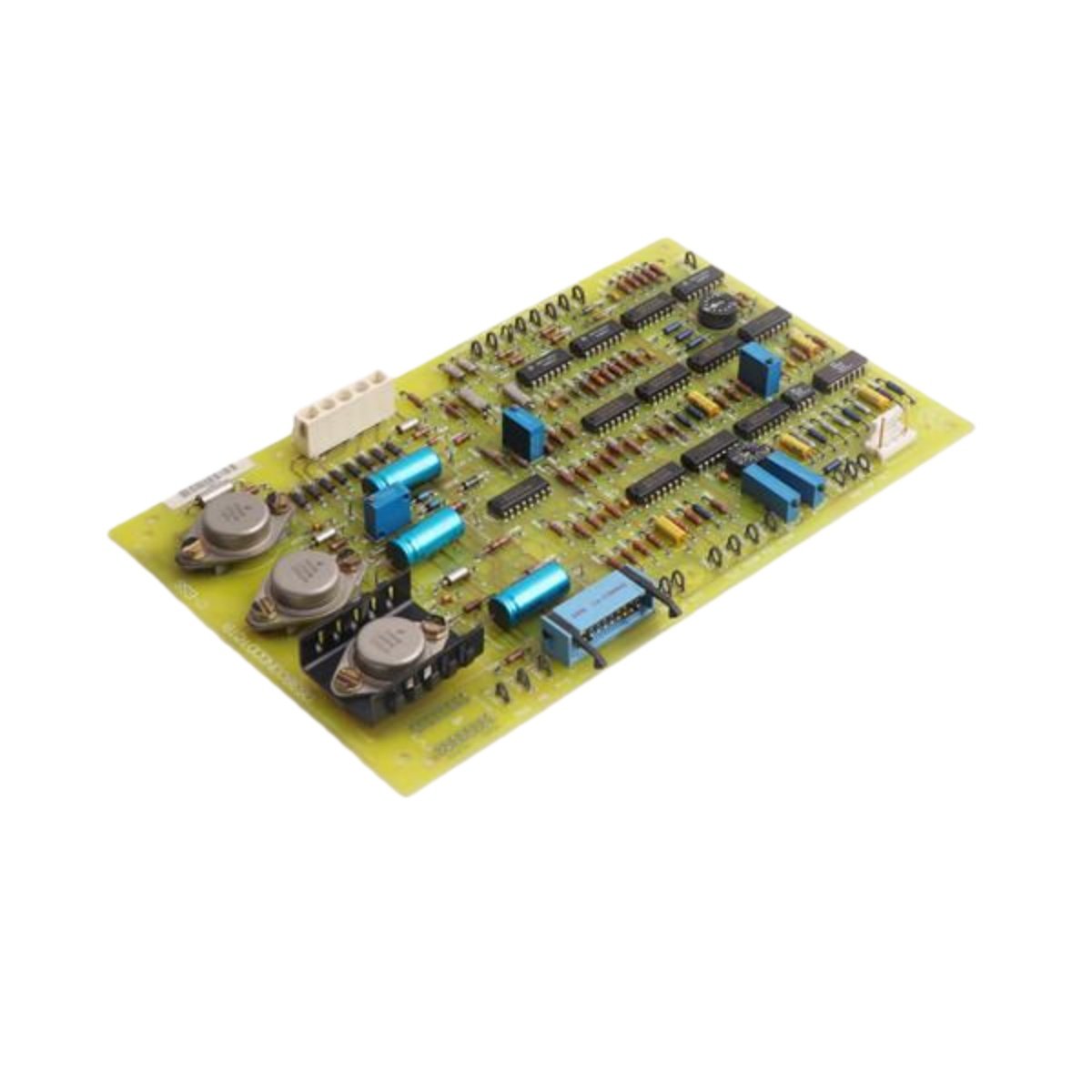

The GE DS200TCQAG1BGE is an Analog Input/Output (I/O) printed circuit board. It serves a critical role within the General Electric Mark V Series turbine control system. This board manages analog signal processing for gas, steam, and wind turbine drive assemblies. Consequently, it ensures precise control and monitoring of vital turbine operational parameters.
Product Evolution and Design Context
This specific model represents a revised version of the original DS200TCQAG1 board. The DS200TCQAG1BGE incorporates three significant product revisions for improved performance. These updates enhance the board’s reliability and functionality in demanding control environments. Therefore, it is an essential upgrade or replacement component for legacy systems.
Technical Specifications and Physical Details
As a core component of the Mark V system, this PCB is designed for industrial durability. Its specifications ensure compatibility and reliable operation within the turbine control cabinet. The following table details its key identification and system parameters.
| Parameter | Specification |
|---|---|
| Manufacturer / Series | General Electric (GE) Mark V |
| Product Model | DS200TCQAG1BGE |
| Board Type | Printed Circuit Board (PCB) |
| Functional Description | Analog Input/Output (I/O) Board |
| Parent Model | DS200TCQAG1 |
| Revision Level | BGE (Indicates three major revisions) |
| Primary System | Mark V Turbine Control System |
| Application | Gas, Steam, and Wind Turbine Control |
Integration and Compatibility Notes
Always verify system compatibility before installing the DS200TCQAG1BGE board. It is designed as a direct successor to the earlier DS200TCQAG1 model within the same rack slot. For optimal performance, source this component from suppliers specializing in GE Mark V system parts. Proper handling and static discharge prevention are crucial during installation.
Details
| Weight | 0.52 kg |
|---|---|
| Dimensions | 130 × 95 × 40 mm |
