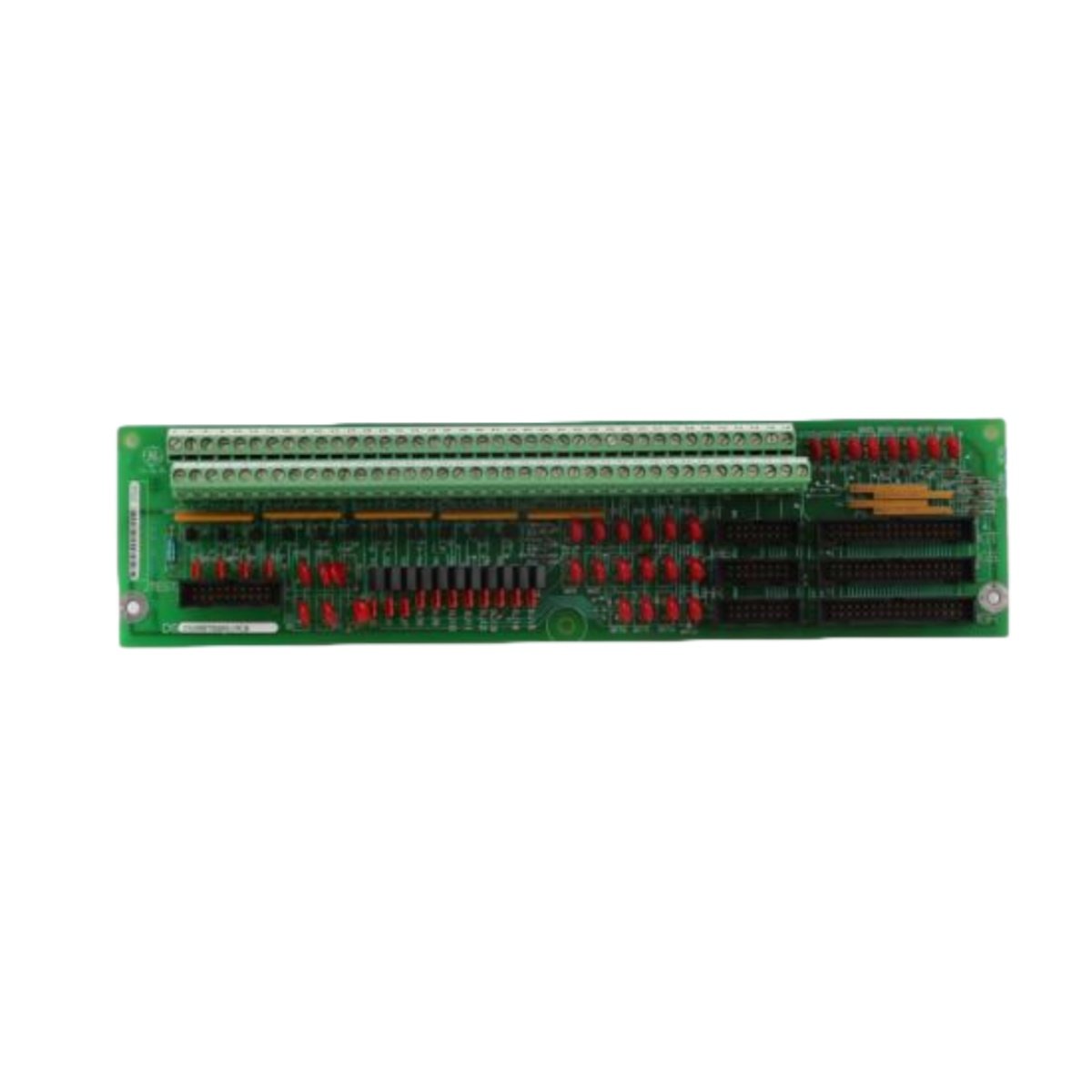

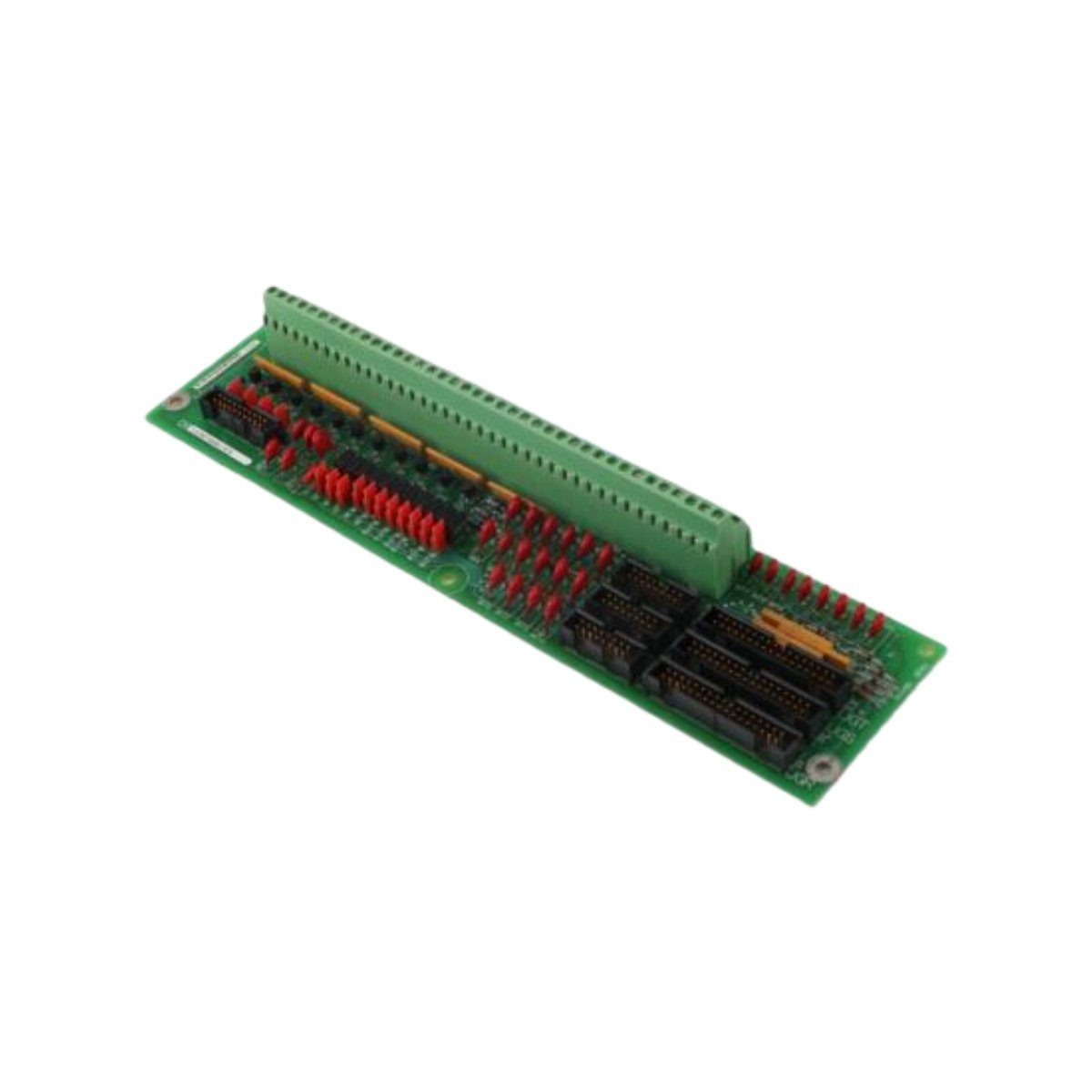

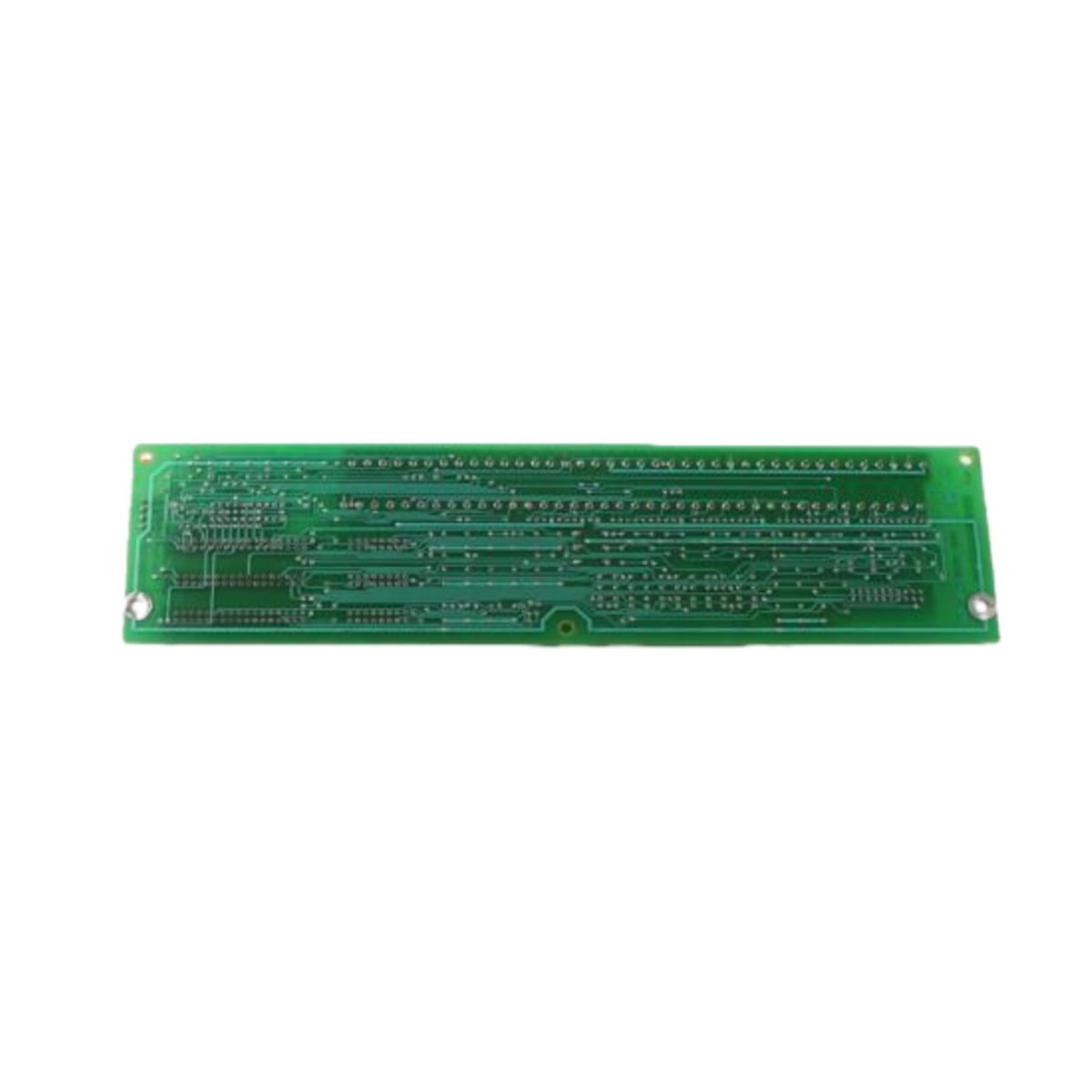

The GE DS200TBQBG1ACB serves as a dedicated input termination module within the Drive Systems platform. This critical component provides the physical interface for field wiring to connect with the control system. Moreover, it ensures signal integrity and offers convenient points for measurement and testing.

Core Function and Electrical Interface Role

This module terminates incoming signal wires from sensors, switches, or other field devices. It typically includes terminal blocks, fuses, and signal conditioning circuits. Consequently, it protects sensitive downstream electronics from voltage spikes and wiring errors.

Detailed Technical Specifications

The DS200TBQBG1ACB is engineered for reliability and ease of maintenance in industrial settings. Below are its definitive technical parameters for system integration.

Technical Specifications:

• Manufacturer & Model: GE DS200TBQBG1ACB

• Product Series: GE Drive Systems (e.g., associated with Speed Variants)

• Category: Input Termination Board / Interface Module

• Primary Function: Terminates and conditions digital or analog input signals

• Form Factor: Industrial-grade printed circuit board for chassis mounting

• Dimensions: Designed to fit specific drive or control system enclosures

• Weight: Optimized for structural support and heat dissipation

• Electrical Interface: Removable screw terminal blocks for field wiring

• Signal Channels: Supports multiple isolated input channels

• Internal Components: Includes terminal blocks, fuse holders, resistors, and opto-isolators

• Component Count: Features a populated PCB with various discrete and integrated components

• Protection Elements: Likely incorporates fuses, transient voltage suppressors, and filtering

• Isolation: Provides galvanic isolation between field wiring and internal logic circuits

• Power Consumption: Draws minimal power for signal conditioning from the backplane

• Status Indicators: May include LEDs for channel status or power indication

System Integration and Application Context

The DS200TBQBG1ACB is a vital part of motor drive and control cabinets in industrial automation. It acts as the reliable junction between harsh plant floor signals and the sensitive drive controller. This module often works in systems that include protective devices like the RMS-TSG-TZ-C Static Trip unit for comprehensive safety. It interfaces with other system components such as the IS200AEBMG1AFB control module and monitoring sensors like the PR6423/128-110.
