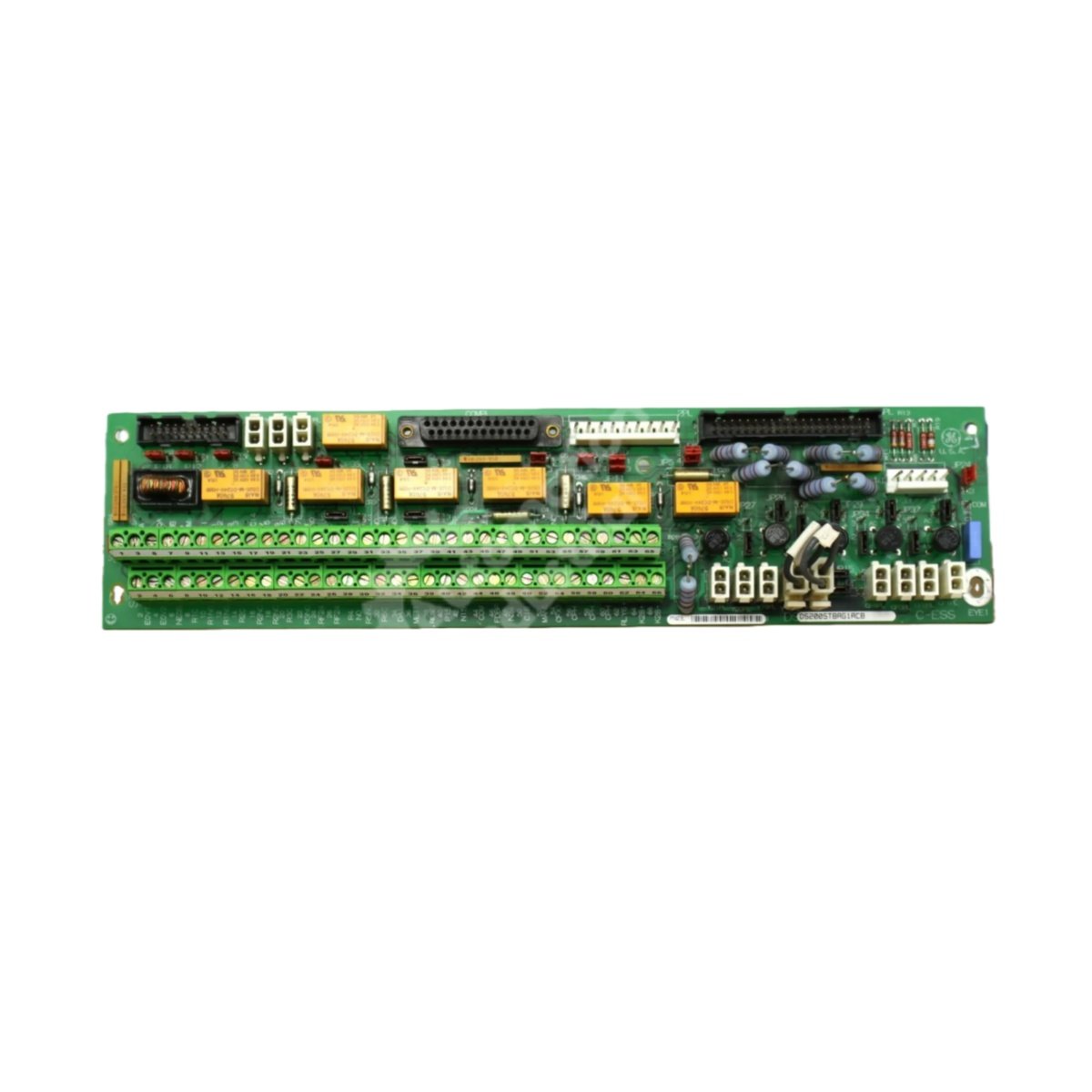

The GE DS200STBAG1ACB functions as a Basic Drive Terminal Board within the General Electric Mark V Speedtronic system. This board manages multiple input and output signals for precise turbine drive regulation. We stock this essential terminal board to support your critical Mark V turbine control applications. It interfaces directly between field wiring and the main drive control modules.
Technical Specifications and Physical Characteristics
Understanding the exact specifications of the GE DS200STBAG1ACB ensures proper integration into your Mark V control system. This board features robust construction with onboard RAM for temporary data storage during operation.
| Specification | Details |
|---|---|
| Product Type | Basic Drive Terminal Board / I/O Interface |
| Manufacturer | General Electric (GE) |
| Series | Mark V Speedtronic |
| Board Dimensions | 12.5 x 8.0 inches (approx. 31.8 x 20.3 cm) |
| Board Thickness | Standard 0.062-inch multi-layer PCB |
| Mounting | Vertical mounting within Mark V drive cabinet |
| Weight | Approximately 1.8 kg (4.0 lbs) |
| Connector Types | Multiple 50-pin and 32-pin terminal block connectors |
| Onboard Memory | 512 KB SRAM with battery backup for data retention |
| Component Count | Over 400 components including ICs, resistors, and capacitors |
Input/Output Architecture and Signal Processing
The GE DS200STBAG1ACB excels at managing diverse signal types for comprehensive turbine drive control. Its multi-input/output architecture handles both analog and digital signals simultaneously.
Digital Inputs: The board accepts 24 discrete digital signals from field sensors. Each input features opto-isolation for protection against voltage transients.
Analog Channels: It processes 8 differential analog input channels with 12-bit resolution. Consequently, you receive accurate readings from speed and temperature sensors.
Output Capabilities: The terminal board provides 16 digital output channels for drive commands. These outputs can sink up to 0.5 Amps each for direct relay control.
Signal Conditioning: Onboard filtering circuits remove high-frequency noise from incoming signals. This ensures clean data transmission to the main turbine controller.
Onboard RAM and Data Storage Features
A standout feature of the GE DS200STBAG1ACB includes its onboard RAM for temporary data storage. This memory capability supports critical turbine control functions.
Memory Type: The board utilizes 512 KB of static RAM for data buffering. This volatile memory requires continuous power to maintain stored information.
Battery Backup: A lithium battery maintains RAM contents during system power-down. The battery provides approximately 10 years of data retention under normal conditions.
Data Storage: The RAM stores configuration parameters and calibration data locally. Therefore, the board retains critical settings even after complete power loss.
Access Speed: The memory interfaces with the main processor at 55 ns access time. This enables rapid read/write cycles for real-time control applications.
Integration with Mark V Drive Systems
The GE DS200STBAG1ACB serves as a vital link in the Mark V turbine control architecture. It works alongside other modules like the IS200AEBMG1AFB to ensure comprehensive drive regulation.
Backplane Communication: The board connects to the VME backplane through dual 96-pin connectors. This interface transmits processed signals to the main control processor.
Field Wiring: Terminal blocks accept wiring from external devices without special tools. This simplifies installation and maintenance in the field.
Status Indication: Multiple LED indicators show power status and signal activity. Operators can quickly verify board operation during routine inspections.
Environmental Rating: The GE DS200STBAG1ACB operates reliably from -30 to 65 degrees Celsius. This wide temperature range suits demanding power generation environments.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
