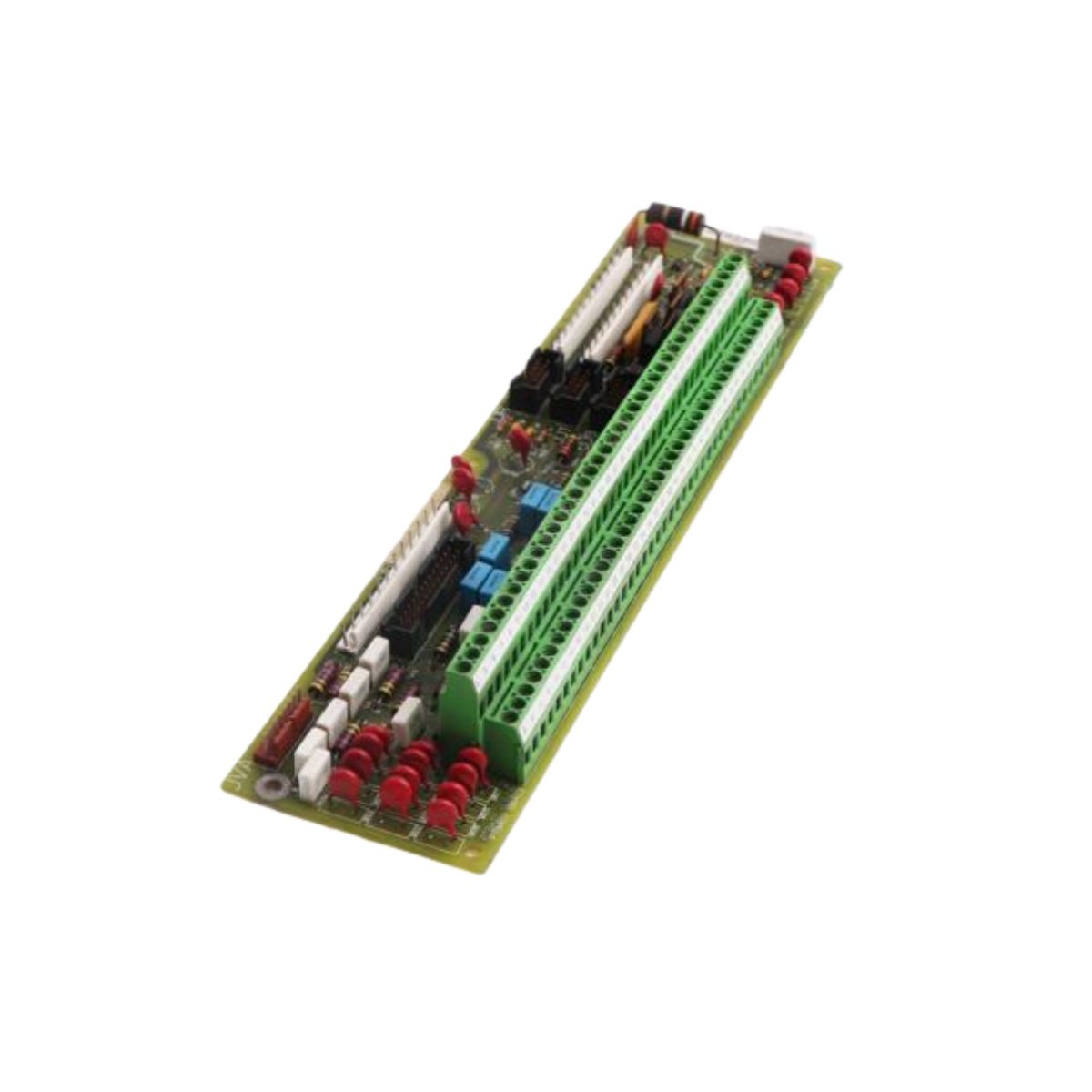

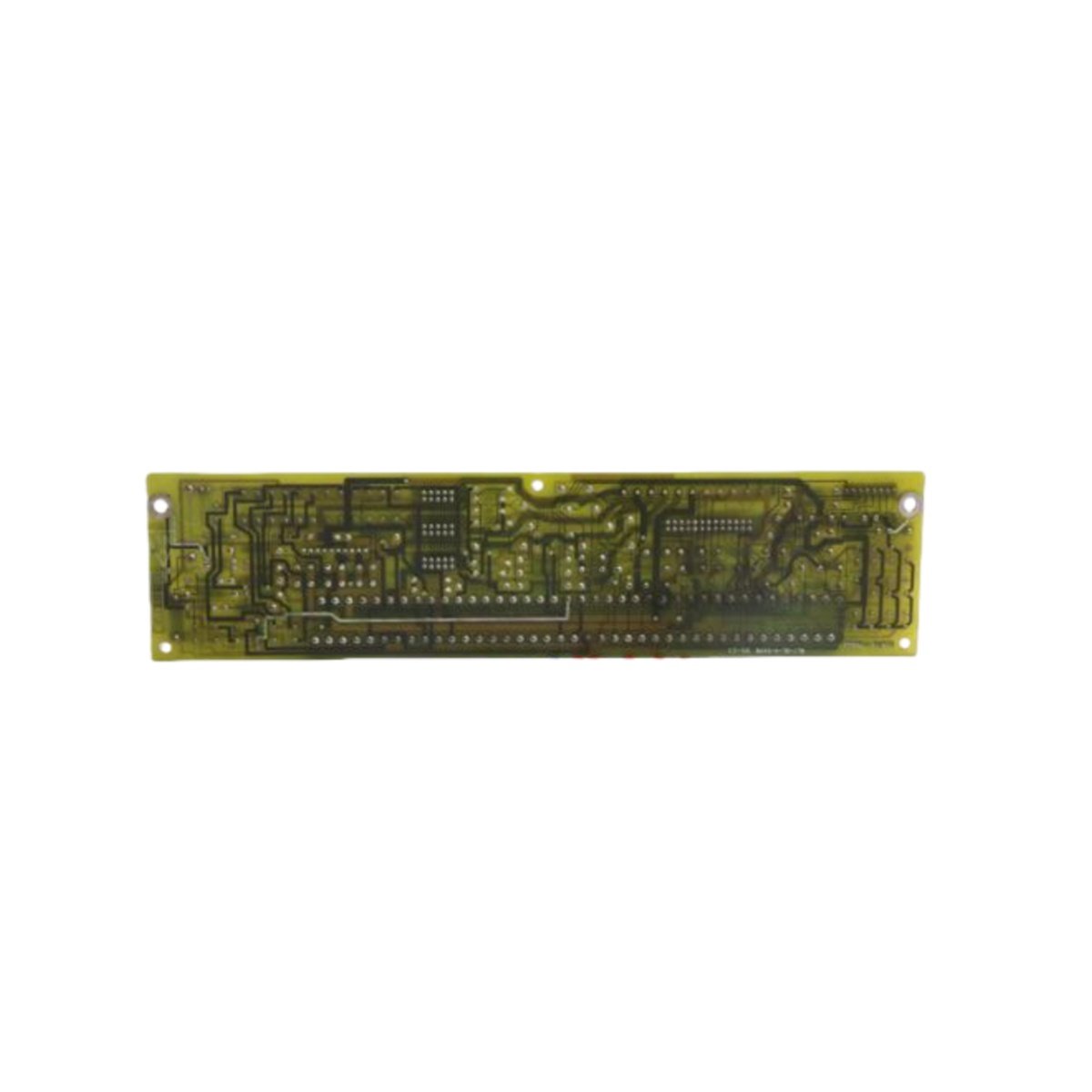

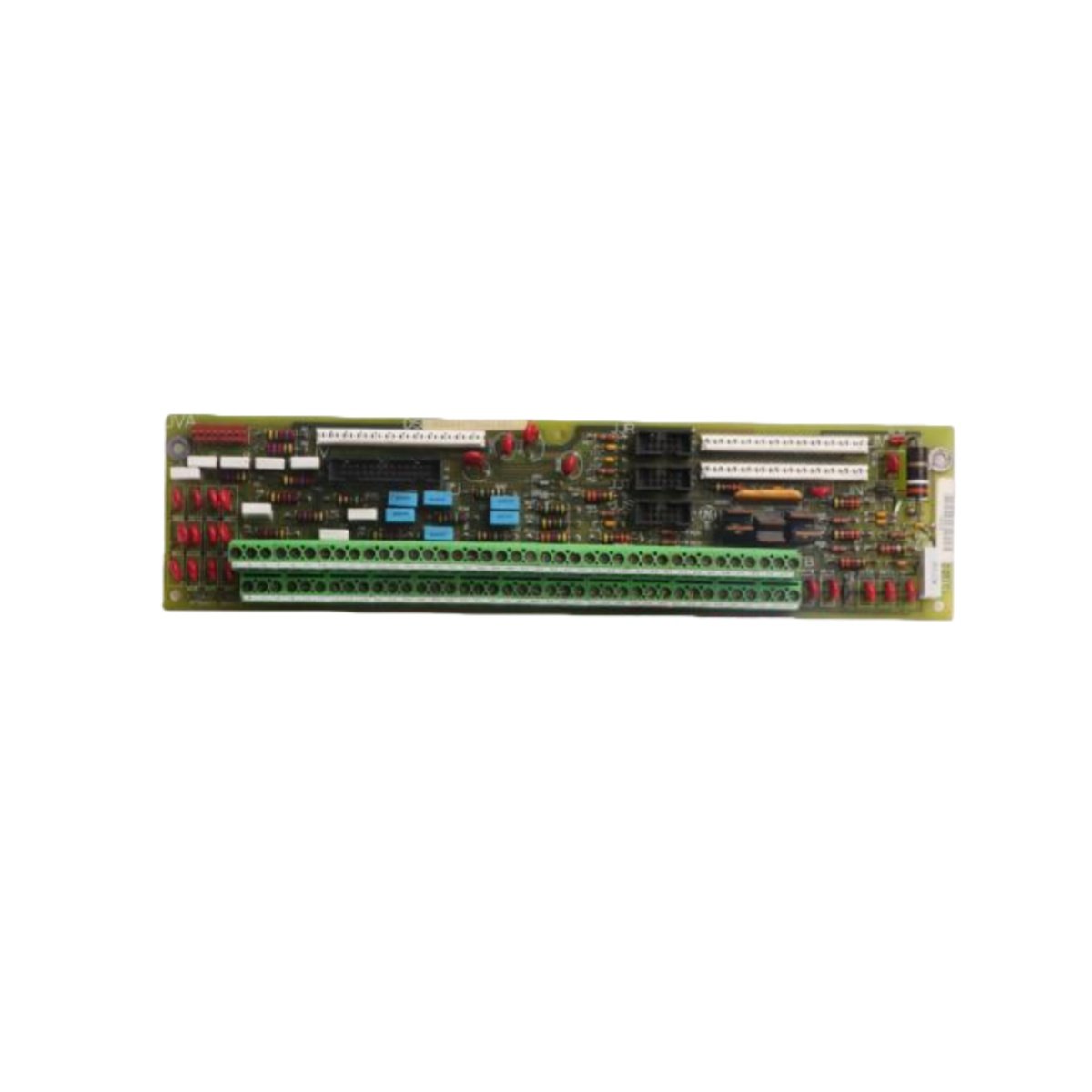

The GE DS200PTBAG1ADC serves as a precision termination board within the Mark V series for managing low-level analog signals. This printed circuit board creates a reliable interface between field wiring and the main control system. It conditions and routes sensor signals directly to the drive for accurate monitoring.
Construction and Form Factor
Engineers built this board for durability in industrial environments with a 1.6mm PCB thickness. The board dimensions measure 30cm by 20cm, allowing compact installation within drive cabinets. Its green solder mask and precise trace routing reflect GE’s manufacturing quality standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| PCB Thickness | 1.6 mm industrial grade |
| Dimensions | 30 cm (H) x 20 cm (W) |
| Connectors | 3-pin and 6-pin locking types |
| Terminal Blocks | Screw-type, field wiring ready |
| Component Count | 150+ resistors, capacitors, diodes |
| Energy Storage | Filtering capacitors for noise reduction |
| Isolation | Optical barriers on input channels |
| Mounting | Rack-mount in Mark V cabinet |
| Interface | Backplane connection to processor |
| Temperature Range | -30°C to +65°C |
Mark V System Integration
This board mounts in the core control rack and interfaces with the main processor via backplane connection. The DS200PTBAG1ADC works alongside analog input boards for precise data acquisition. It maintains full compatibility with both legacy and updated Mark V configurations.
Signal Processing Features
The board handles multiple analog channels simultaneously with minimal signal degradation. Protective circuitry guards each channel against overvoltage conditions. Onboard filtering capacitors smooth voltage fluctuations and reduce electrical noise from external sources.
Maintenance Guidelines
Regular inspection should check for capacitor bulge or terminal block corrosion. Test points provide easy access for voltage measurements without removing wiring. GE manufactured this board with high-temperature components for extended service life.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
