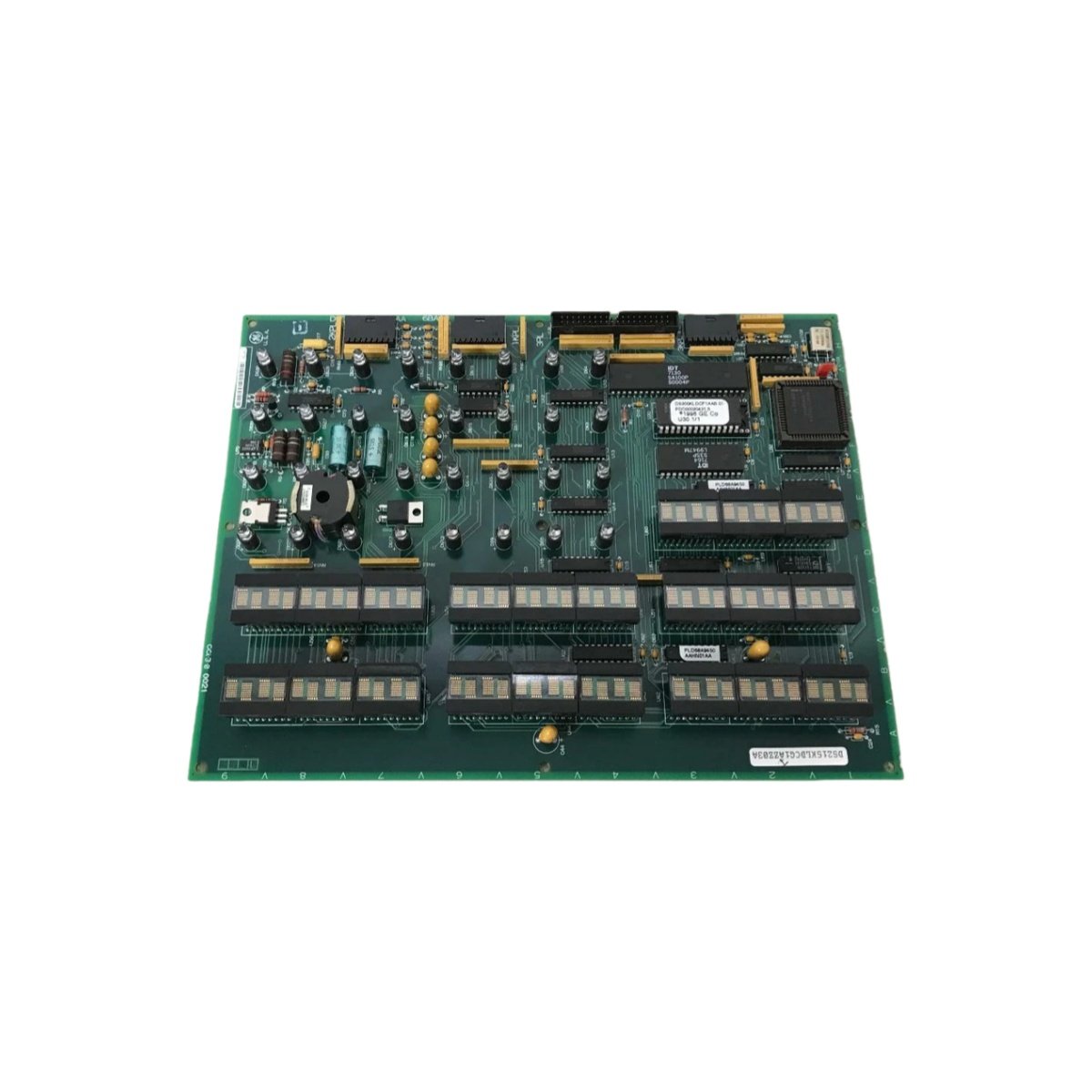

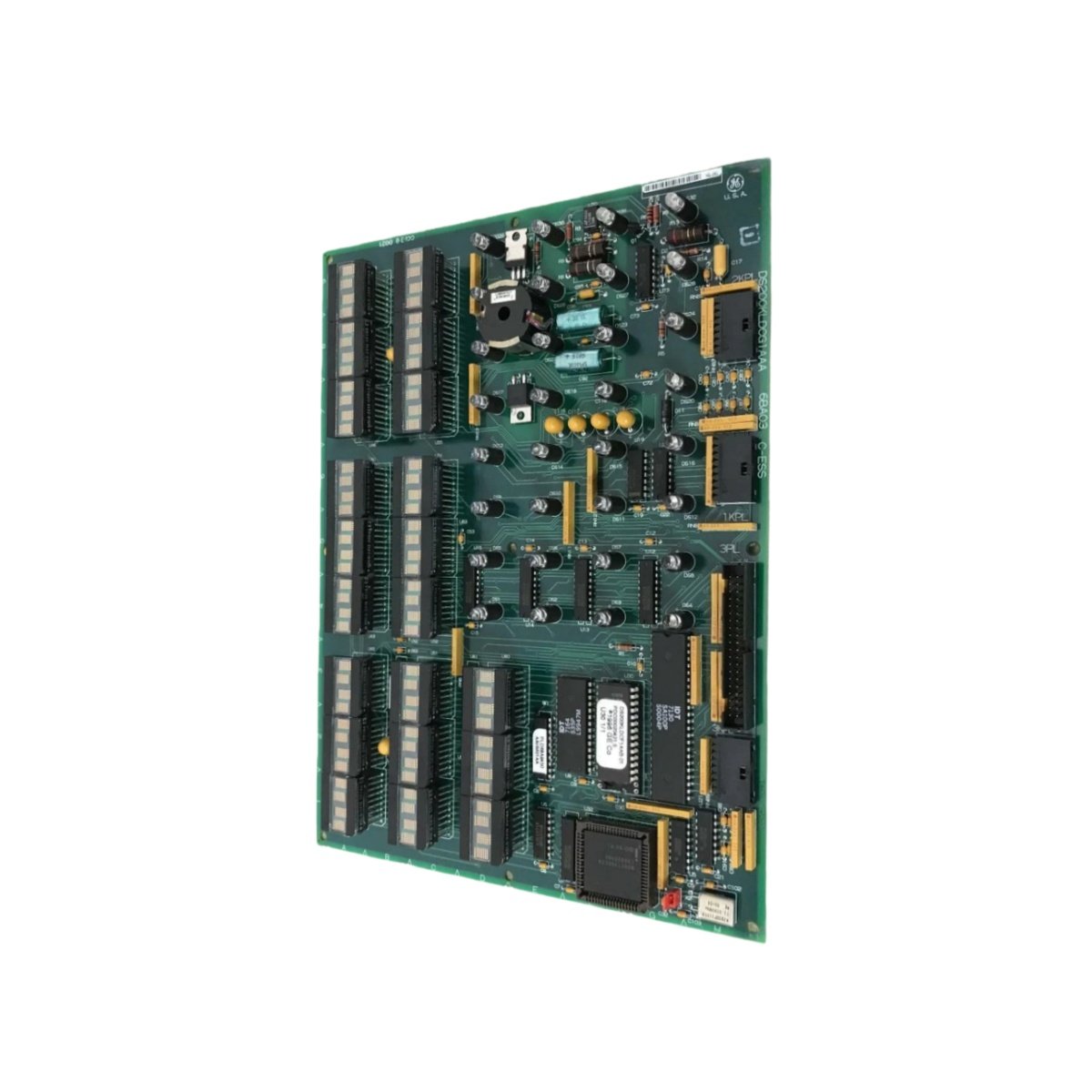

The GE DS200KLDCG1AAA is a dedicated LED display interface board for industrial drives. This module provides essential visual status indication and diagnostics for motor control systems. Consequently, it offers operators immediate feedback on drive health, alarms, and operational parameters.
Core Display Functionality and System Integration
This display board excels at presenting critical drive information through a multi-segment LED display. It interfaces directly with the drive’s main control logic to receive real-time status data. Moreover, the DS200KLDCG1AAA belongs to the versatile DS200 series within GE’s Mark VIE drive platform.
The board often mounts on the drive’s front panel for optimal visibility in control rooms. Therefore, maintenance personnel can quickly assess system status without accessing complex software tools.
Detailed Electrical and Physical Specifications
Designed for reliable, long-term operation, this board meets industrial environmental standards. Below are its comprehensive technical, mechanical, and interface specifications.
Comprehensive Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | GE (General Electric) |
| Model Number | DS200KLDCG1AAA |
| Product Series | DS200 Series (GE Mark VIE Drive System) |
| Product Category | LED Display Board / Human-Machine Interface (HMI) Module |
| Display Type | Multi-digit, Multi-segment Red LED Display |
| Primary Display Content | Fault Codes, Speed, Current, I/O Status |
| Interface to Drive | Proprietary parallel data bus |
| Board Dimensions (L x W) | Standard Drive Form Factor (~150mm x 100mm) |
| Board Weight | 0.18 kg |
| Primary Component Count | 1x display driver IC, 4-8x LED digit modules, 1x bus transceiver |
| Onboard Memory | EPROM for character set and configuration |
| Power Supply Requirement | +5 V DC from drive backplane |
| Typical Power Consumption | 1.5 Watts (max during all segments illuminated) |
| Internal Energy Storage | None (non-volatile memory only, 0 Joules storage) |
| Electrical Interface | Card-edge connector for backplane insertion |
| Operating Temperature Range | 0°C to +70°C (for reliable display performance) |
| Storage Temperature Range | -40°C to +85°C |
| Vibration Resistance | 2G (5-200 Hz, operational) |
| Humidity Rating | 5% to 95% non-condensing |
| MTBF (Calculated) | >200,000 hours |
Application and Sourcing Context
This display board is a critical component for GE’s DS200 drive systems used in conveyors, fans, and pumps. For sourcing complementary industrial drive components or protection devices, consider specialized suppliers. Platforms like Alibaba may list related items, such as the RMS-TSG-TZ-C Static Trip unit for motor circuit protection.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
