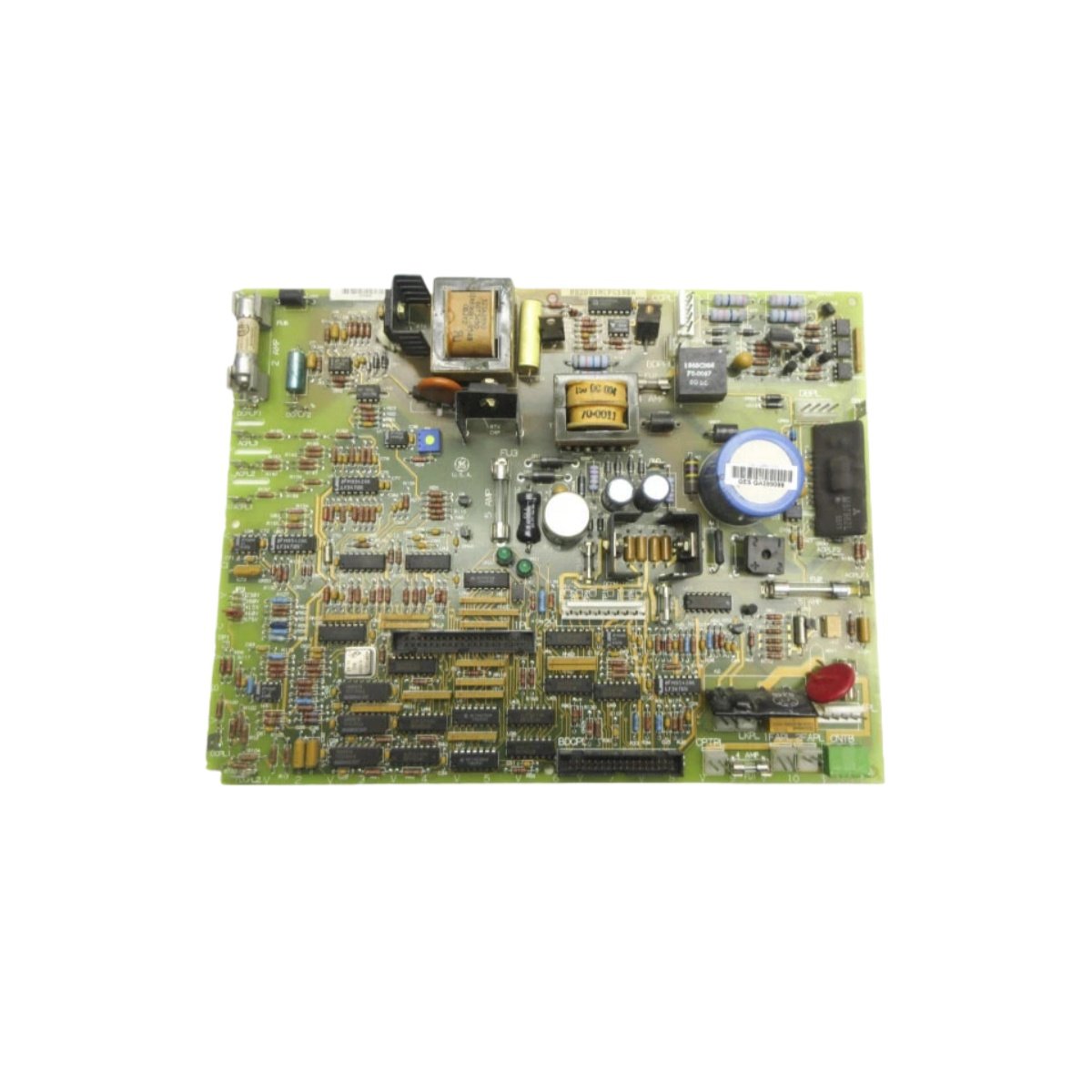

The GE DS200IMCPG1BBA delivers reliable DC power to Mark V turbine systems. This board converts AC input into stable DC outputs. You will find this module in gas, steam, and wind turbine applications. It powers all connected I/O and control boards seamlessly.

Manufacturer: General Electric
Series: Mark V Speedtronic
Category: Power Supply Board (AC to DC Converter)

Physical Dimensions and Weight

The GE DS200IMCPG1BBA measures 12.5 inches in length. Its width reaches 5.2 inches for standard rack mounting. The board thickness sits at 2.0 inches including heat sink. This compact design fits into any Mark V power slot. The total weight comes to approximately 1.2 kilograms.

Technical Specifications and Output Capacity

This power supply board accepts 120V AC or 240V AC input. It produces three regulated DC output voltages. The main output provides 24V DC at 6 amps. Two auxiliary outputs deliver 5V DC and ±15V DC. Consequently, this board supports all Mark V module power requirements.

Energy Storage and Filtering

The GE DS200IMCPG1BBA includes large electrolytic capacitors for energy storage. These capacitors hold 10,000 microfarads at 400V DC rating. This storage provides 200 milliseconds of hold-up time during line drops. Therefore, short power interruptions do not affect turbine operation. The board also features EMI filtering for clean output power.

Interface and Connectivity

This power supply board uses a 40-pin connector for DC output distribution. A separate terminal block accepts AC input wiring. The board includes four LED status indicators for diagnostics. These lights show input presence, output health, and overtemp conditions. You can quickly identify faults without measuring voltages.

Component Layout and Protection Features

The GE DS200IMCPG1BBA contains 68 individual components on a four-layer PCB. Key parts include a main transformer, eight diodes, and twelve capacitors. Overcurrent protection shuts down the board during short circuits. Overtemperature protection activates when internal temperature exceeds 85°C. These safety features prevent damage to your turbine control system.

Integration and Compatibility

Use the GE DS200IMCPG1BBA with any Mark V CPU or I/O rack. It works alongside DS200 series input and output modules. This power board supports all standard Mark V turbine configurations. Order this original GE board to maintain reliable power for your legacy system.
