Overview

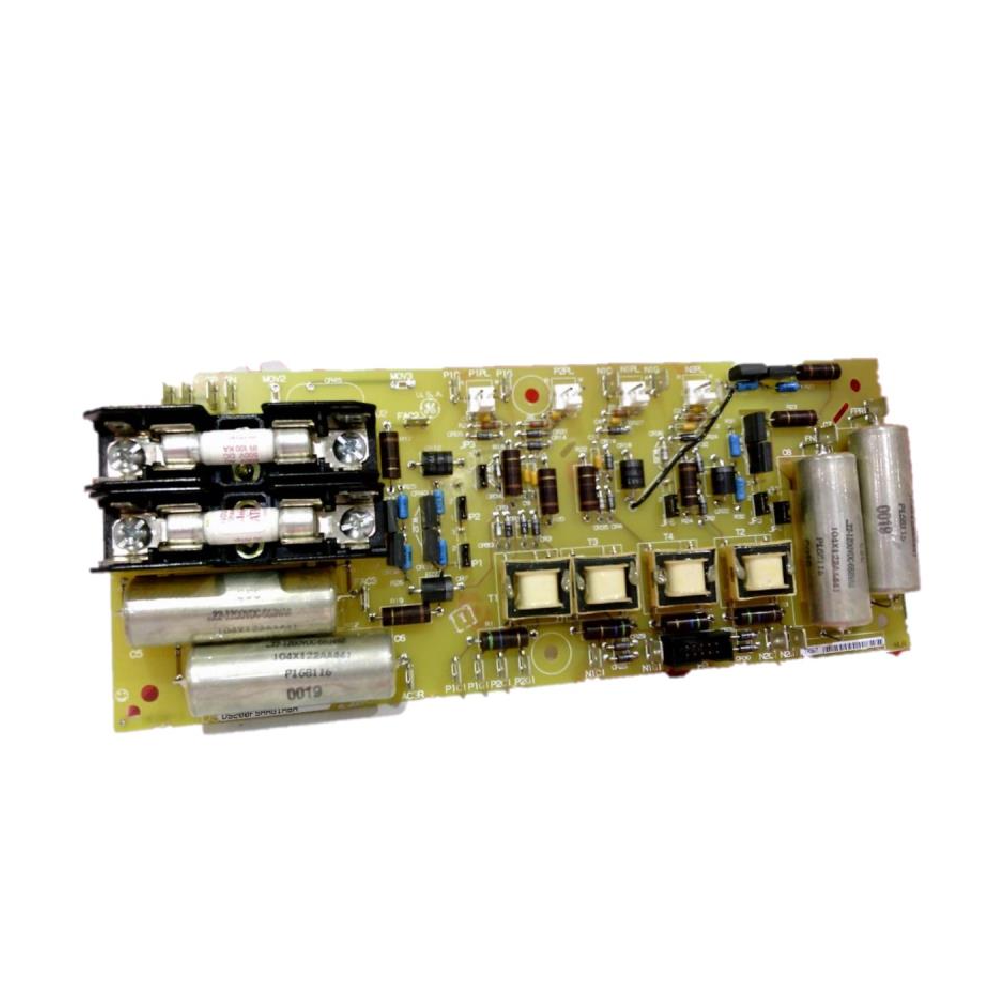

The DS200FSAAG1A is a Field Supply Amplifier board from General Electric’s Mark V Series. It provides reliable voltage amplification for drive components, featuring jumpers, fuses, and test points for diagnostics. The board mounts securely using corner screws and includes a protective metal surface for enhanced durability.
Installation and Replacement
- Remove the four mounting screws and store them safely.
- Disconnect all cables and label or diagram them for easy reconnection.
- Replicate jumper positions from the old board to the new board.
- Align the new board with standoffs and securely fasten the screws.
- Reconnect cables to restore drive functionality.
Board Features
- Five jumpers for testing signals and modifying operational settings.
- Two Limitron fast-acting fuses rated 30A (KTK symbol) for circuit protection.
- Four capacitors (two per side) to store and release high voltage during operation.
- 10-pin connector for drive integration.
- Durable metal surface for added protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | DS200FSAAG1A |
| Manufacturer | General Electric |
| Series | Mark V |
| Function | Field Supply Amplifier |
| Jumpers | 5 (for testing and configuration) |
| Fuses | 2 x 30A Limitron (KTK) |
| Connectors | 10-pin |
| Mounting | Corner screws aligned with standoffs |
| Capacitors | 4 total (2 per side) |
Details
| Weight | 0.4 kg |
|---|
