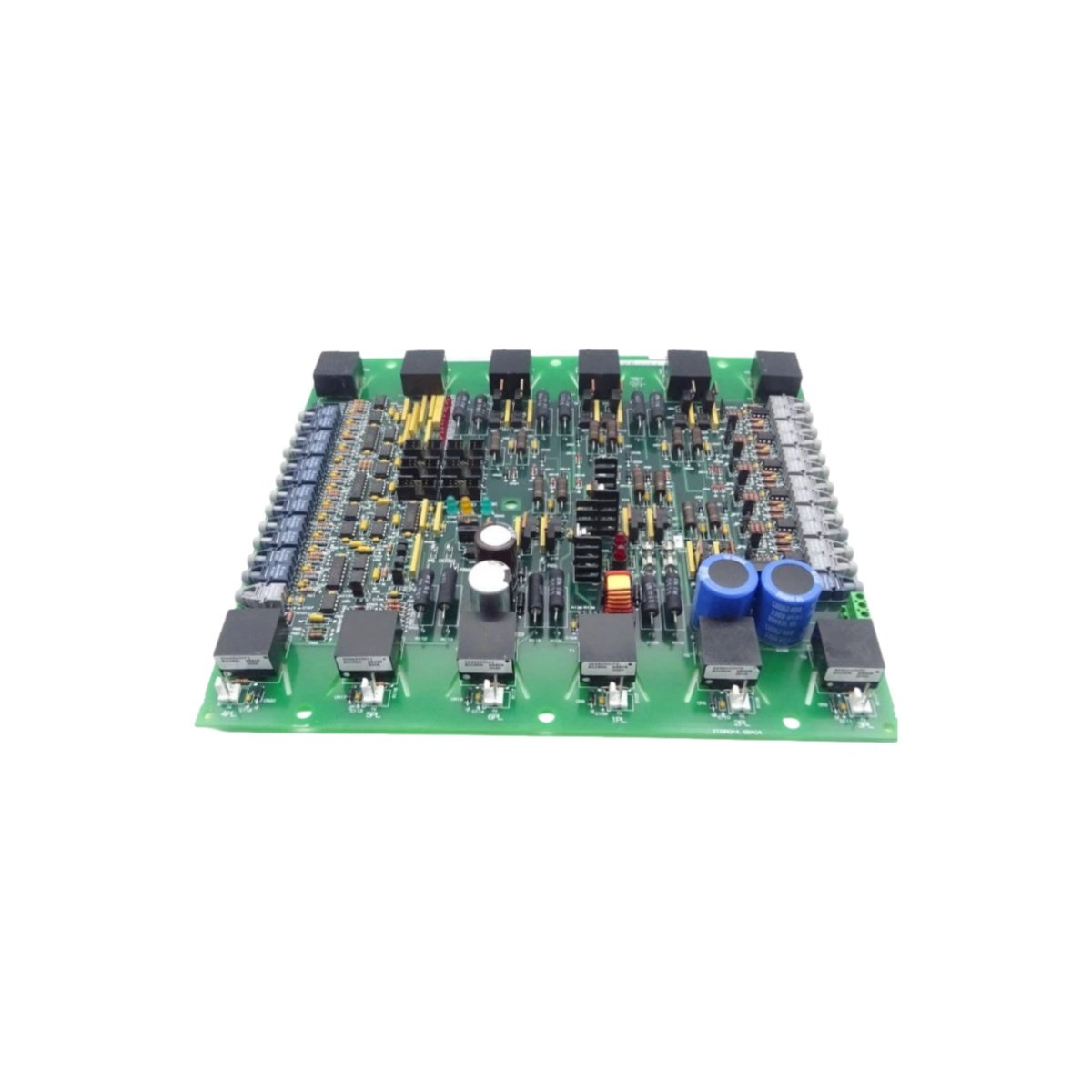

The GE DS200FCRRG1AKD is a specialized Circuit Control Board for industrial drive systems. It manages critical logic and power switching functions within its enclosure. This board is a vital component of the broader GE Speedtronic Mark VIe control series.
Precision Control for Demanding Applications
Engineers designed the DS200FCRRG1AKD for precise relay and contactor management. It operates reliably in the high-vibration environments of turbine control. This module directly interfaces with sensors and actuators in the drive system. Consequently, it ensures accurate execution of complex control sequences.
Detailed Technical Specifications
The following table provides the complete technical profile of this control board.
| Specification Category | Technical Detail |
|---|---|
| Manufacturer & Series | GE (General Electric) – DS200 Series |
| Board Model | DS200FCRRG1AKD |
| Primary Function | Circuit Control / Logic & Relay Driver Board |
| Form Factor | Standardized PCB for Mark VIe system rack mounting |
| Board Dimensions | Designed for a specific drive chassis slot (exact mm per datasheet) |
| Approximate Weight | 0.42 kg (0.93 lbs) — verify with official documentation |
| Board Interface | Multi-pin, high-density connectors for backplane and field wiring |
| Power Input | Typically sourced from the drive backplane (e.g., +24VDC, +5VDC) |
| Key Components | Microcontrollers, relay drivers, optical isolators, and power regulators |
| Component Count | High-density SMT assembly with several hundred individual parts |
| Switching Capacity | Designed to drive multiple industrial-grade relay and contactor coils |
| Communication | On-board logic for interfacing with the main system controller |
Core Role in System Operation
This board translates low-power logic signals into commands for power circuits. It reliably controls motor starters, solenoid valves, and indicator devices. The DS200FCRRG1AKD also provides essential electrical isolation for safety. Therefore, it acts as a crucial intermediary between sensitive electronics and high-power loads.
Integration and Reliability
Installing this genuine GE board ensures full compatibility with your Mark VIe system. Technicians must follow proper ESD procedures during handling and installation. The board’s robust design minimizes failure points in critical control chains. Ultimately, the DS200FCRRG1AKD contributes directly to system uptime and operational safety.
Details
| Weight | 0.79 kg |
|---|---|
| Dimensions | 150 × 120 × 170 mm |
