Product Overview and Core Functionality

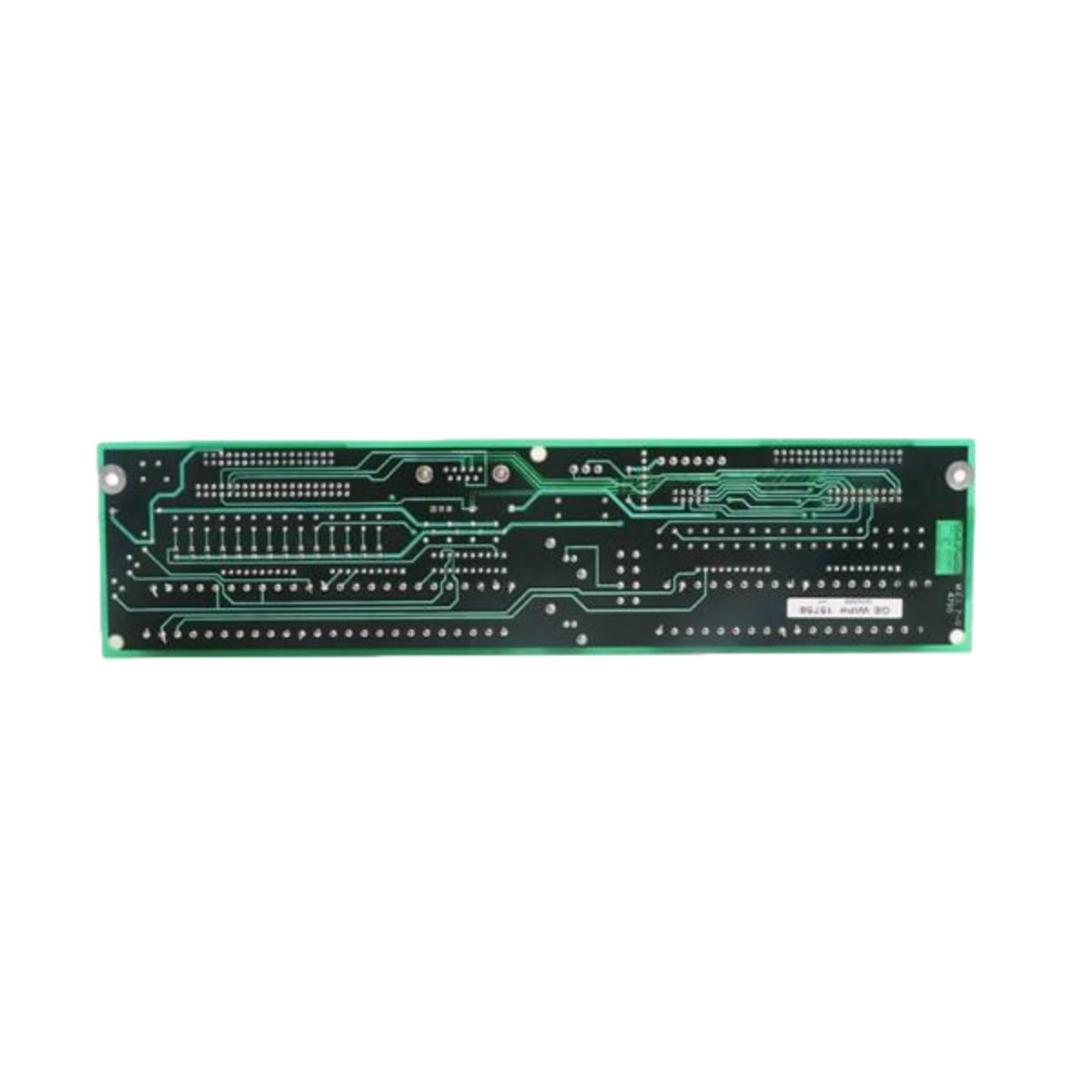

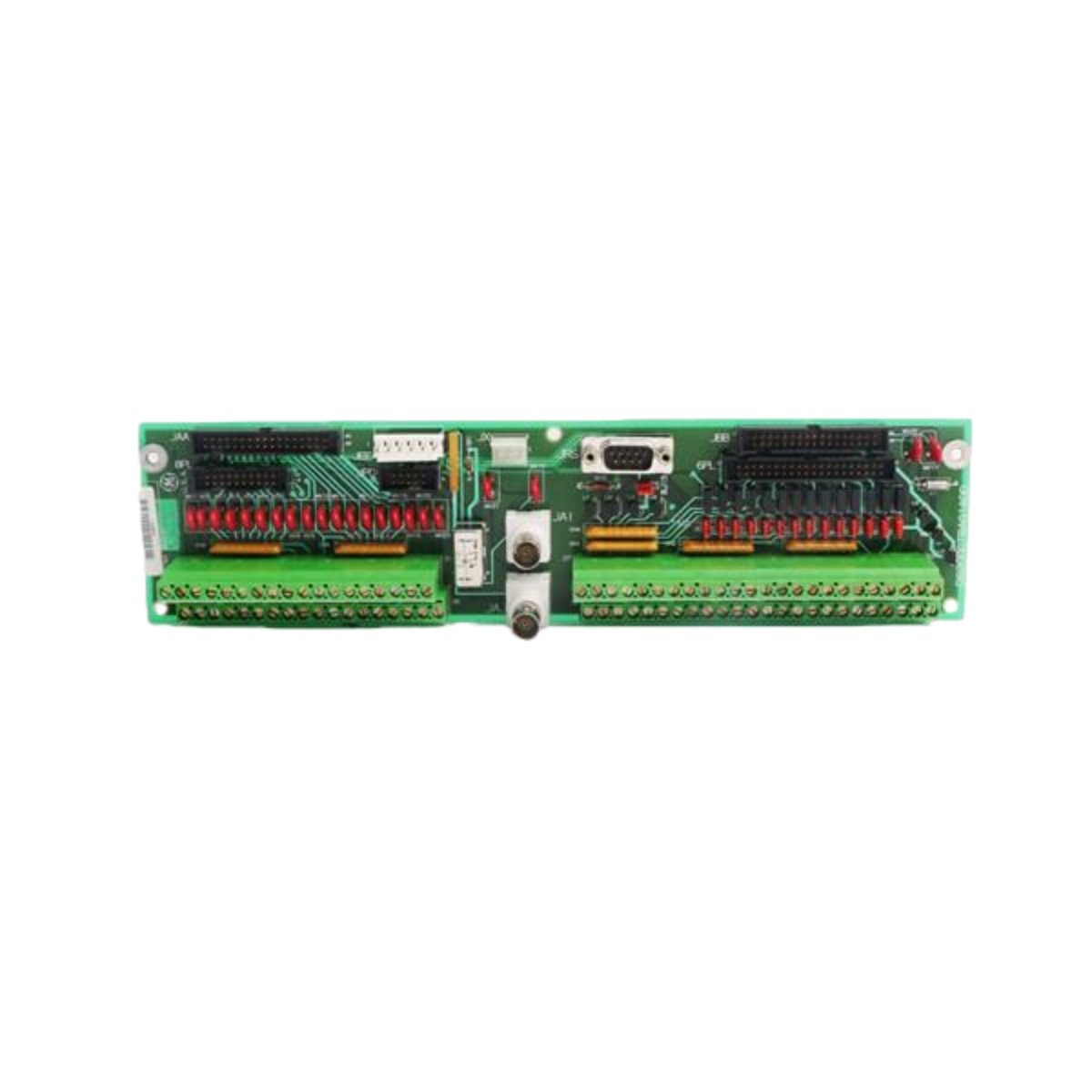

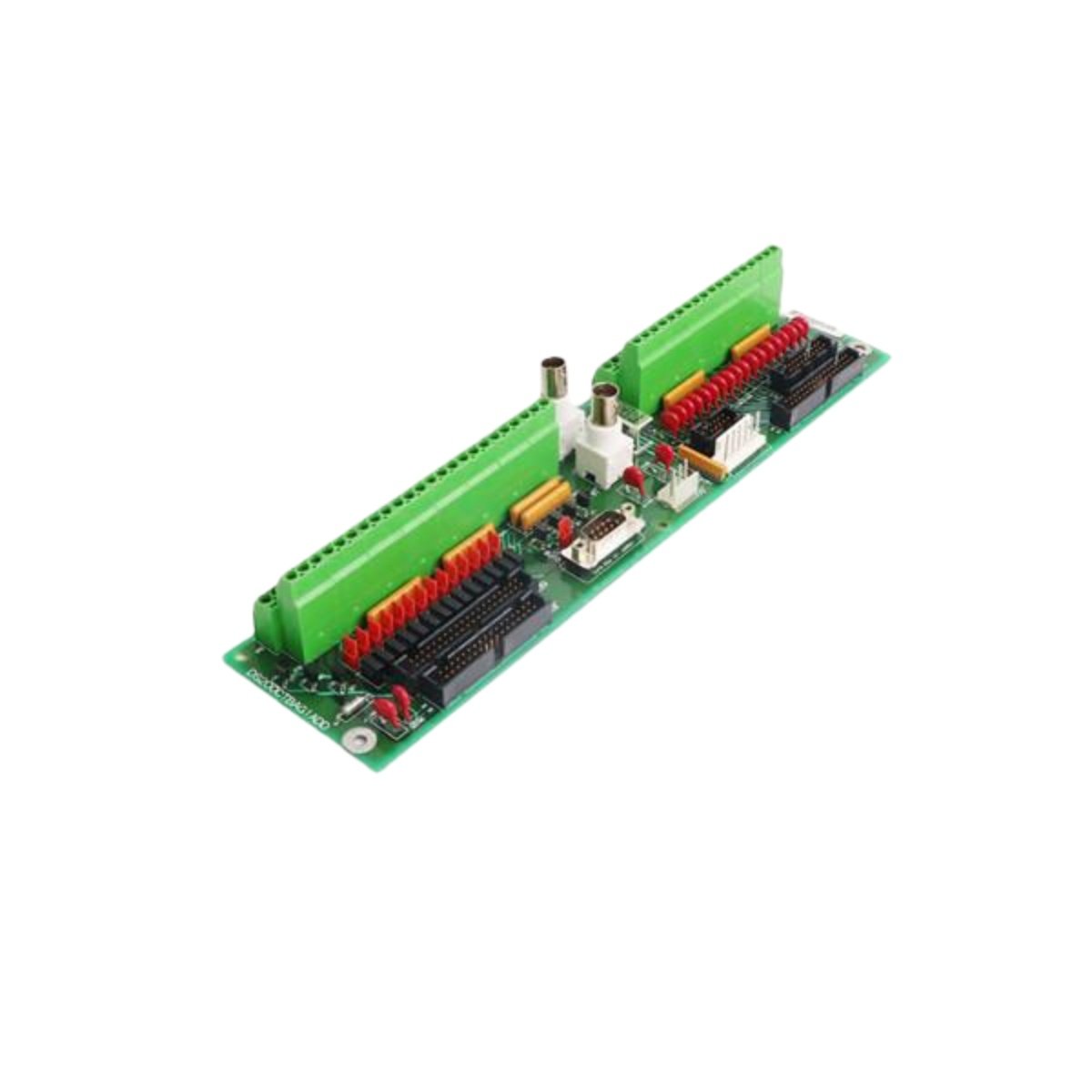

The GE DS200CTBAG1ADD serves as an analog output terminal board within the Speedtronic Mark V turbine control system. This board interfaces between the control modules and field devices requiring analog signals. It provides reliable signal conditioning and termination for critical turbine operations.

Engineers design this terminal board specifically for the SDCC system in Mark V applications. The GE DS200CTBAG1ADD receives analog commands from the control core and transmits them to actuators. Consequently, it ensures precise positioning of fuel valves and inlet guide vanes.

Physical Connectors and Termination Points

The GE DS200CTBAG1ADD features multiple terminal blocks for secure field wiring connections. Each terminal accepts standard industrial wire gauges used in turbine installations. Clearly marked silkscreen labeling identifies each point for easy wiring verification.

Additional connector interfaces link the board to the main control board in the rack. These high-density connectors ensure reliable signal transfer between boards. Gold-plated contacts resist corrosion and maintain signal fidelity over many years.

Analog Output Channels and Protection

The GE DS200CTBAG1ADD supports multiple independent analog output channels for simultaneous control. Each channel provides a standard 4-20 mA current loop signal for industrial actuators. This industry-standard interface ensures compatibility with a wide range of field devices.

Each analog output includes built-in protection against field wiring faults. The board withstands accidental shorts to ground or voltage sources without damage. This robustness reduces downtime and repair costs in industrial environments.

Signal Conditioning and Isolation

The GE DS200CTBAG1ADD incorporates signal conditioning circuitry for optimal performance. It filters electrical noise from control signals before transmission to field devices. Isolation barriers protect sensitive Mark V electronics from field-side disturbances.

Physical and Environmental Specifications

The GE DS200CTBAG1ADD conforms to the standard Mark V board form factor for rack mounting. It operates reliably from 0 to 60 degrees Celsius without performance degradation. Conformal coating protects the board from moisture, dust, and contaminants.

Diagnostic Capabilities

Built-in test points allow technicians to verify analog output signals during maintenance. You can measure current loop values directly at the board using standard meters. Status LEDs confirm proper power and communication with the control board.

Technical Specifications Summary
