Overview

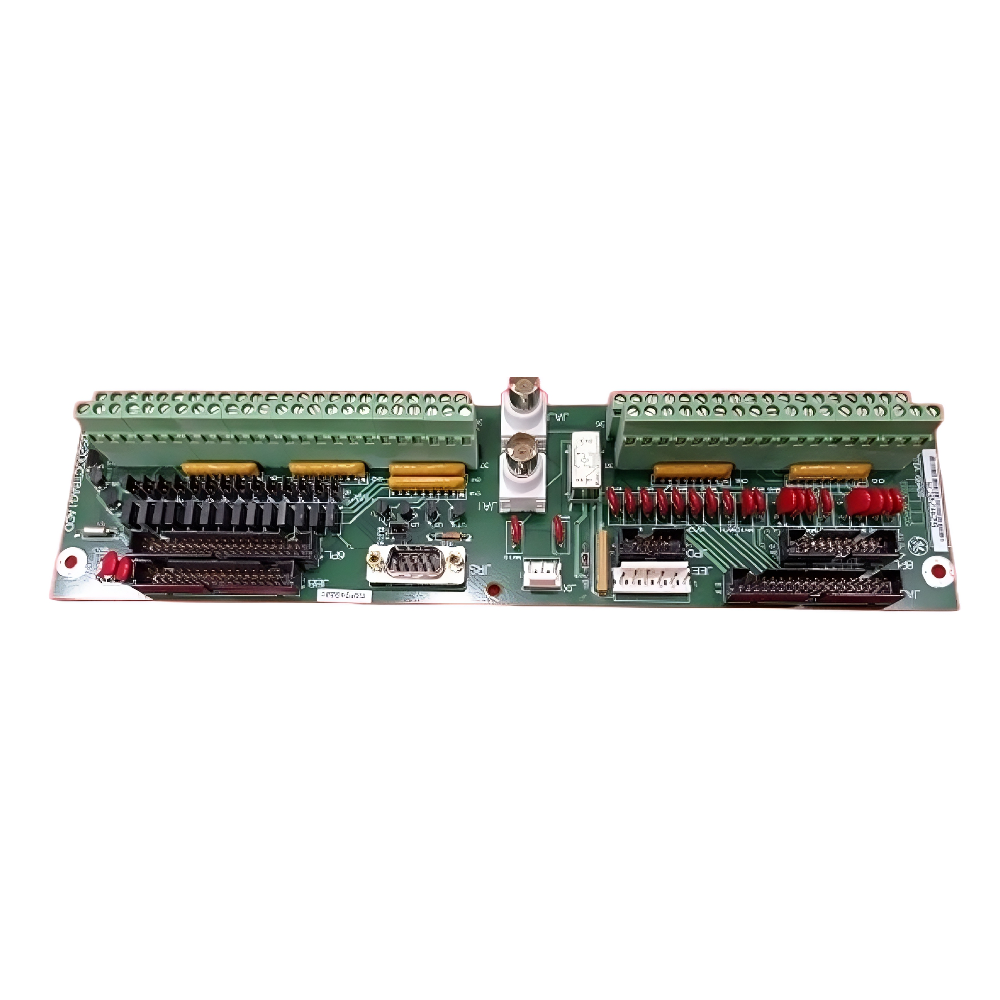

The DS200CTBAG1A-BD is an Analog Termination Board (CTBA) for the GE Mark V Speedtronic Turbine Control System. It terminates and routes critical analog signals, enabling efficient communication between system modules. This board ensures reliable monitoring and control of turbine operations.
Key Features
- Signal Termination & Routing: Handles analog signals including mA inputs and outputs.
- System Integration: Installed in the C Core, connects seamlessly with other Mark V modules via multiple connectors.
- Diagnostics Support: RS-232 9-pin serial port for TIMN diagnostics and troubleshooting.
- Customizable Jumpers: BJ1-BJ14 connect NEG mA inputs to DCOM; BJ15 links RS-232 monitor port to DCOM.
- Electrical Protection: Includes resistors, capacitors, varistors, and diodes for signal protection and voltage suppression.
- Legacy Compatibility: Part of GE Mark V series; spares available through specialized suppliers.
Technical Specifications
- Part Number: DS200CTBAG1A-BD
- Function: Analog Termination Board (CTBA)
- Series: GE Mark V Speedtronic
- Location: C Core
- RS-232 Port: 9-pin serial for diagnostics
- Connectors: Multiple for signal interfacing (IONET, ARCNET, COREBUS)
- PCB Coating: Standard
- Revision: A-rated functional
Applications
- Turbine Control Systems: Gas, steam, and wind turbines.
- Analog Signal Management: Routes and processes critical signals.
- Diagnostics & Maintenance: Supports monitoring and troubleshooting system performance.
Ordering & Availability
- Part Number: DS200CTBAG1A-BD
- Functional Acronym: CTBA
- Available through specialized Mark V spare suppliers.
Details
| Weight | 0.36 kg |
|---|---|
| Dimensions | 286 × 70 × 40 mm |
