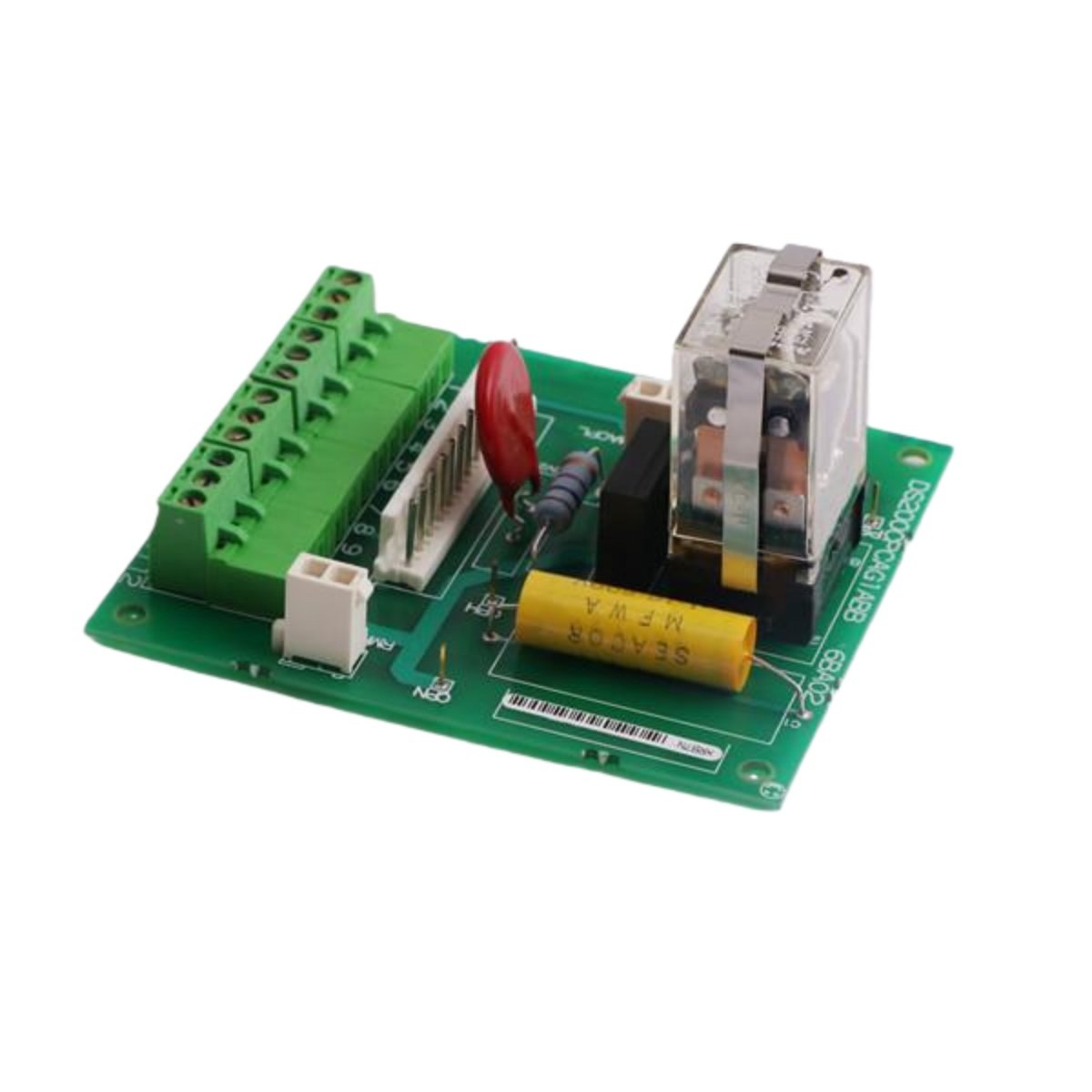

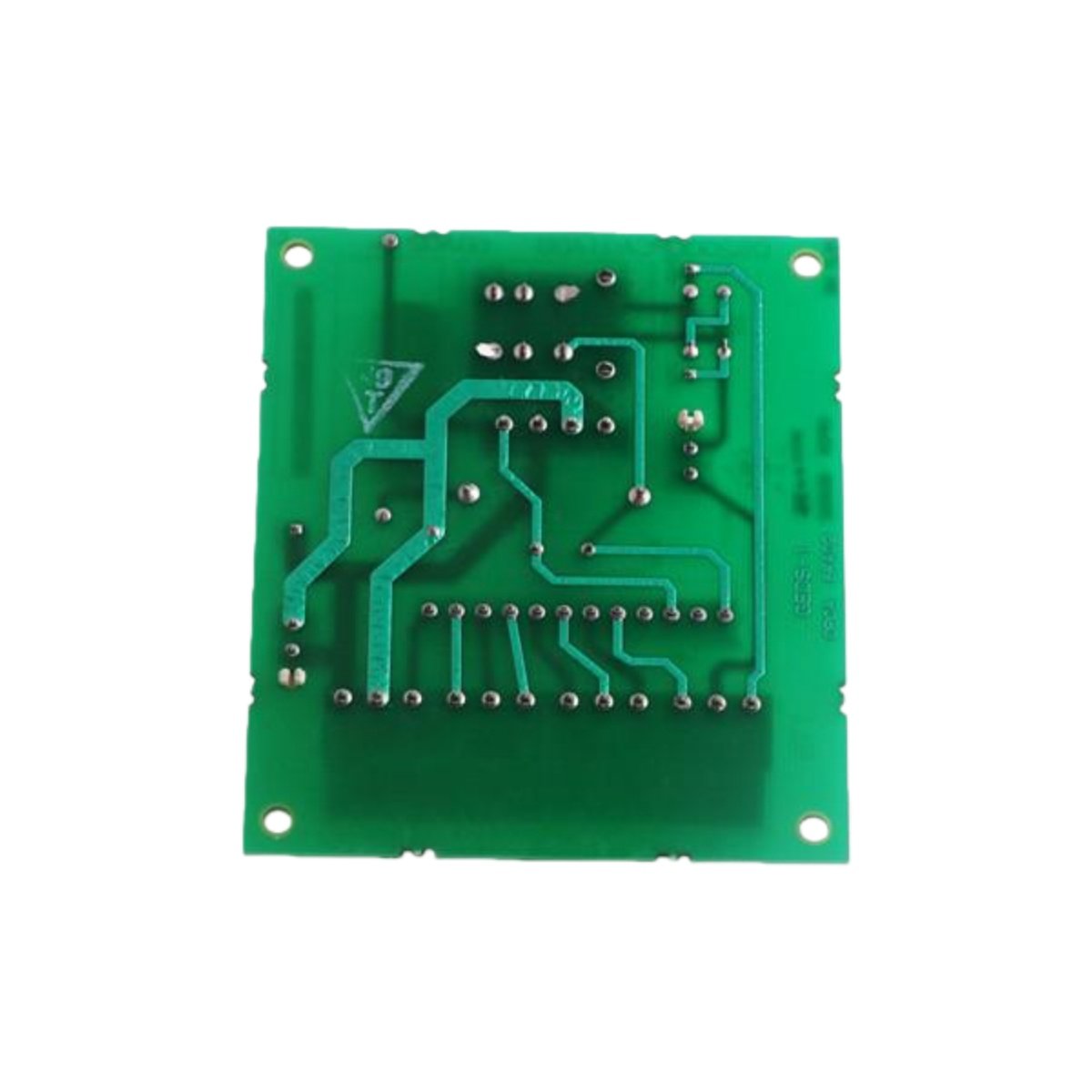

The GE DS200CPCAG1ABB serves as a critical contactor pilot control board. This component manages and drives high-power contactors within GE turbine control systems. Furthermore, it ensures reliable switching operations by providing precise control signals.
Core Control Functionality
This pilot board directly interfaces with main power contactor coils. It translates low-level logic commands into robust drive signals. Consequently, it enables safe and accurate engagement of heavy electrical loads.
Integration and Design Specifications
The DS200CPCAG1ABB board is designed for seamless integration into specific drive chassis. Its compact form factor optimizes space within the control cabinet. Additionally, the board features robust connectors for reliable power and signal transmission.
For detailed planning and compatibility, please review the complete technical data below.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Model | General Electric (GE) DS200CPCAG1ABB |
| Board Type | Contactor Pilot Board |
| Primary Function | Contactor Coil Drive & Control |
| Typical System | GE Drive Systems / Turbine Controls |
| Form Factor | Standard Drive Board Size |
| Key Interfaces | Logic Input, Contactor Coil Output, Power Supply |
| Design Purpose | Reliable Switching of High-Power Contactors |
| Common Application | Main Power Circuit Control |
Reliability and Support
This GE board is essential for maintaining the operational integrity of legacy systems. It provides a direct replacement for original pilot control components. Finally, sourcing this genuine board helps ensure long-term system reliability and performance.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
