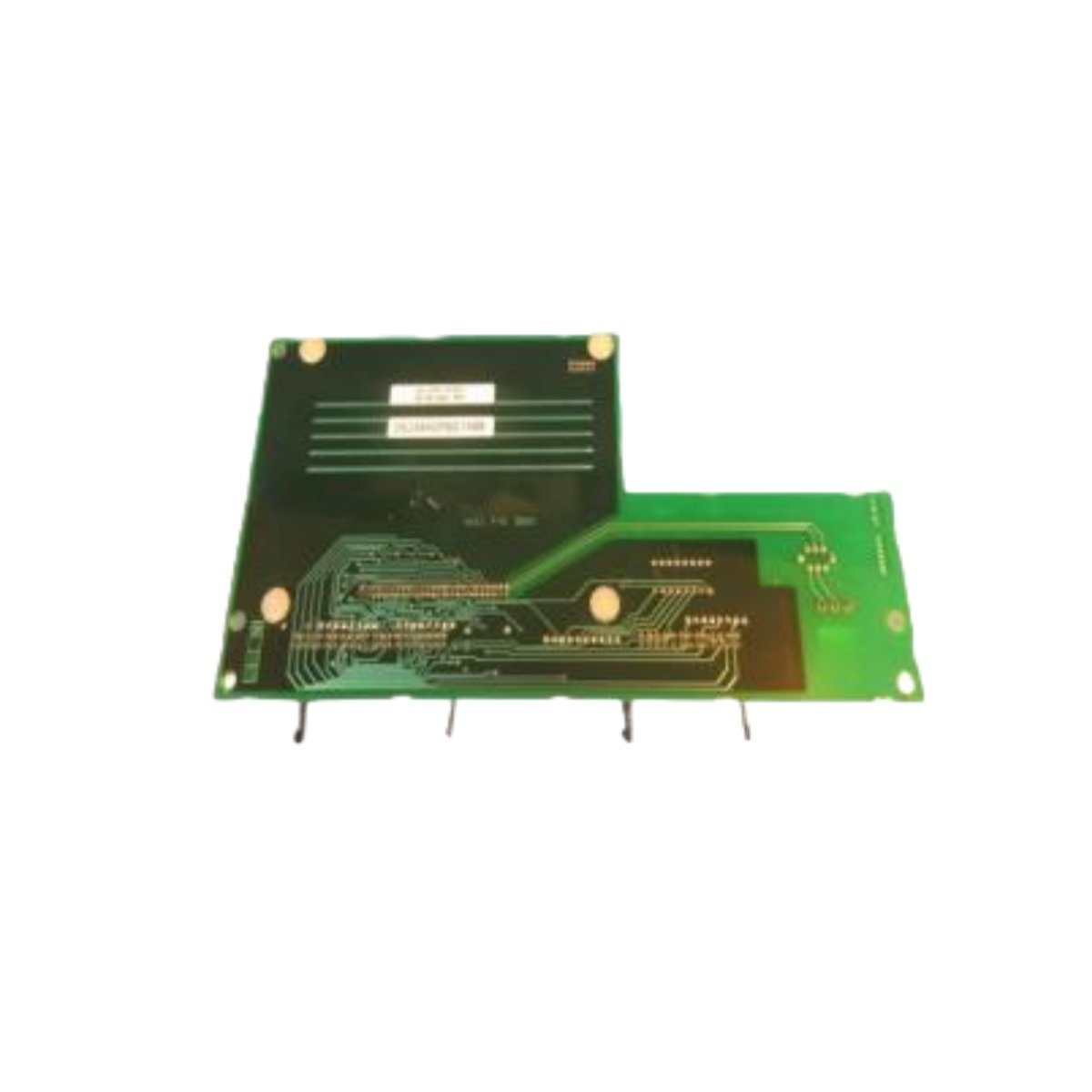

This Genius I/O Adapter Board serves as a critical communication interface for industrial control systems. It originates from the GE Mark V series, a product line now supported by Emerson Automation. The DS200ADPBG1ABB manages data exchange between the main controller and remote I/O blocks.

Technical Specifications

Engineers will find the board’s design focuses on robust field communication. It uses the Genius protocol to transmit data over a single twisted-pair cable. The assembly includes multiple discrete components for signal isolation and power regulation.

Design and Configuration

The board features a compact layout optimized for rack-mount installations. It includes several test points for convenient voltage monitoring during troubleshooting. Moreover, the design incorporates isolation transformers to protect the control side from field noise.

Technicians will appreciate the clear labeling on the printed circuit board. Each major component carries a reference designator for easy identification. The DS200ADPG1ABB also uses surface-mount technology to maximize reliability in harsh environments.

Application and Compatibility

This adapter board integrates seamlessly with Genius I/O blocks and the Mark V turbine control system. It converts parallel data from the CPU into serial Genius protocol for transmission. Users often pair this board with remote I/O modules for distributed control architectures.

Emerson continues to support legacy GE Mark V systems with replacement components. The DS200ADPBG1ABB provides a reliable solution for maintaining existing turbine control installations.
