Overview

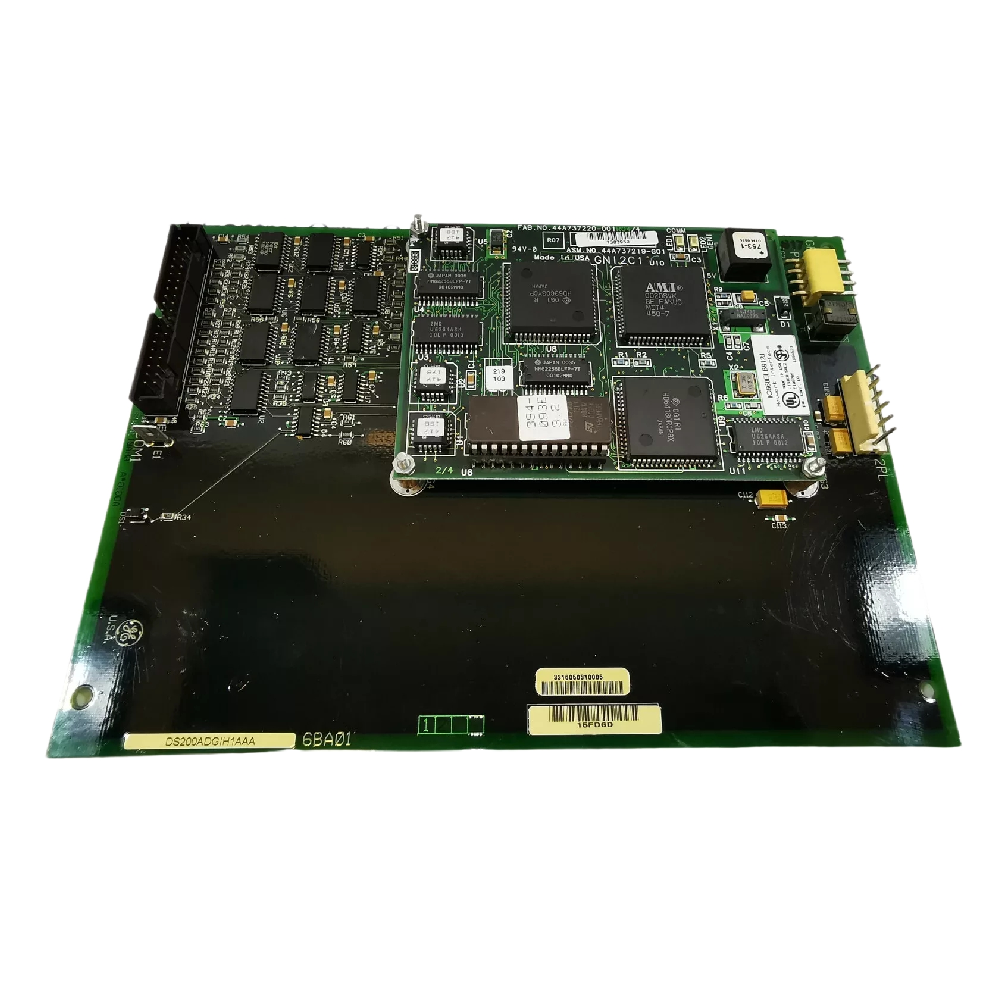

The GE DS200ADGIH1AAA board is part of the Mark V Turbine Control System, developed to manage steam and gas turbine drives. Moreover, it supports efficient control of turbine components, ensuring reliability even in legacy systems. This auxiliary interface board provides diagnostic points and secure connectivity for proper system monitoring. In addition, its conformal coating protects against environmental hazards like dust and moisture.
Key Functional Highlights
- System Support: Works specifically with Mark V Turbine Control Systems.
- Connector Configuration: Includes a 40-pin connector, 6-pin connector, and 60 jumpers for flexible integration.
- Diagnostic Features: Multiple test points allow technicians to verify circuits with calibrated equipment.
- Static Protection: Requires wrist straps and grounding to prevent electrostatic damage.
- Revisions: Three revisions exist, with the first two compatible with older Mark V systems.
- Durability: Conformal coating increases board longevity in industrial environments.
Furthermore, proper installation ensures full board functionality and reduces operational errors.
Technical Data
| Parameter | Specifications |
|---|---|
| Manufacturer | General Electric (GE) |
| Series | Mark V |
| Part Number | DS200ADGIH1AAA |
| Product Type | Auxiliary Interface Board |
| Revision Quantity | 3 revisions |
| Backward Compatibility | Compatible with first two revisions |
| Assembly Type | Normal assembly |
| Board Dimensions | 8 in (W) × 6 in (L) |
| Connectors | 40-pin, 6-pin |
| Jumpers | 60 jumpers |
| Test Points | Provided for diagnostics |
| Protective Coating | Conformal coating |
In addition, these specifications allow reliable integration into legacy Mark V turbine control systems.
Typical Applications
The DS200ADGIH1AAA is suitable for turbine control, monitoring, and diagnostics in industrial plants:
- Steam Turbines: Controls auxiliary circuits and monitors signal integrity.
- Gas Turbines: Ensures safe operation of drive assemblies and connected subsystems.
- Maintenance & Testing: Diagnostic points help technicians validate system performance.
For instance, the board allows accurate monitoring without interfering with other system components.
Details
| Weight | 1.5 kg |
|---|
