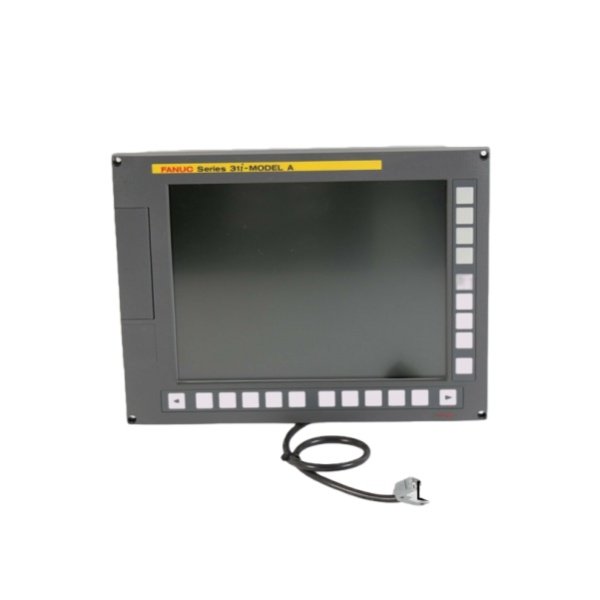

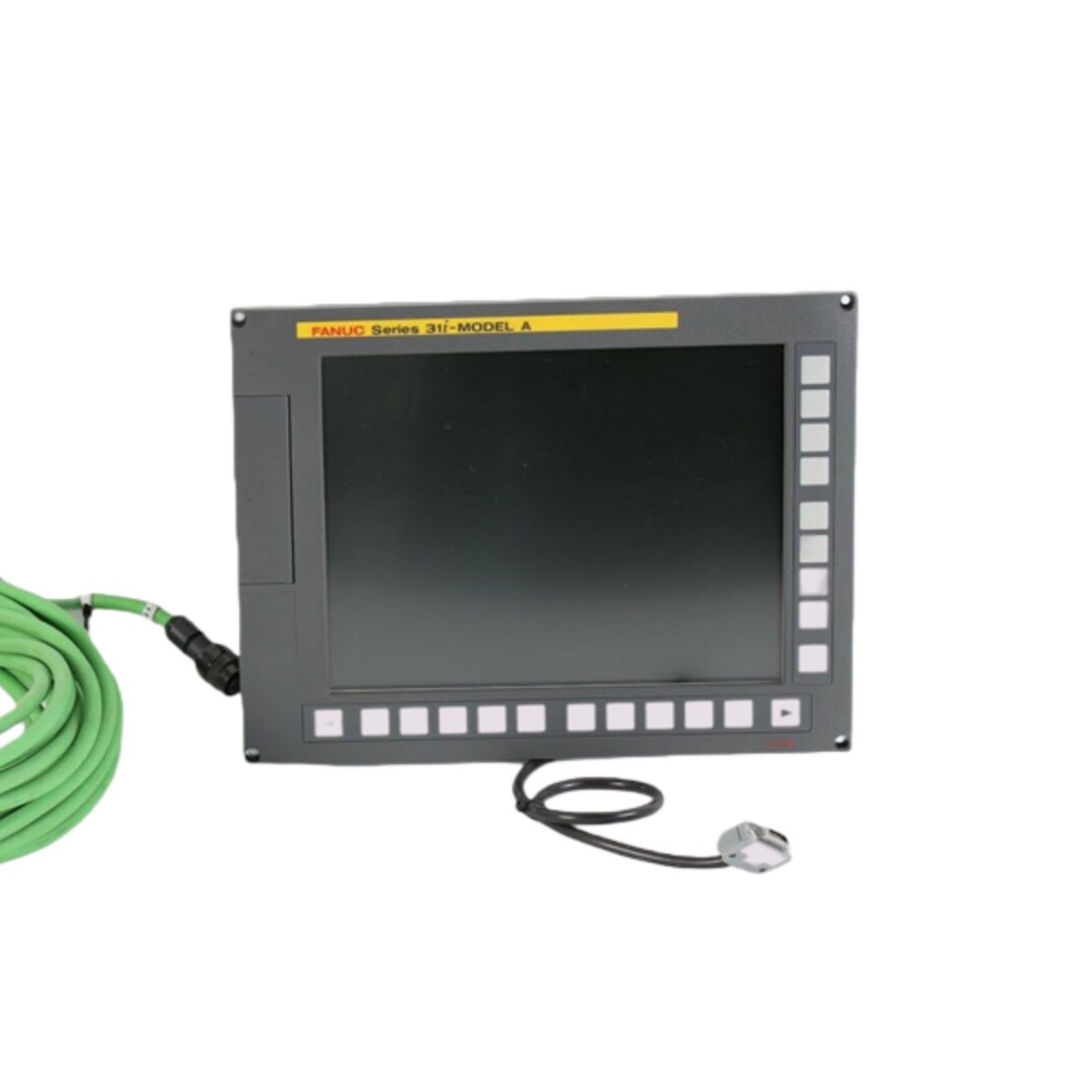

The GE A02B-0303-C074 functions as a 10.4-inch color LCD display unit designed for CNC operator interface applications. This B1 panel provides visual feedback for machine tool control systems, enabling operators to monitor program execution and machine status effectively. Engineers specify the A02B-0303-C074 for integration with 30i series CNC controls in precision machining environments.

Display Specifications and Visual Performance

We equip the GE with a 10.4-inch color LCD screen delivering sharp text and graphics for comprehensive machine control visualization. This unit operates without touch functionality, relying on external input devices for operator commands. The display produces vibrant colors for clear differentiation of machine states, tool paths, and alarm conditions during production runs.

• Screen Size: 10.4 inches diagonal for comfortable viewing distance.

• Display Type: Color LCD for rich graphical user interface presentation.

• Touch Capability: None (B1 panel without touch functionality).

• Compatibility: Designed for 30i series CNC control systems.

• Mounting: Panel-mount configuration for machine operator stations.

Physical Specifications and System Integration

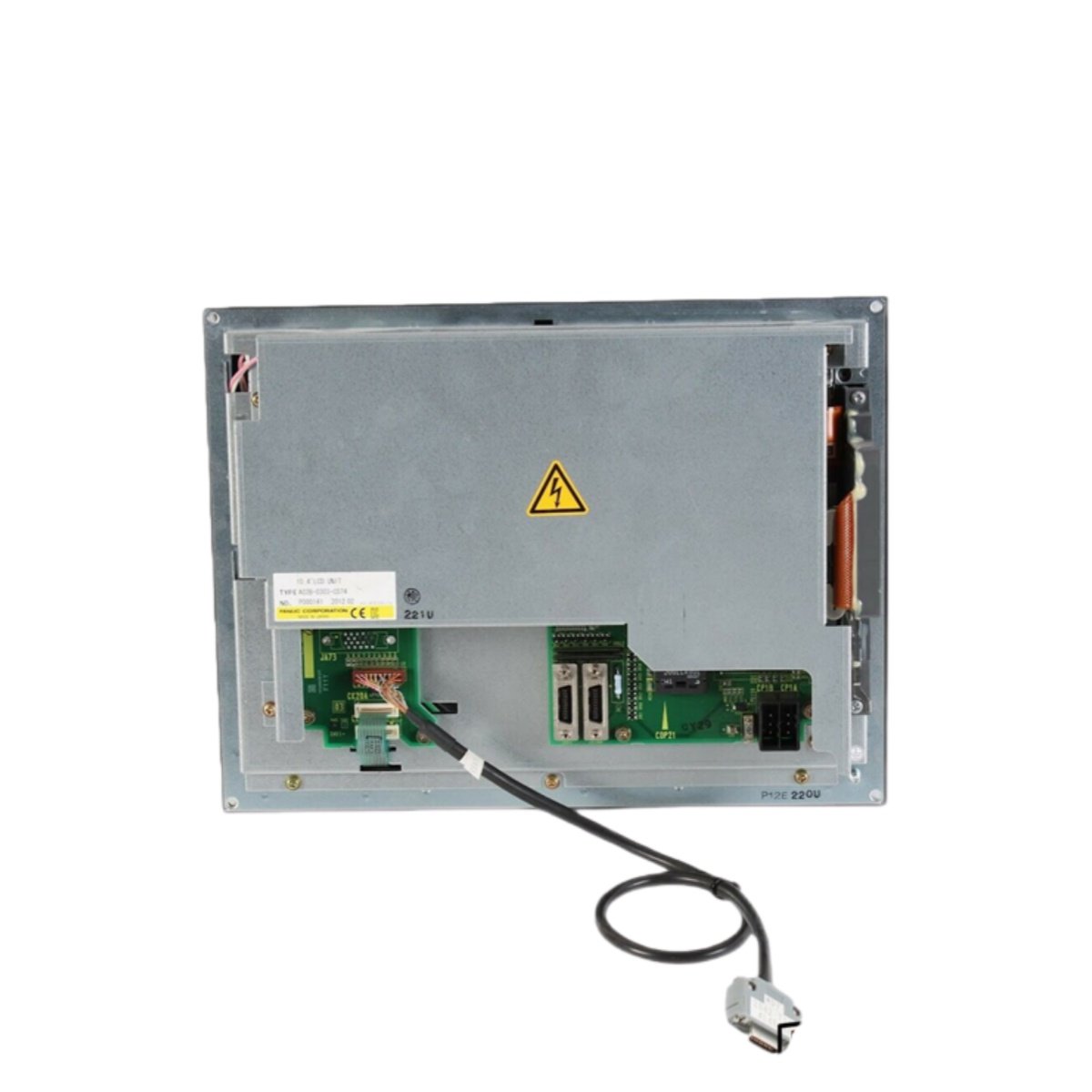

The A02B-0303-C074 measures standard operator interface dimensions for seamless integration into CNC machine enclosures. This display unit connects directly to 30i control architectures, receiving video signals and power through dedicated interface cables. The ruggedized construction withstands vibration, coolant mist, and temperature variations common in metalworking environments.

Technical Specifications Overview

Details
