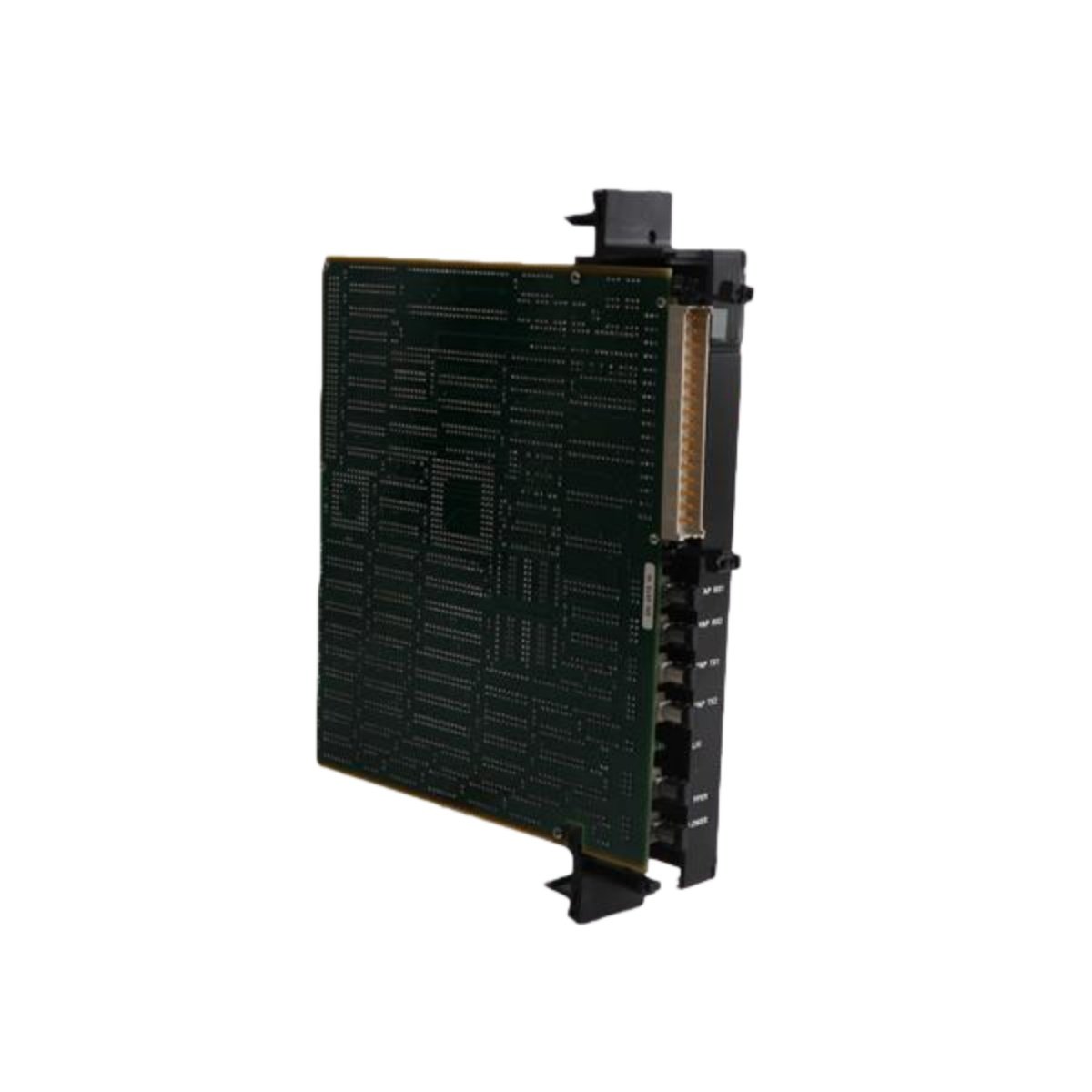

The GE 531X128HMSADG1 provides reliable DC power for Excitation Control Systems and drives applications. This power supply module converts AC line voltage to regulated DC outputs for control electronics. It forms an essential component within GE’s innovative Excitation Control System product line. The 531X128HMSADG1 ensures stable operation of connected control boards and field devices. Engineers depend on this module for consistent power delivery in critical generation applications.

Technical Specifications and Physical Characteristics

Precise technical specifications enable proper integration of the GE 531X128HMSADG1 into excitation control cabinets. The module’s robust construction supports continuous operation in demanding power generation environments.

Multiple Output Capabilities

The 531X128HMSADG1 generates multiple DC voltages from a single AC input source. It produces a primary +5 Vdc rail for digital logic circuits throughout the system. Secondary ±15 Vdc outputs power analog circuits and signal conditioning components. The +24 Vdc output supports field devices and interface circuits directly. This multi-output design eliminates the need for separate power supplies in the cabinet. Each output includes filtering capacitors for reduced ripple and noise.

Robust Construction and Component Layout

Engineers recognize the GE 531X128HMSADG1 for its substantial component population and rugged design. The circuit board contains between 8 and 12 electrolytic capacitors for energy storage. These capacitors maintain output voltage during brief input power interruptions. The module uses through-hole components for enhanced mechanical reliability in vibration-prone environments. Input and output connections utilize both terminal blocks and edge connectors. This dual-connection approach simplifies wiring while ensuring secure signal transfer.

Protection and Reliability Features

The 531X128HMSADG1 incorporates multiple protection circuits for system safety. Overcurrent protection limits output current during fault conditions automatically. Overvoltage protection prevents excessive voltage from reaching sensitive downstream electronics. Input fusing provides primary protection against catastrophic failures. The module’s natural convection cooling eliminates fan maintenance requirements. This design choice enhances long-term reliability in continuous duty applications.

Seamless Integration with Excitation Control Systems

The GE 531X128HMSADG1 mounts directly within Excitation Control System racks and panels. It connects to the backplane through its edge connector for power distribution. Terminal blocks accommodate field wiring for AC input and DC outputs. Similar to protection devices like the RMS TSG TZ C Static Trip unit, this power supply ensures system integrity. Its multiple outputs power the various circuit boards within the excitation system. Engineers appreciate the selectable input voltage for global installation flexibility.

Application in Power Generation

The 531X128HMSADG1 plays a vital role in generator excitation control applications. It provides clean power to regulator boards and firing circuits. The ±15 Vdc outputs supply analog measurement circuits with precision voltages. Digital circuits rely on the +5 Vdc rail for reliable processor operation. Field interface circuits use the +24 Vdc output for contact inputs and relay outputs. This power supply supports the critical function of generator voltage regulation.
