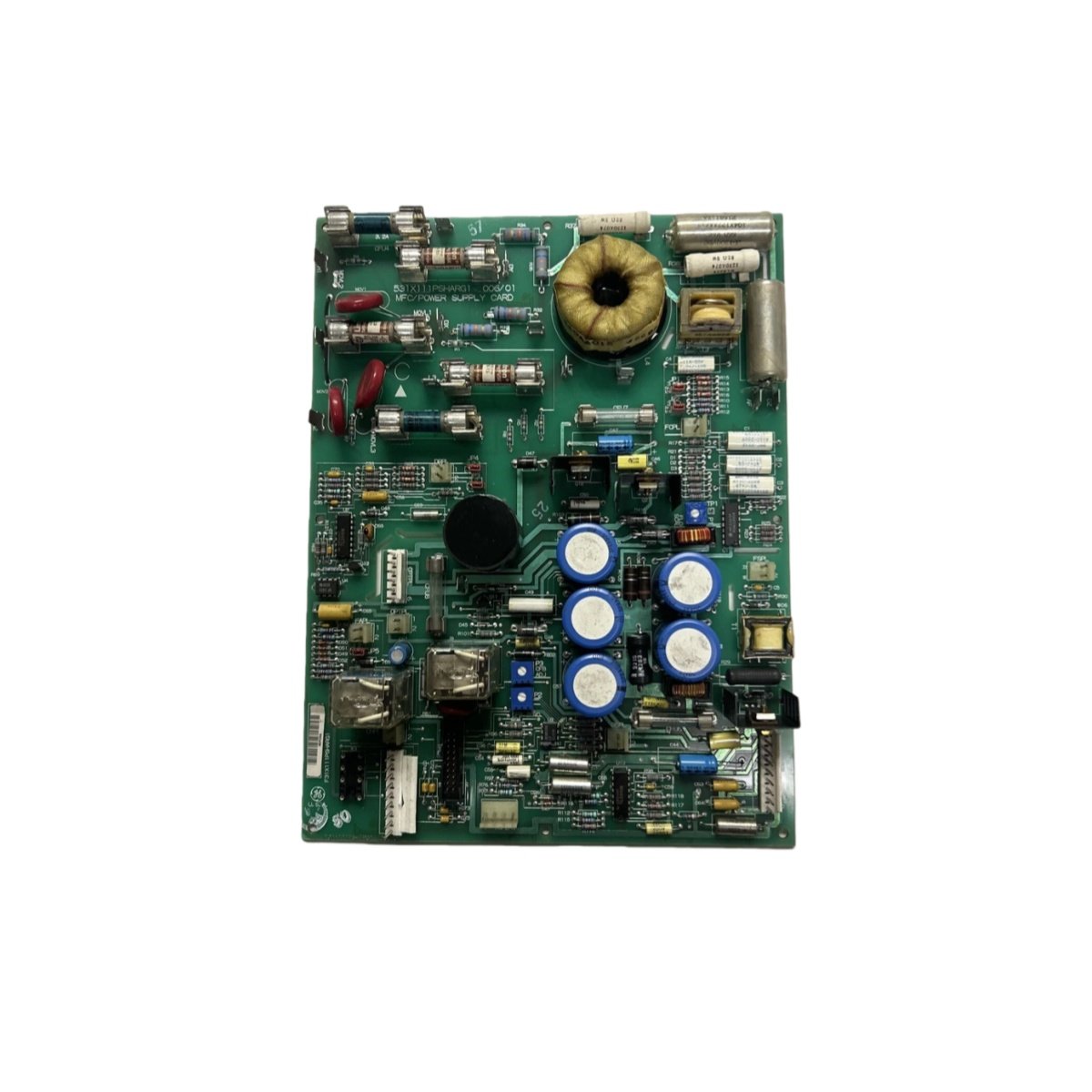

The GE 531X111PSHARG1 operates as a dedicated power supply card within the SPEEDTRONIC Mark V series, delivering regulated voltage to associated control modules. This board converts incoming AC power into multiple DC outputs for logic circuits and I/O devices. It consequently ensures stable and uninterrupted operation throughout the entire control system.

Physical Characteristics and Build Quality

Engineers constructed this power supply card using flame-retardant epoxy material with heavy-duty copper traces for high current handling. The board measures approximately 28 centimeters in height and 23 centimeters in width, fitting standard Mark V rack positions. Its total weight reaches roughly 1.2 kilograms due to the substantial transformer and filtering components. The robust construction exemplifies GE’s engineering standards for critical power applications.

Technical Specifications

Input Stage Design

The input section accepts either 115 VAC or 230 VAC through a user-selectable voltage selector. A built-in EMI filter reduces conducted noise back to the AC mains supply. The primary circuit includes a slow-blow fuse for overcurrent protection during fault conditions. Transient suppression devices clamp voltage spikes from the incoming power line.

DC Output Regulation

The 531X111PSHARG1 generates three isolated DC outputs for different sections of the Mark V system. Linear regulation techniques provide clean power with minimal ripple for sensitive analog circuits. The +5 VDC supply powers all digital logic components throughout the control rack. Additionally, the +15 VDC outputs serve analog input modules requiring positive supply rails.

Energy Storage and Filtering

Large electrolytic capacitors store sufficient energy to ride through brief AC power interruptions. These 2200 µF capacitors maintain output voltages within specification during 20-millisecond power dips. Multiple smaller capacitors filter high-frequency noise from switching transients. This energy storage capacity proves essential for maintaining system integrity during line disturbances.

Protection Features

The power supply incorporates comprehensive protection mechanisms to safeguard both itself and connected modules. Overcurrent protection limits output current during short-circuit conditions on any rail. Overvoltage protection triggers a crowbar circuit if outputs exceed safe voltage levels. Thermal shutdown prevents damage if internal temperature rises above the maximum rating.

Mark V System Integration

This power supply card mounts directly into the designated slot within the Mark V rack assembly. The gold-plated edge connector interfaces with the backplane to distribute power to all modules. A status LED on the front panel indicates proper output voltage presence. The GE 531X111PSHARG1 works alongside redundant power supplies for high-availability configurations.

Cooling and Thermal Management

An integral aluminum heatsink dissipates heat from the main pass transistors and regulator circuits. The card relies on natural convection within the cabinet for adequate cooling. Engineers designed component placement to optimize airflow across hot spots. You must ensure proper ventilation around the rack to maintain reliable operation.

Diagnostic Indicators

Front-panel LEDs provide immediate visual confirmation of power supply status. A green LED illuminates when all DC outputs fall within acceptable voltage ranges. Individual red LEDs indicate specific fault conditions like overvoltage or overtemperature. These indicators greatly simplify troubleshooting during system startup or maintenance.
