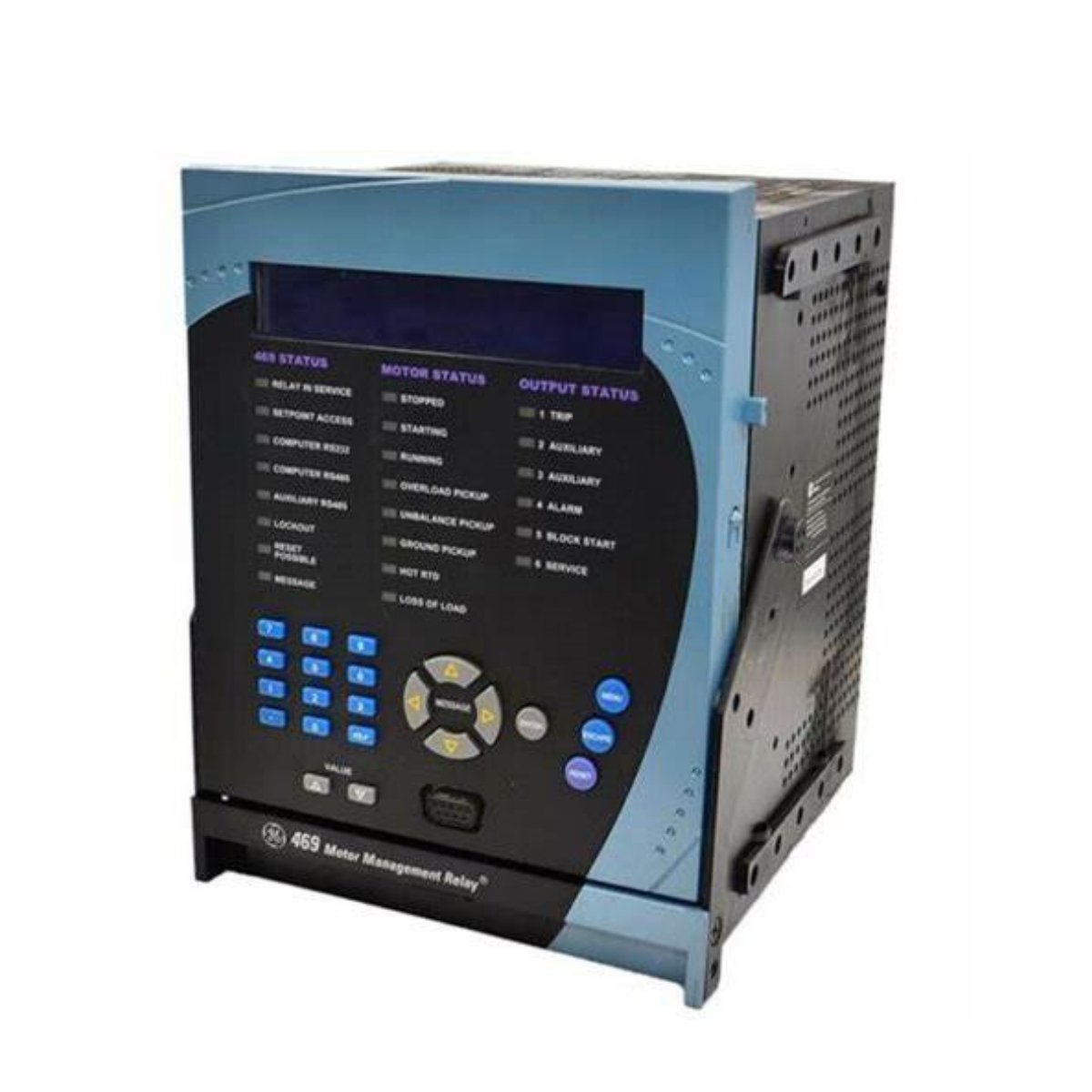

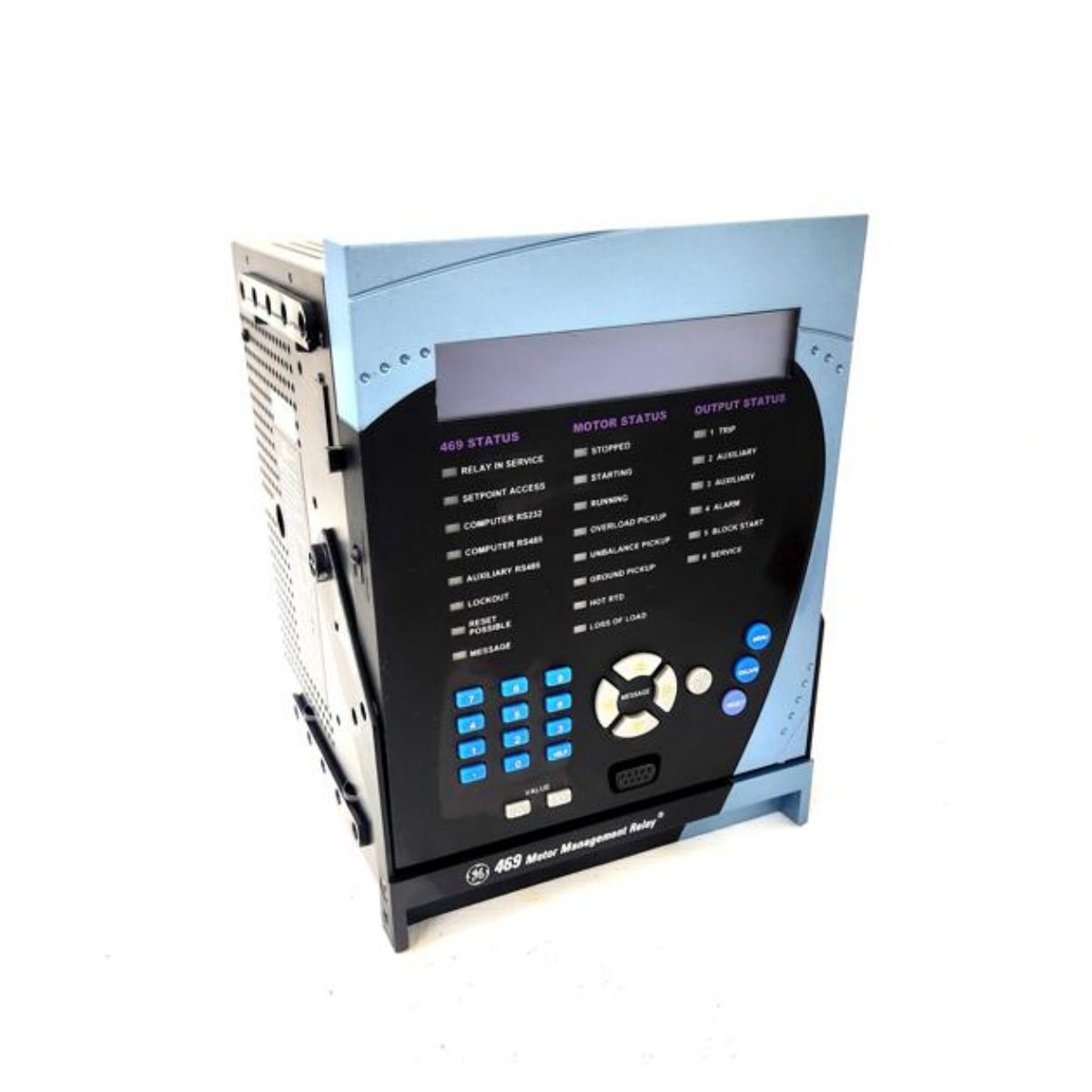

The 469-P5-HI-A20-T-H from GE Multilin is a robust motor management relay designed to provide precise monitoring and protection for industrial motors. This relay integrates seamlessly into advanced automation systems, offering reliable analog outputs, multiple communication options, and wide power supply support. Its modular design ensures effective motor protection in demanding industrial environments.
Key Features
Supports high-power DC operation from 90–300 VDC and AC supply from 70–265 VAC.
Provides accurate phase current inputs via 5A phase CT secondaries.
Includes four configurable 4–20 mA analog outputs for control systems.
Offers multiple communication ports: RS232, RS485, and optional Ethernet 10Base-T.
Compatible with Modbus RTU protocol for flexible industrial integration.
Compact yet durable design optimized for heavy-duty motor control environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 469-P5-HI-A20-T-H |
| Series | 469 Motor Management Relay |
| Manufacturer | GE Multilin |
| Power Supply (DC) | 90–300 VDC |
| Power Supply (AC) | 70–265 VAC, 48–62 Hz |
| Phase Current Inputs | 5 A CT secondary per phase |
| Analog Outputs | 4 outputs, 4–20 mA |

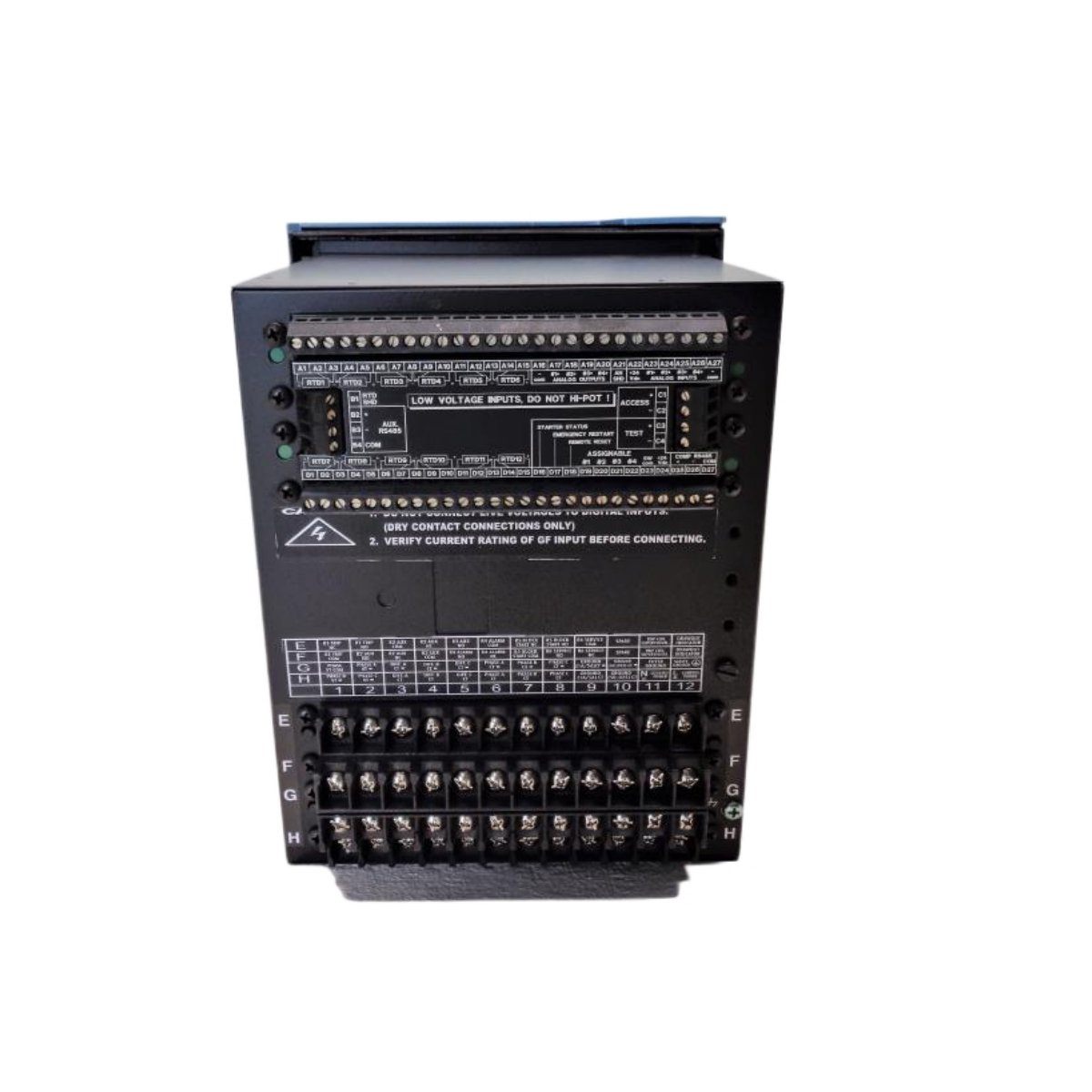

| Communication Ports | 1 x RS232 (front), 2 x RS485 (rear), 1 x RS485 auxiliary |
| Protocol | Modbus RTU |
| Ethernet Option | 10Base-T |
| Operating Temperature | -20°C to +60°C (typical industrial range) |
| Humidity | 5%–95% non-condensing |
| Mounting | Panel or enclosure installation |
| Weight | 7.71 kg (17 lbs) |
Physical Dimensions
| Dimension | Size |
|---|---|
| Height | 8.8 in (223.5 mm) |
| Width | 8.52 in (216.5 mm) |
| Depth | 9.93 in (252 mm) |
| Weight | 7.71 kg (17 lbs) |
Product Origin
Made in the USA
Applications
The 469-P5-HI-A20-T-H relay safeguards industrial motors by monitoring phase currents, providing analog outputs for control, and enabling remote communication through Modbus or Ethernet. It is suitable for heavy-duty motor protection, industrial automation systems, and plant-wide monitoring setups.
Details
| Weight | 7.71 kg |
|---|---|
| Dimensions | 223.5 × 216.5 × 252 mm |
