Product Overview
The GE 369-HI-R-M-0-2-0-0 functions as a versatile I/O relay module within the Multilin 369 motor management relay system. This module provides additional input and output capacity for expanded protection and control capabilities in industrial motor applications. We engineered the 369-HI-R-M-0-2-0-0 to deliver reliable signal interface for critical motor protection schemes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) Multilin |
| Model Number | 369-HI-R-M-0-2-0-0 |
| Product Type | I/O Relay Module |
| Series | Multilin 369 Motor Management Relay |
| Digital Inputs | 8 channels, wet/dry contact configurable |
| Input Voltage Range | 24-125 VDC / 24-240 VAC |
| Input Impedance | 3.3 kΩ @ 125 VDC typical |
| Digital Outputs (Relay) | 4 channels, Form C (SPDT) |
| Output Contact Rating | 8 A @ 250 VAC / 30 VDC resistive |
| Output Contact Type | Electromechanical relays, silver alloy contacts |
| Analog Outputs | 2 channels, 4-20 mA isolated |
| Analog Output Accuracy | ±0.5% of full scale |
| Isolation Voltage | 2500 VAC input-to-output, output-to-ground |
| Power Consumption | 5 W maximum from base unit |
| Status Indicators | Per-channel LED for input/output status |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Temperature | -50°C to 85°C (-58°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 180 mm x 45 mm x 150 mm (approx.) |
| Weight | 0.6 kg (1.32 lbs) |
| Mounting | Plugs into 369 base unit expansion slot |
| Connectors | 20-pin expansion connector, removable terminal blocks |
| Wire Gauge | 14-22 AWG for field connections |
| Certifications | UL, CSA, CE, RoHS |
Key Features and Benefits
Expanded I/O Capacity: The adds eight digital inputs and four relay outputs to the base 369 relay. You therefore monitor more field contacts and control additional devices without extra hardware.
Flexible Input Compatibility: Each digital input accepts a wide range of voltages from 24 to 240 VAC or DC. Consequently, you connect directly to various field devices without external converters or signal conditioners.
High-Capacity Output Relays: The four Form C relays switch up to 8 amps for direct control of contactors and solenoids. You eliminate intermediate relays in many applications, simplifying panel wiring and reducing cost.
Isolated Analog Outputs: Two 4-20 mA outputs provide retransmission of motor current, temperature, or other parameters. Therefore, you connect directly to chart recorders, remote displays, or control systems.
Clear Status Indication: Individual LEDs show the current state of each input and output channel. You quickly verify operation and troubleshoot wiring issues without additional test equipment.
Detailed Functional Description
The primary function of the GE involves expanding the I/O capability of the Multilin 369 motor protection relay. Specifically, it plugs into the expansion slot on the 369 base unit and communicates through the internal expansion bus. The module makes additional digital inputs available for monitoring auxiliary contacts, switch positions, or external trip signals. Its four relay outputs provide extra control capacity for annunciation, motor start/stop, or interlocking functions. The two analog outputs continuously transmit selected motor parameters for remote monitoring or trending.
Input Characteristics and Performance
We designed the digital inputs of the 369-HI-R-M-0-2-0-0 for maximum flexibility:
| Parameter | Value |
|---|---|
| Input Voltage Range | 24-125 VDC / 24-240 VAC, 50/60 Hz |
| Input Current | 3-10 mA typical depending on voltage |
| ON Threshold | > 70% of nominal voltage |
| OFF Threshold | < 30% of nominal voltage |
| Response Time | < 10 ms typical |
| Input Type | Optically isolated, polarity insensitive |
You configure each input individually as wet (voltage-sensing) or dry (contact-sensing) via relay software.
Output Relay Specifications
The four output relays provide robust switching capability:
Contact Configuration: Form C (SPDT) with common, normally open, normally closed terminals
Contact Material: Silver alloy with gold flash for low-level switching
AC Rating: 8 A @ 250 VAC, 2500 VA maximum (resistive)
DC Rating: 8 A @ 30 VDC, 240 W maximum (resistive)
DC Rating (Inductive): 3 A @ 125 VDC with appropriate snubbing
Electrical Life: 100,000 operations at rated load
Mechanical Life: 10 million operations minimum
Analog Output Details
The 369-HI-R-M-0-2-0-0 includes two isolated analog outputs:
| Parameter | Value |
|---|---|
| Output Type | 4-20 mA, self-powered (loop supply not required) |
| Maximum Load | 600 Ω |
| Accuracy | ±0.5% of full scale at 25°C |
| Temperature Drift | ±0.05% per °C |
| Update Rate | 50 ms typical |
| Assignable Parameters | Motor current (any phase), average current, temperature, etc. |
You assign any measured parameter to either analog output through the 369 relay configuration software.
Installation and Configuration
Engineers install the 369-HI-R-M-0-2-0-0 directly into the expansion slot of a Multilin 369 base unit. The process involves:
Removing power from the 369 relay
Aligning the module with the expansion slot guides
Pushing firmly to engage the internal connector
Securing with the front-panel retaining screws
Reapplying power and verifying proper recognition
Configuring input and output assignments via relay software
The base unit automatically detects the module and makes its I/O available for configuration.

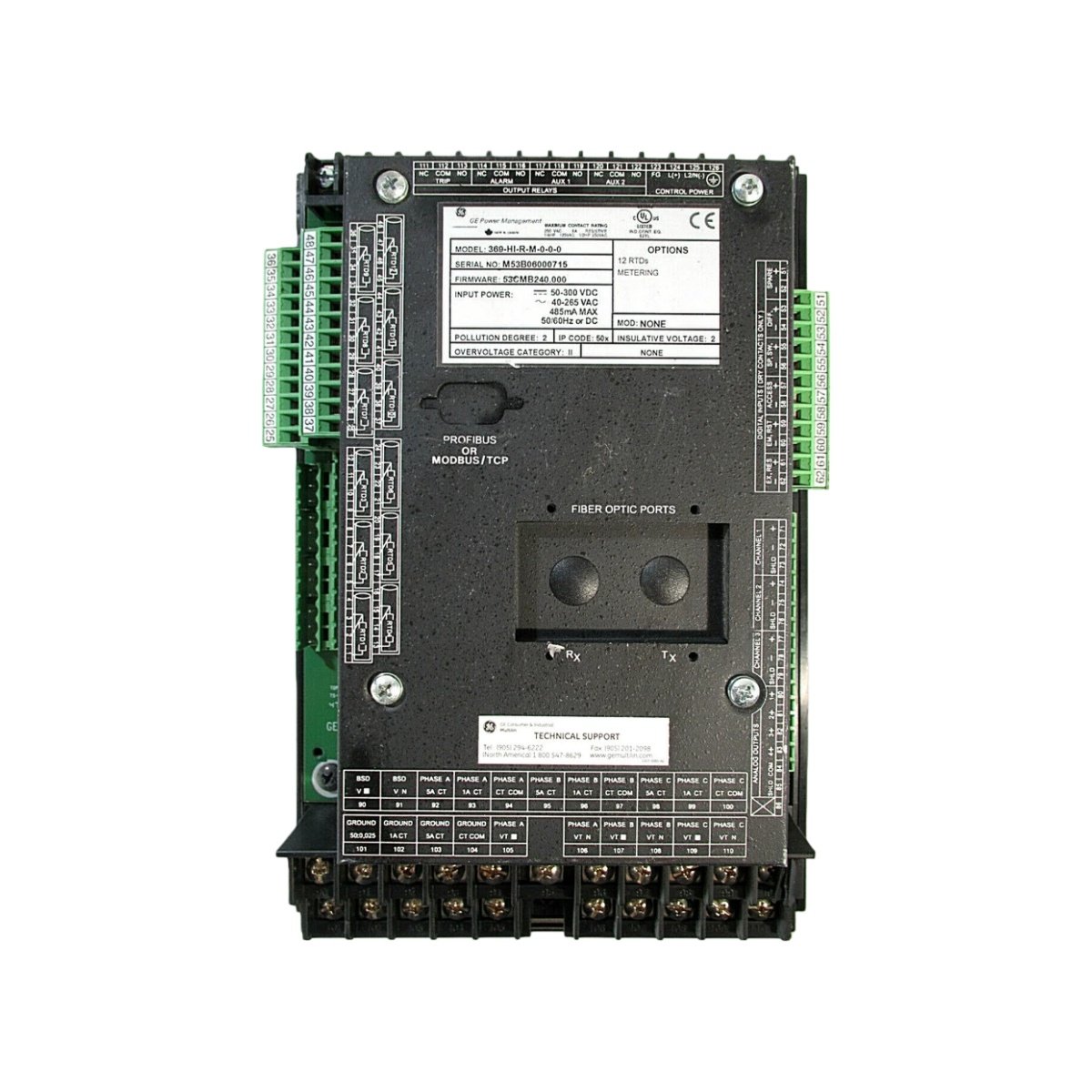

Mechanical Details
The GE features a rugged industrial design matching the 369 relay family. Its front panel provides:
Removable terminal blocks for all field wiring
Individual LED indicators for each input and output
Module identification label
Retaining screws for secure installation
The module shares the same physical form factor as the 369 base unit, creating a uniform appearance when installed.
Compatibility Information
The operates with the following GE Multilin products:
369 Motor Management Relay (all revisions)
369plus Motor Protection System
Requires base unit firmware version 3.0 or higher for full functionality
Common Industrial Applications
The GE 369-HI-R-M-0-2-0-0 enhances motor protection systems across industries:
| Application Area | Typical Use Case |
|---|---|
| Pump Stations | Monitoring suction/discharge pressures, controlling aux pumps |
| Compressor Skids | Monitoring vibration switches, controlling unloaders |
| Conveyor Systems | Monitoring pull cords and belt alignment, controlling brakes |
| HVAC Plants | Monitoring filter status, controlling chiller sequencing |
| Water Treatment | Monitoring flow switches, controlling chemical feed pumps |
| Mining Operations | Monitoring crusher level switches, controlling dust suppression |
Why Choose This Module?
Selecting the GE 369-HI-R-M-0-2-0-0 means choosing expanded I/O capability for your Multilin 369 motor protection system. You add eight digital inputs and four relay outputs without requiring separate I/O racks or additional enclosures. The wide-range inputs accept any control voltage from 24 to 240 V, simplifying wiring and reducing component count. High-capacity output relays drive contactors directly, saving panel space and cost. Isolated analog outputs provide remote monitoring of critical motor parameters for trending and analysis. For 369 systems requiring additional I/O, the 369-HI-R-M-0-2-0-0 delivers seamless integration and reliable performance.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
