The GE 369-HI-R-0-0-0-0-E serves as a comprehensive motor protection relay for industrial AC induction motors. This device safeguards critical motor assets against electrical faults and adverse operating conditions. It therefore ensures maximum uptime and extended equipment life in manufacturing facilities.
Key Technical Specifications
We engineered the GE to deliver reliable motor protection with precise monitoring capabilities. Its modular design allows flexible configuration for various motor sizes and applications.
| Parameter | Specification |
|---|---|
| Product Type | Motor Protection Relay |
| Series | 369 Motor Management Relay |
| Manufacturer | GE Multilin |
| Protection Functions | Overload, stall, jam, undercurrent, phase reversal |
| Input Voltage | 120 V AC control power |
| Current Inputs | 3-phase CT inputs (standard 1A or 5A) |
| Output Relays | Multiple form-C output contacts |
| Display | Backlit LCD for status and metering |
| Communication | RS485 Modbus RTU protocol |
| Mounting Style | Panel mount or semi-flush |
| Dimensions (Height) | Standard 369 series dimensions |
| Dimensions (Width) | Standard 369 series dimensions |
| Dimensions (Depth) | Standard 369 series dimensions |
| Weight | Approximately 5 lbs (2.27 kg) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Protection Rating | NEMA 12 / IP54 front panel |
| Wiring Terminals | Compression-type for secure connections |
Protection and Monitoring Features
The GE provides comprehensive thermal overload protection using accurate RTD inputs. It continuously monitors three-phase currents for conditions like jams, stalls, and undercurrent. The relay also detects phase reversal, unbalance, and ground faults immediately.
User Interface and Configuration

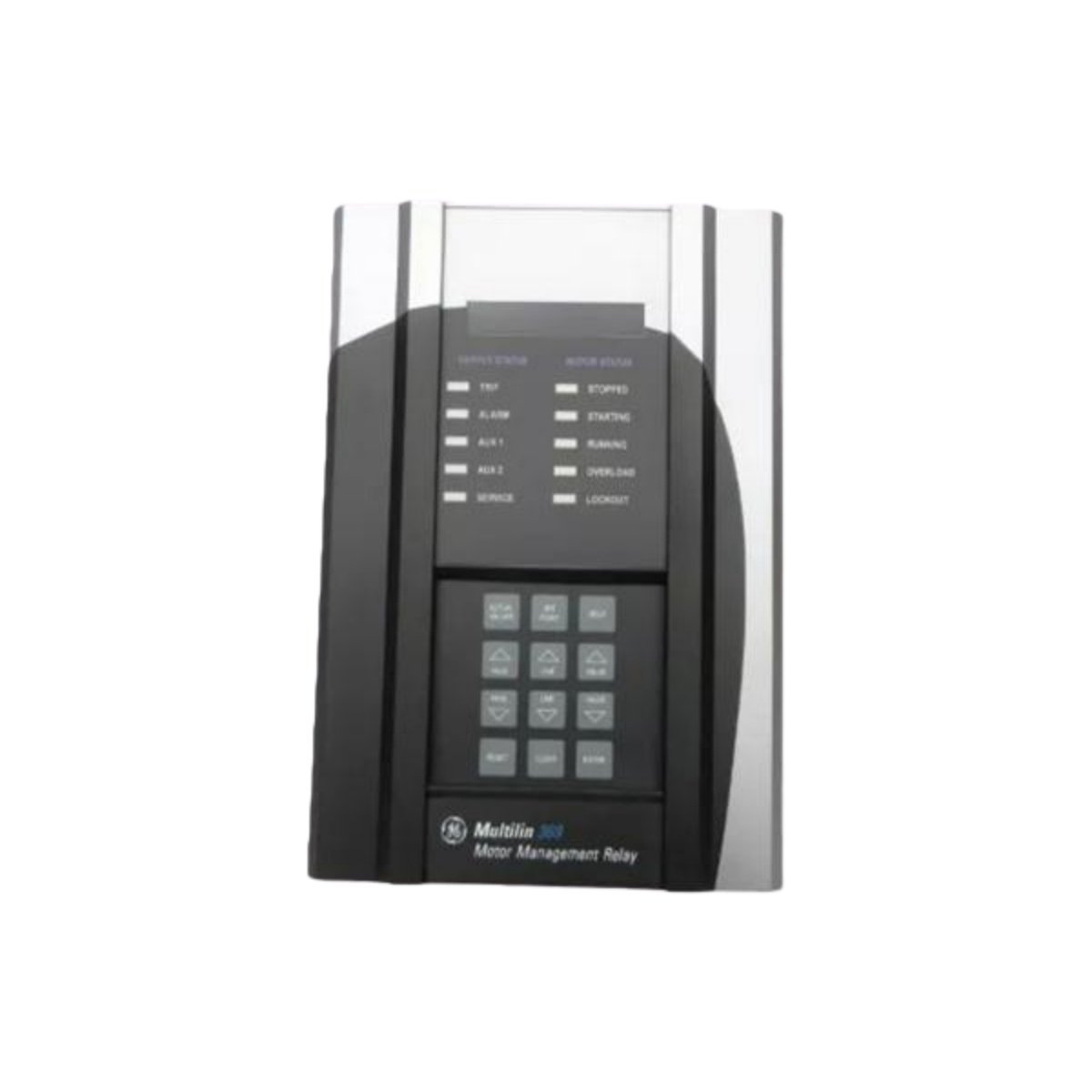

The GE 369-HI-R-0-0-0-0-E features an intuitive front panel with a backlit LCD display for real-time data. Users can easily configure protection parameters through the keypad interface. The relay stores event records for post-fault analysis and diagnostics.
Communication and Integration
The GE includes RS485 communication ports supporting Modbus RTU protocol. This connectivity enables seamless integration with plant SCADA and DCS systems. Operators can therefore monitor motor status and acknowledge alarms remotely.
Details
| Weight | 0.1 kg |
|---|---|
| Dimensions | 25 × 108 × 127 mm |
