This digital input module captures field device signals for PLC processing. It integrates seamlessly with the FUJI Micro-X series platform for consistent system architecture. Engineers choose this unit for its flexible wiring configuration and reliable signal detection.

Technical Specifications & Mechanical Data

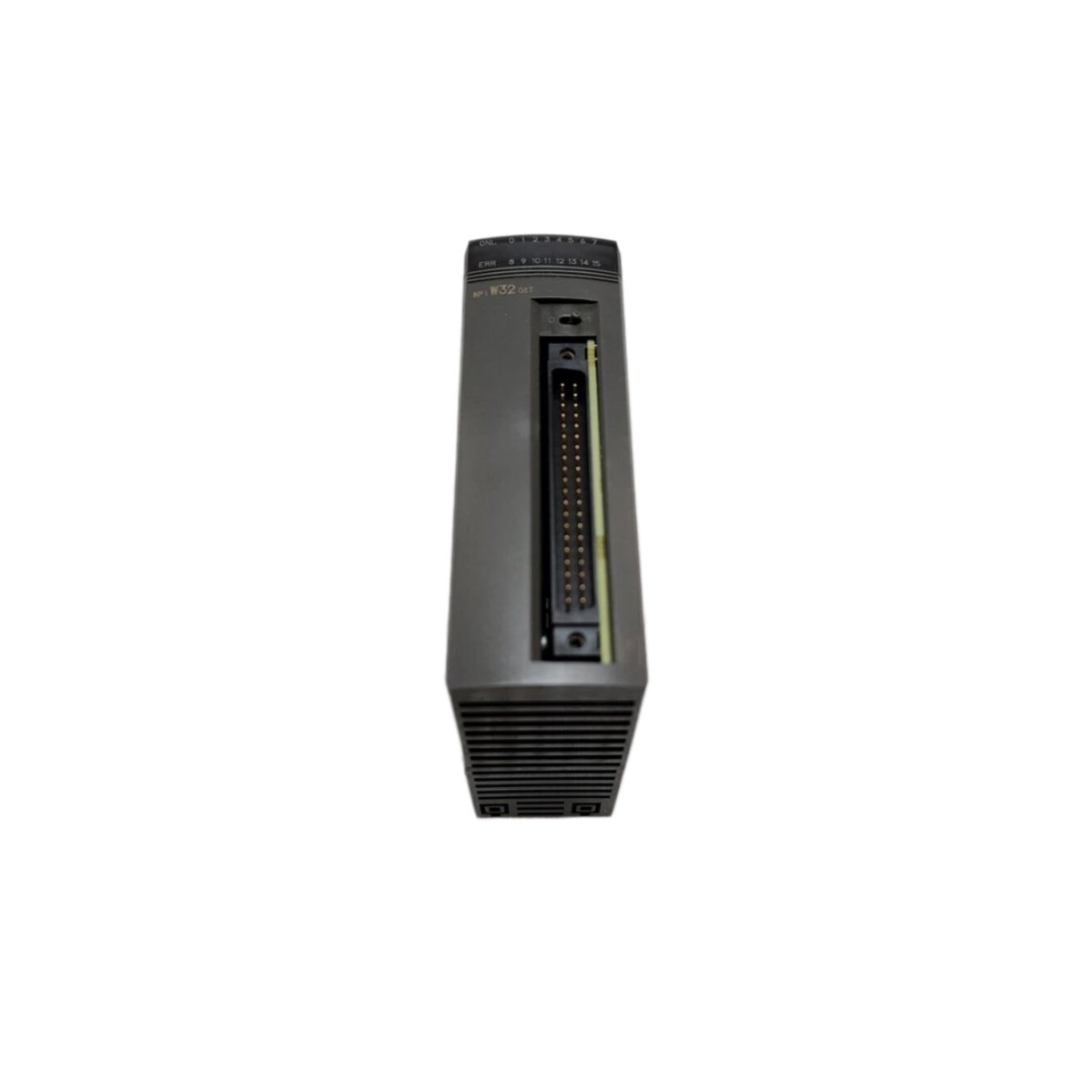

The FUJI NP1X1607-W provides sixteen discrete input channels for connecting sensors and switches. Each channel accepts 24V DC signals with both sink and source wiring options. The module uses opto-isolation to protect the backplane from electrical noise.

Design and Integration

This module occupies a single slot on the FUJI base board for efficient space utilization. It features visible LED indicators for each input channel on the front panel. Consequently, operators can monitor real-time signal status without additional testing equipment.

Furthermore, the NP1X1607-W supports both sink and source wiring configurations for maximum flexibility. Field technicians can adapt the module to existing wiring standards without hardware modifications. This design simplifies integration across diverse automation setups.

Performance and Reliability

The module operates reliably across a wide temperature range suitable for industrial environments. It stores no user data independently, relying instead on the CPU module for configuration. For industrial control applications, FUJI engineers designed this input module to deliver consistent performance in demanding conditions.
