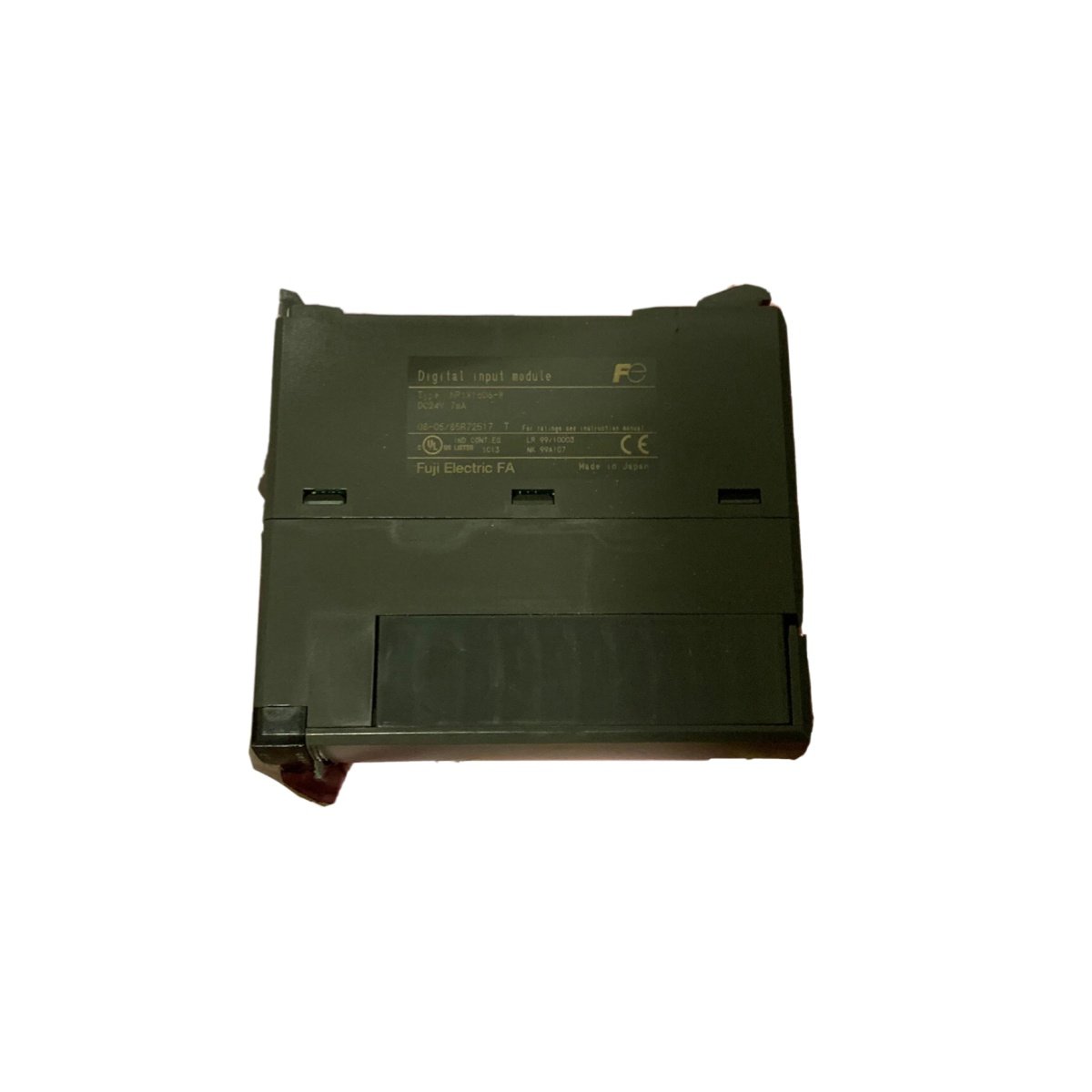

The FUJI NP1X1606-W functions as a high-density digital input module for the MICREX-SX series. This unit accepts 16 discrete input signals from field sensors and switches. It operates with a 24 V DC input voltage range. Consequently, you can monitor limit switches, push buttons, and proximity sensors reliably.
Technical Specifications and Physical Dimensions
The FUJI NP1X1606-W follows a compact, modular design for DIN-rail mounting. This module measures 120 mm in height, 70 mm in width, and 65 mm in depth. It weighs approximately 0.25 kilograms. The unit consumes 1.5 W of power from the backplane. Moreover, this digital input module provides optical isolation between field and logic circuits.
| Parameter | Specification |
|---|---|
| Brand | FUJI Electric |
| Model | NP1X1606-W |
| Product Type | Digital Input Module |
| Number of Inputs | 16 points |
| Input Voltage | 24 V DC (-15% to +20%) |
| Input Current | 7 mA per point |
| Isolation Method | Optocoupler (500 V AC) |
| Response Time | 1 ms (OFF to ON), 1.5 ms (ON to OFF) |
| Dimensions (H x W x D) | 120 x 70 x 65 mm |
| Weight | 0.25 kg (0.55 lbs) |
| Power Consumption | 1.5 W (typical) |
| Operating Temperature | 0°C to 55°C |
| Wiring Method | 20-pin connector |
Energy Storage and Diagnostic Features
The FUJI NP1X1606-W stores no energy internally for input retention. Each input channel includes an individual LED indicator for status monitoring. The module performs automatic self-diagnostics on every power cycle. Therefore, you can identify failed channels quickly from the front panel. For additional industrial components, you can explore the RMS-TSG-TZ-C Static Trip unit on Alibaba. Always verify compatibility before integrating third-party hardware.
Installation and Connectivity Details
You can mount the FUJI NP1X1606-W onto a standard DIN rail inside a control cabinet. This module requires a 20-pin connector for field wiring (sold separately). It supports both sink and source input wiring configurations. Furthermore, the unit provides high-speed response suitable for high-speed counter applications.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
