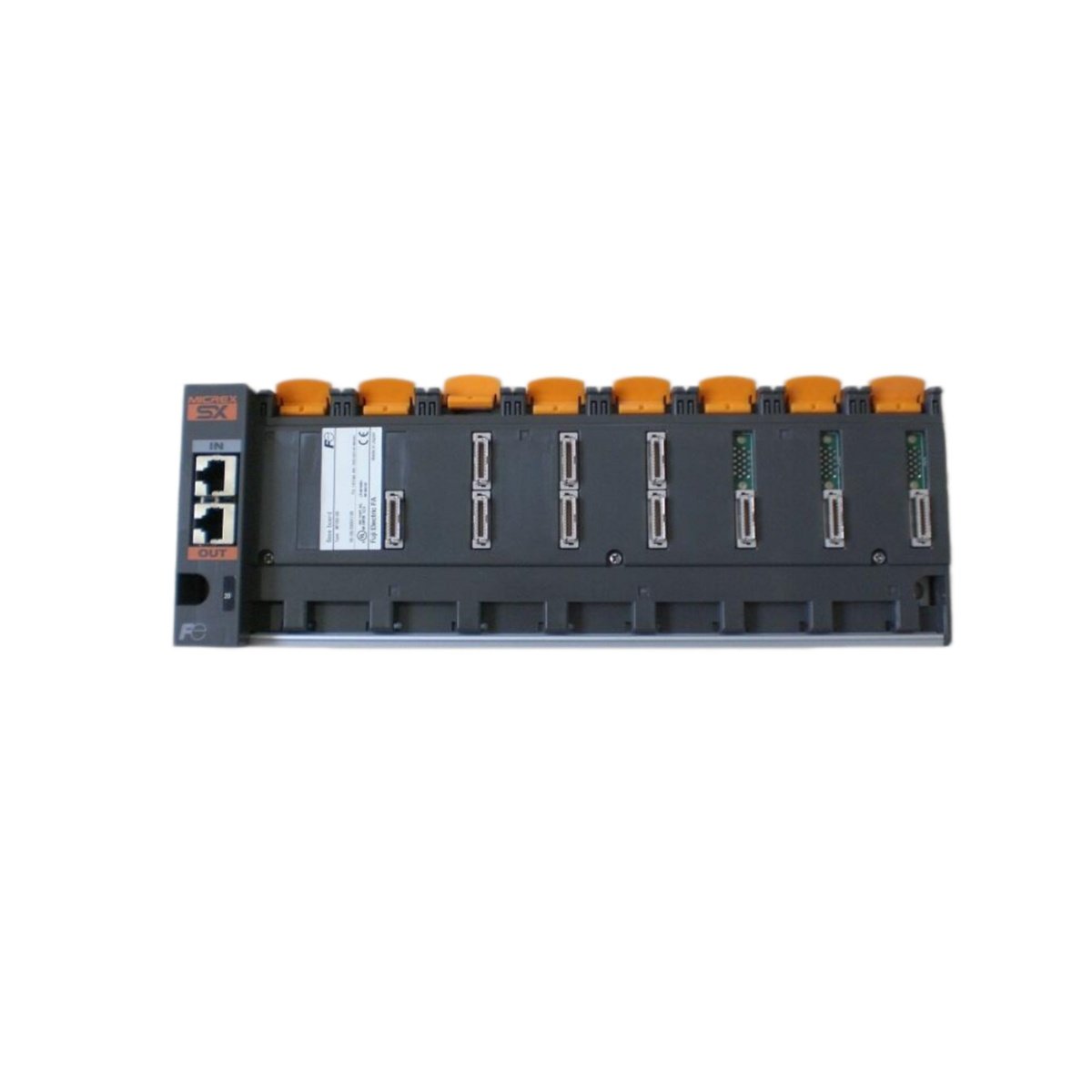

The FUJI NP1BS-13D functions as a base board for the NP1 series programmable controller system. Fuji Electric designed this component for mounting I/O modules and providing backplane communication. This unit establishes the physical and electrical foundation for NP1 control configurations.
Module Mounting Capacity
This base board accommodates up to 13 I/O modules in a single assembly. It provides dedicated slots for secure module installation and retention. Therefore, users can build compact control systems with substantial I/O density.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Fuji Electric |
| Model | NP1BS-13D |
| Category | Base Board |
| Series | NP1 |
| Slot Count | 13 |
| Component Count | Backplane traces, connectors, mounting hardware |
| Connectors | 13 x module connectors, power connector |
| Weight | Approximately 3.20 lbs (1.45 kg) |
| Dimensions | 18.5 x 5.2 x 1.8 inches |
| Mounting | DIN rail or panel mount |
Backplane Architecture
The FUJI NP1BS-13D integrates a backplane for distributing power and communication signals. It routes data between the CPU and connected I/O modules efficiently. Moreover, the backplane design minimizes signal interference for reliable system operation.
Power Distribution
This base board distributes power to all installed modules through the backplane connections. It accepts external power input through a dedicated power connector. Consequently, modules receive consistent voltage levels without individual wiring requirements.
Physical Characteristics and Installation
Measuring approximately 18.5 inches in length, this base board provides ample space for 13 modules. It weighs roughly 3.20 lbs for straightforward mounting to DIN rails or panels. The rigid construction maintains alignment for proper module insertion and removal.
Interface Configuration
This base board features 13 module connectors for accepting NP1 series I/O and CPU modules. Each connector provides both power and signal pathways for seamless integration. Additionally, the power connector simplifies field wiring by consolidating external connections.
System Integration
This base board belongs to the Fuji NP1 series programmable controller product family. It supports CPU modules, digital I/O, analog I/O, and specialty modules. Consequently, users can configure flexible control solutions tailored to specific application requirements. The FUJI NP1BS-13D provides essential infrastructure for facilities building NP1-based automation systems requiring organized module mounting and reliable backplane communication.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
