This base board provides the physical backbone for modular PLC system assembly. It belongs to the FUJI Micro-X series, ensuring consistent compatibility with all series-specific components. Engineers select this rack for organizing multiple I/O modules in a single enclosure.

Technical Specifications & Mechanical Data

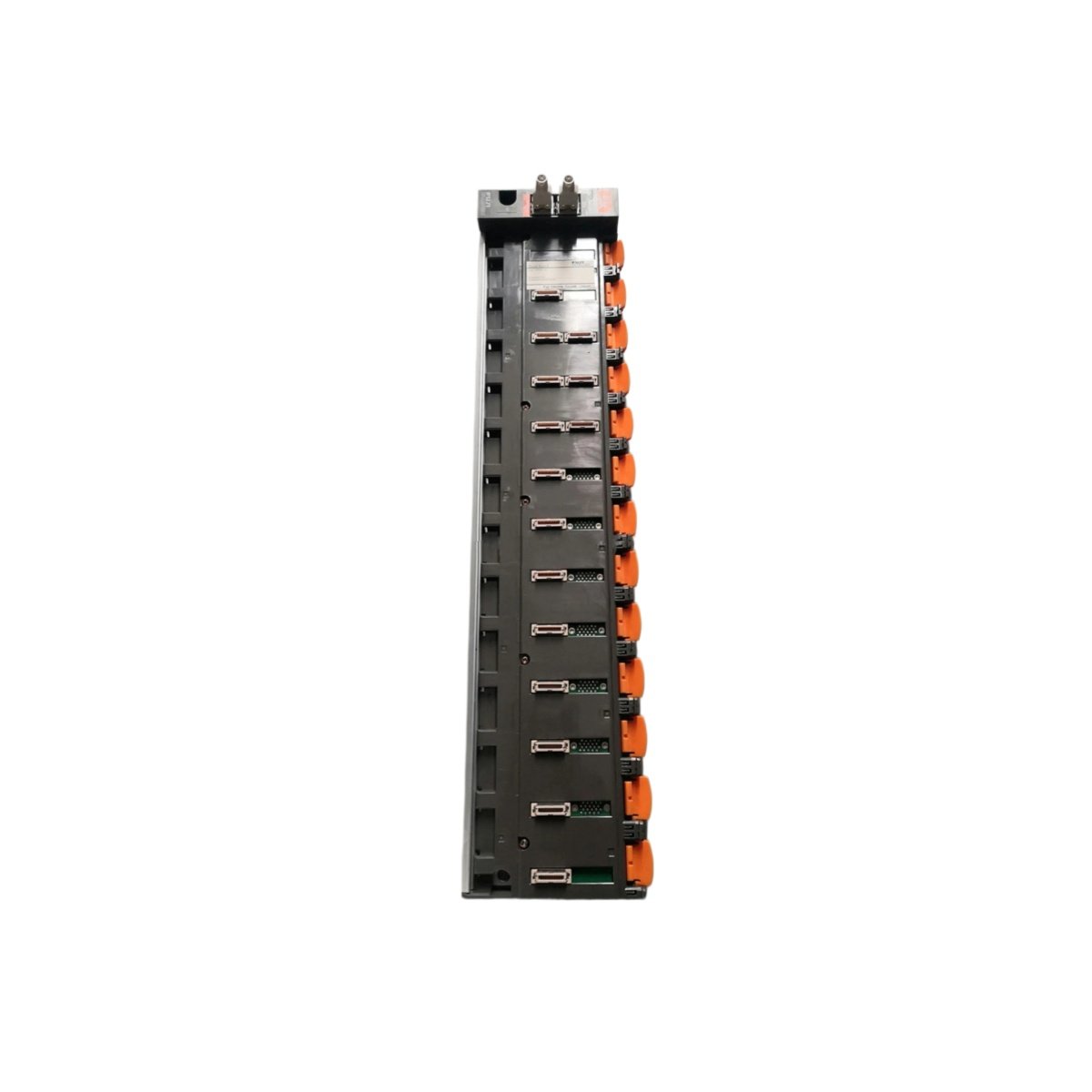

The FUJI NP1BP-13D accommodates up to thirteen individual I/O modules in a horizontal configuration. Its backplane distributes power and communication signals across all connected units. The board requires mounting within a control cabinet for proper operation.

Design and Integration

This base board features mechanical keying slots to prevent incorrect module insertion. Each slot includes guide rails that align modules securely during installation. Consequently, field technicians can replace or add modules without complex reconfiguration.

Moreover, the NP1BP-13D incorporates a robust backplane PCB with multi-layer signal routing. This design minimizes electrical noise between adjacent modules for stable operation. Operators can arrange modules in any order based on system requirements.

Performance and Reliability

The board dissipates heat effectively through its metal mounting base and open-frame construction. It stores no active components, serving purely as a passive distribution platform. For industrial control applications, FUJI engineers designed this rack to withstand vibration and temperature variations commonly found in factory environments.
