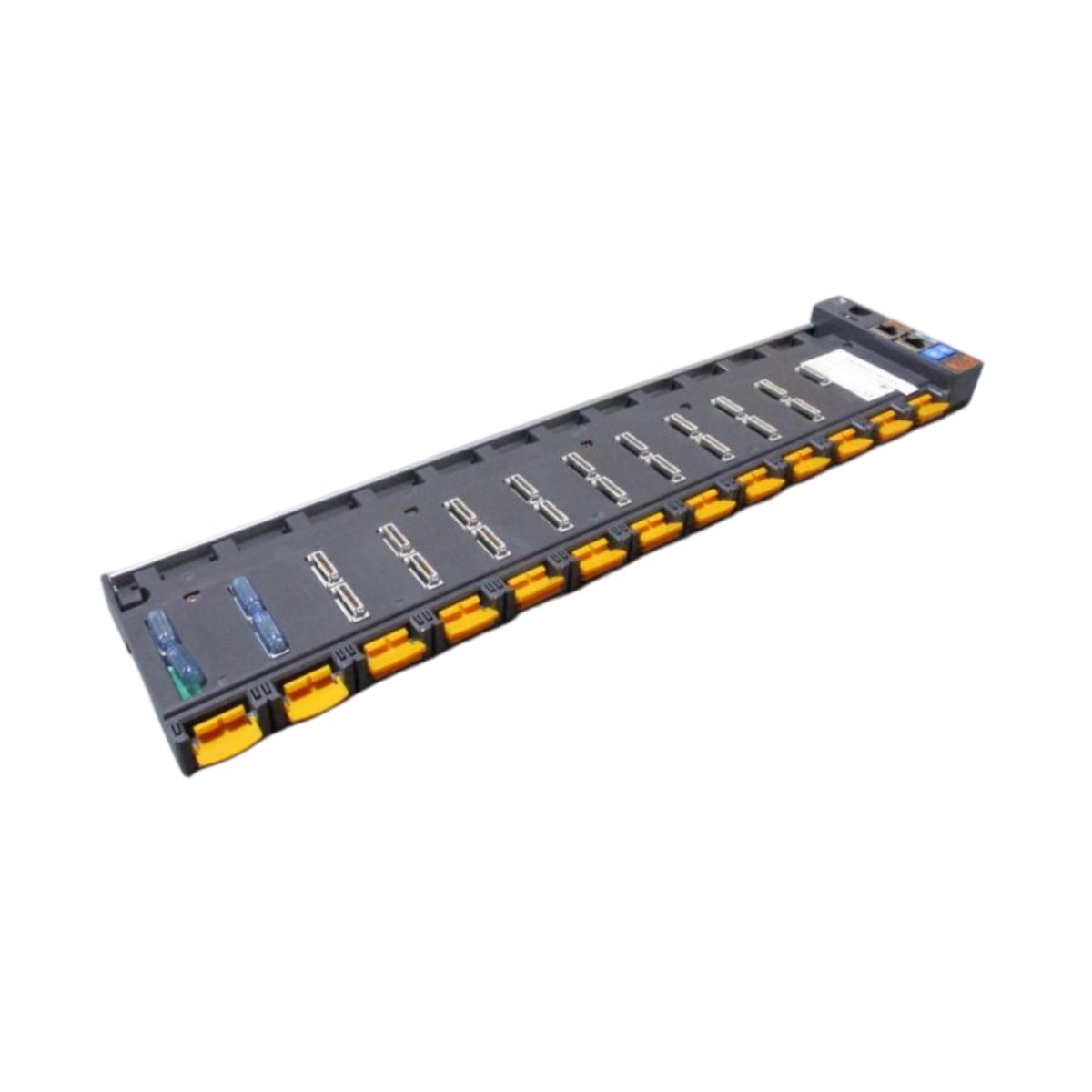

The FUJI NP1BP-13 functions as a base board with an integrated power supply unit for the NP1 series system. Fuji Electric designed this component for mounting I/O modules while providing onboard power conversion. This unit combines backplane connectivity with power distribution in a single assembly.
Power Supply Integration
This base board incorporates a power supply unit for converting incoming AC power to DC. It delivers regulated voltage to all installed modules through the backplane. Therefore, users eliminate the need for separate external power supply components.
Module Mounting Capacity
The FUJI NP1BP-13 accommodates up to 13 I/O modules across its dedicated slots. It provides secure mounting points for NP1 series CPU and I/O modules. Consequently, facilities can build complete control systems with compact footprint requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Fuji Electric |
| Model | NP1BP-13 |
| Category | Base Board with Power Supply |
| Series | NP1 |
| Slot Count | 13 |
| Power Supply Type | Integrated AC to DC converter |
| Component Count | Power supply components, backplane traces, connectors |
| Connectors | 13 x module connectors, AC input terminals |
| Energy Storage | Capacitor bank for filtering |
| Weight | Approximately 4.50 lbs (2.04 kg) |
| Dimensions | 18.5 x 6.2 x 2.4 inches |
| Mounting | DIN rail or panel mount |
Backplane Architecture
This base board integrates a backplane for distributing power and communication signals. It routes data between the CPU and connected modules with minimal latency. Moreover, the backplane design maintains signal integrity across all 13 slots.
Power Distribution and Filtering
The onboard power supply includes a capacitor bank for filtering incoming AC power. This arrangement reduces electrical noise for stable DC output. Consequently, connected modules receive clean power for reliable operation in industrial environments.
Physical Characteristics
Measuring approximately 18.5 inches in length, this base board supports full system expansion. It weighs roughly 4.50 lbs due to the integrated power supply components. The robust construction ensures proper alignment for module insertion and removal over time.
System Integration
This base board belongs to the Fuji NP1 series programmable controller product family. It supports CPU modules, digital I/O, analog I/O, and specialty communication modules. The FUJI NP1BP-13 provides essential infrastructure for facilities requiring combined power supply and backplane functionality within NP1-based automation systems.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
