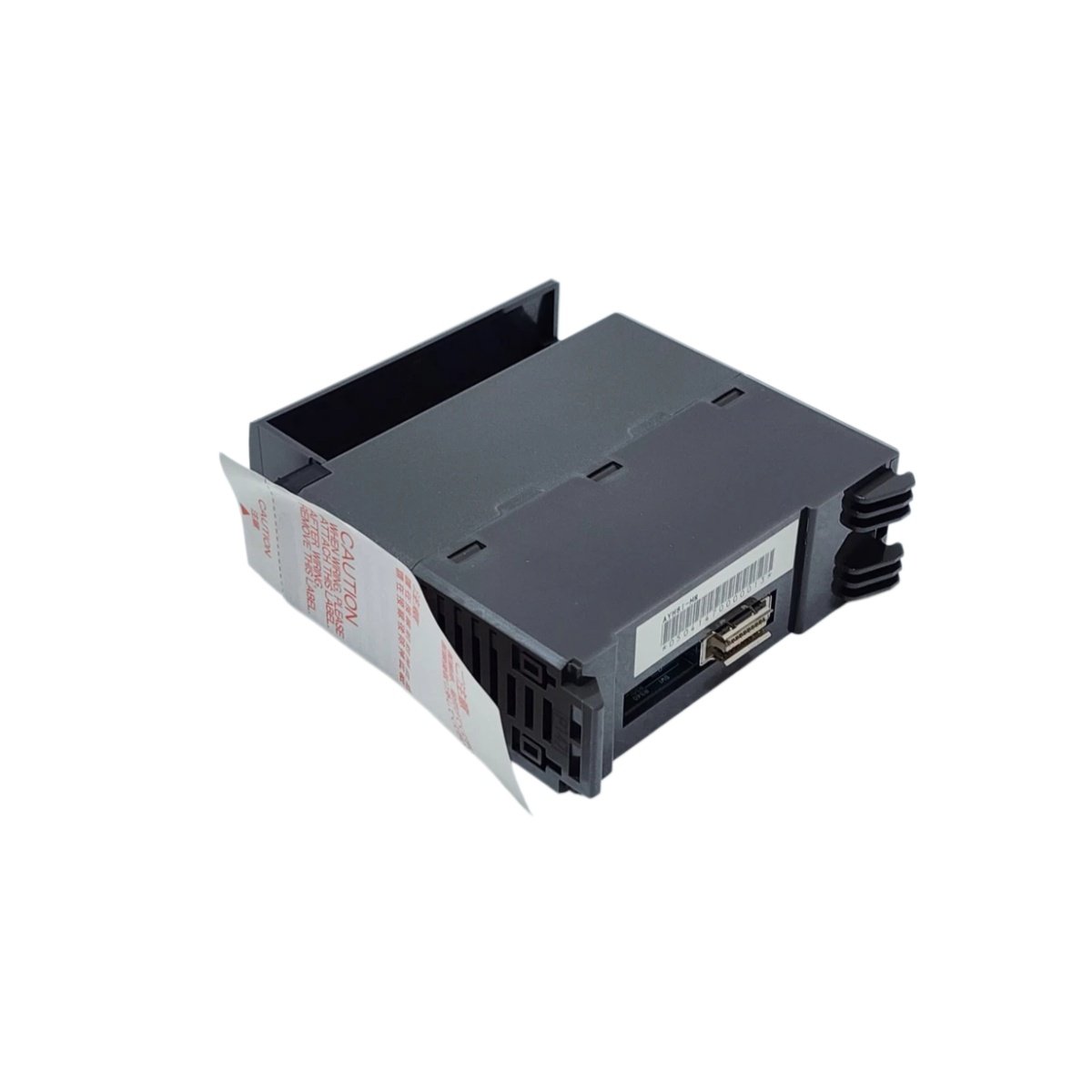

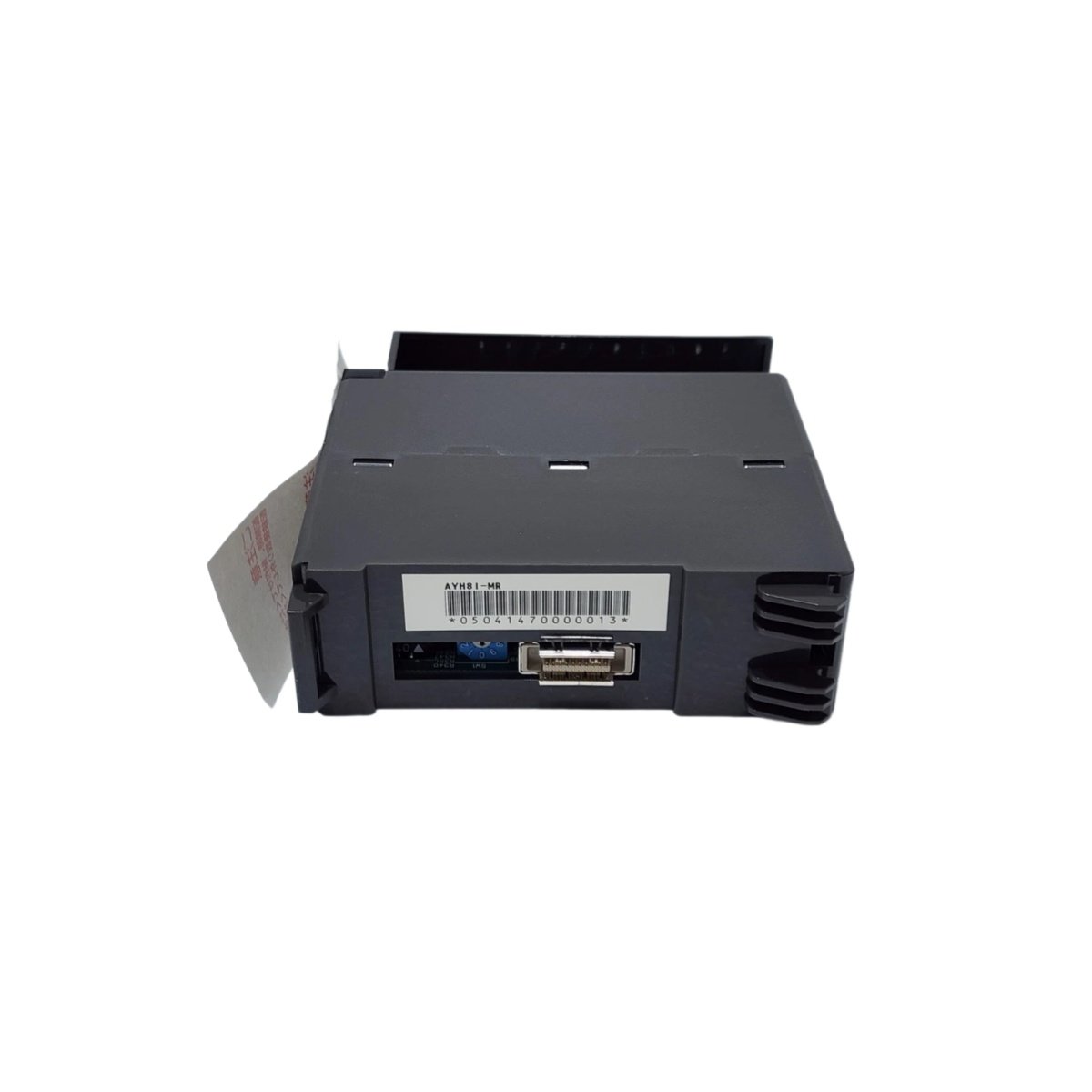

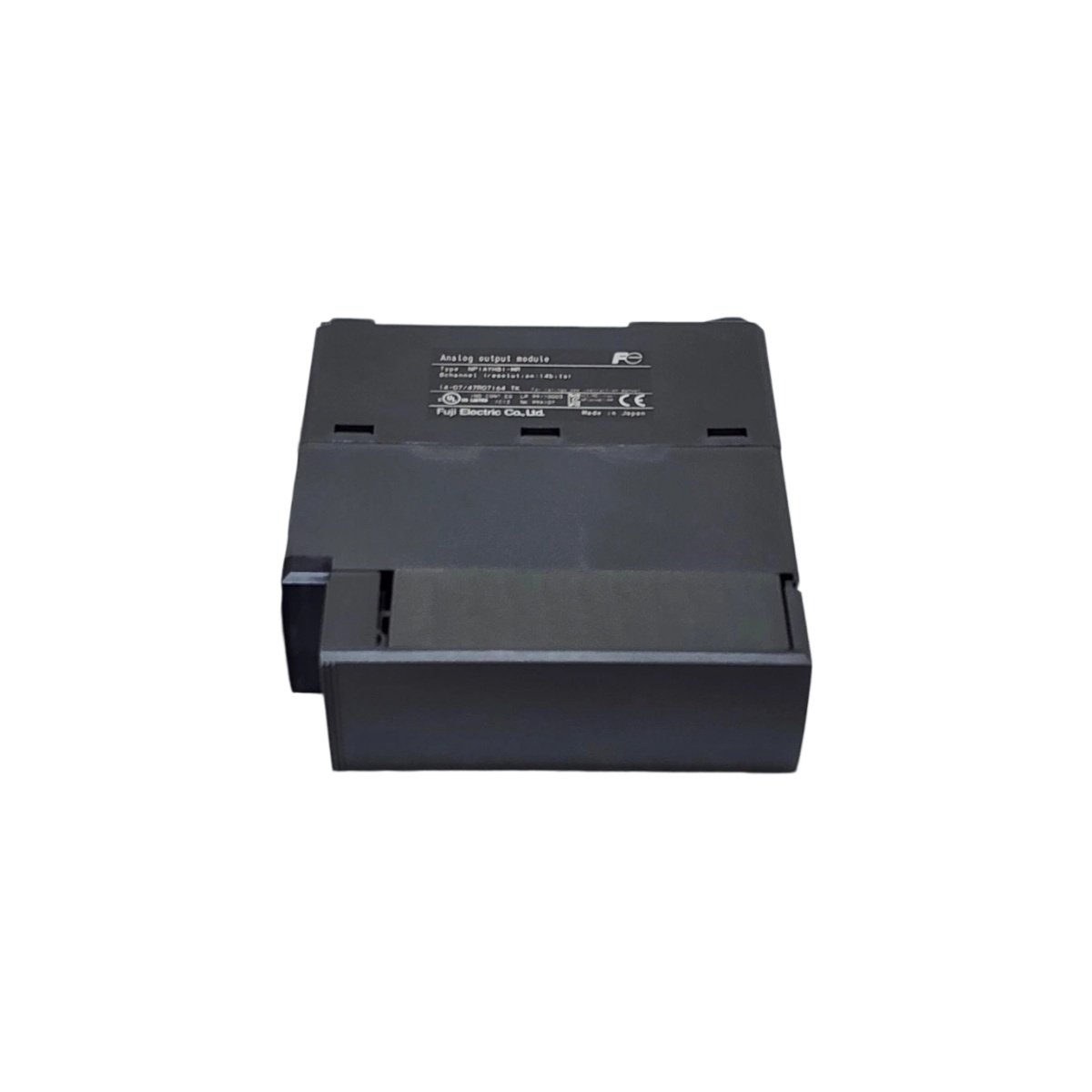

The FUJI NP1AYH8I-MR functions as an analog output module within the NP1 series programmable controller system. Fuji Electric designed this component for converting digital control signals to analog field outputs. This unit provides precise current or voltage signals for process control applications.

Output Configuration

This module features 8 analog output channels for controlling field devices. Each channel delivers precise analog signals for actuators and final control elements. Therefore, users can manage multiple process loops with a single module.

Technical Specifications

Channel Architecture

The FUJI NP1AYH8I-MR features individual output circuits for each of the 8 channels. Each channel includes dedicated circuitry for signal conditioning and conversion. Moreover, the design provides isolation between channels to prevent cross-interference.

Signal Processing

This module converts digital data from the CPU into precise analog output signals. It supports both current and voltage output types for application flexibility. Consequently, operators can interface with various field instruments without additional signal conditioners.

Interface Configuration

This module utilizes a terminal block for field wiring connections to actuators and devices. It connects to the NP1 backplane through a standard module connector. Additionally, the terminal block provides secure connections for industrial environments.

Physical Characteristics

Measuring approximately 6.8 inches in length, this module fits into standard NP1 base board slots. It weighs roughly 0.65 lbs for straightforward installation and replacement. The compact design allows efficient use of chassis space for analog control functions.

System Integration

This analog output module belongs to the Fuji NP1 series programmable controller product family. It integrates with NP1 CPU modules and base boards for complete control solutions. The FUJI NP1AYH8I-MR provides essential analog control capabilities for facilities requiring precise output signals for process automation applications.
