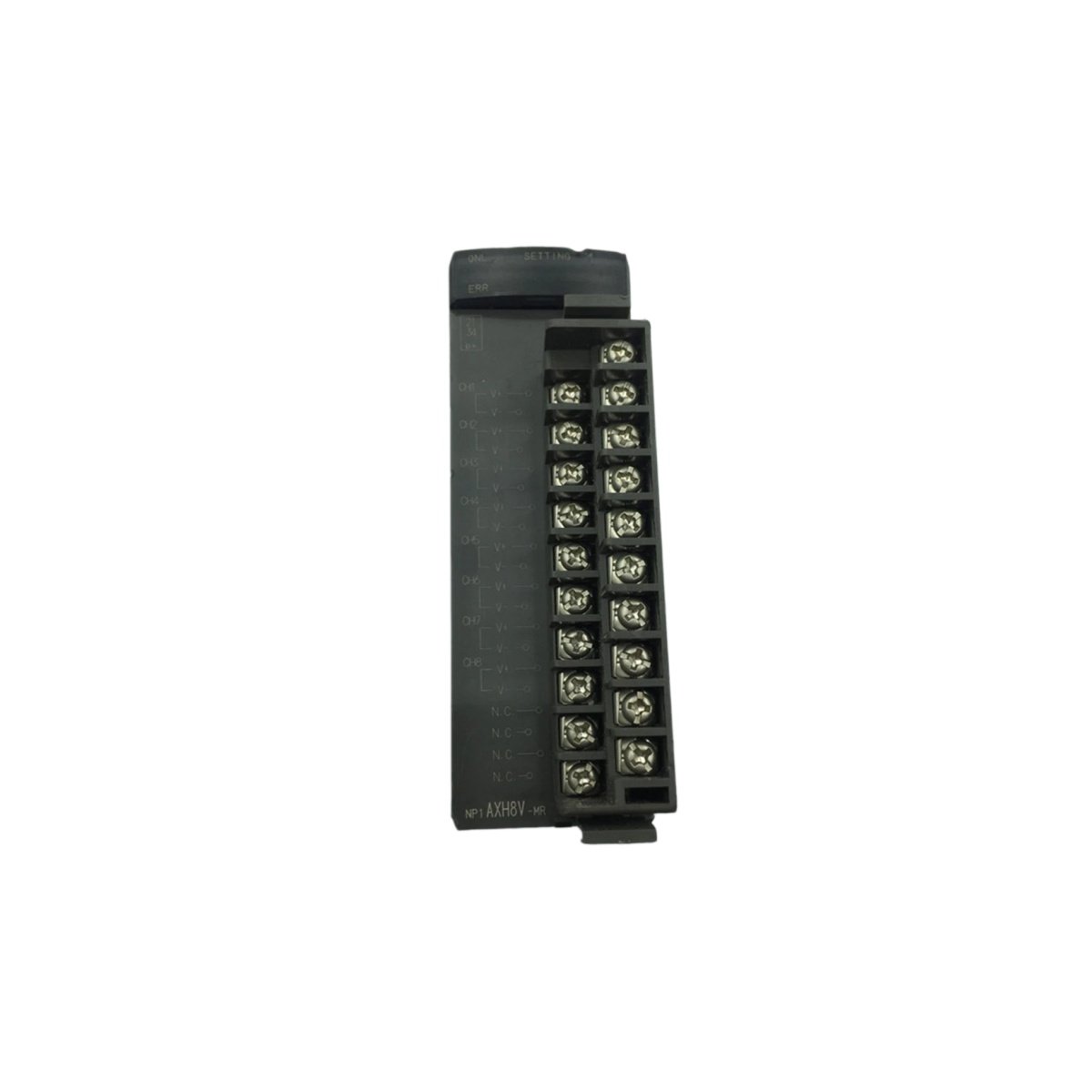

The FUJI NP1AXH8V-MR delivers high-precision analog input capabilities for the MICREX-SX series. This module accepts 8 differential analog channels from field sensors and transmitters. It supports voltage inputs ranging from 0 to 10 V DC. Consequently, you can monitor pressure, temperature, and flow signals with excellent accuracy.

Technical Specifications and Physical Dimensions

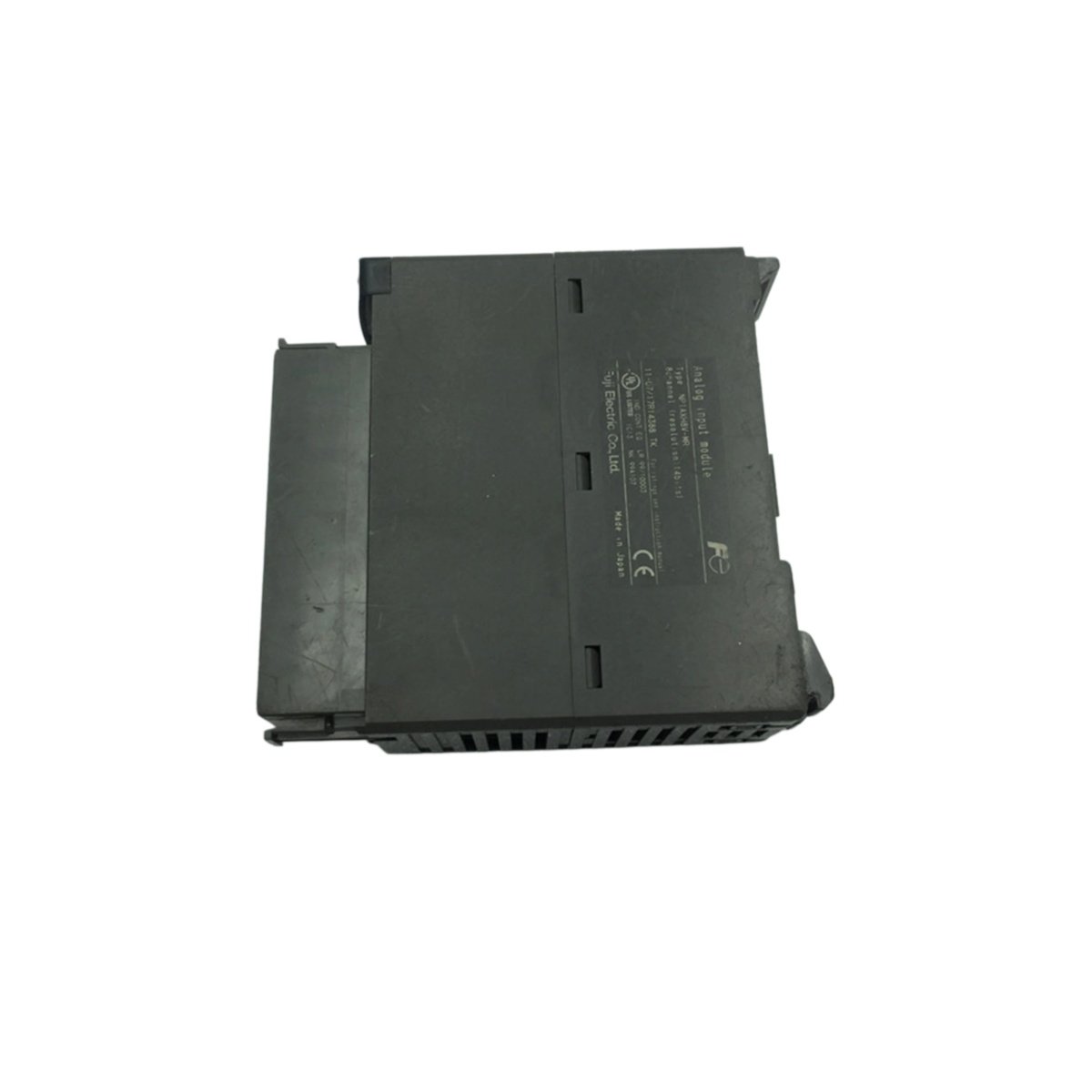

The FUJI NP1AXH8V-MR features a compact modular design for DIN-rail mounting. This module measures 120 mm in height, 70 mm in width, and 65 mm in depth. It weighs approximately 0.28 kilograms. The unit consumes 2.8 W of power from the backplane. Moreover, this analog input module provides 16-bit resolution for each of its 8 channels.

Energy Storage and Diagnostic Features

The FUJI NP1AXH8V-MR stores calibration coefficients in non-volatile EEPROM memory. This module eliminates the need for any external battery backup. Each channel includes an individual LED indicator for over-range and under-range detection. Therefore, you can identify signal faults quickly from the front panel. For additional industrial components, you can explore the RMS-TSG-TZ-C Static Trip unit on Alibaba. Always verify compatibility before integrating third-party hardware.

Installation and Connectivity Details

You can mount the FUJI NP1AXH8V-MR onto a standard DIN rail inside a control cabinet. This module requires a 20-pin connector for all field wiring connections. It supports both single-ended and differential input configurations. Furthermore, the unit includes built-in low-pass filtering for noise reduction.
