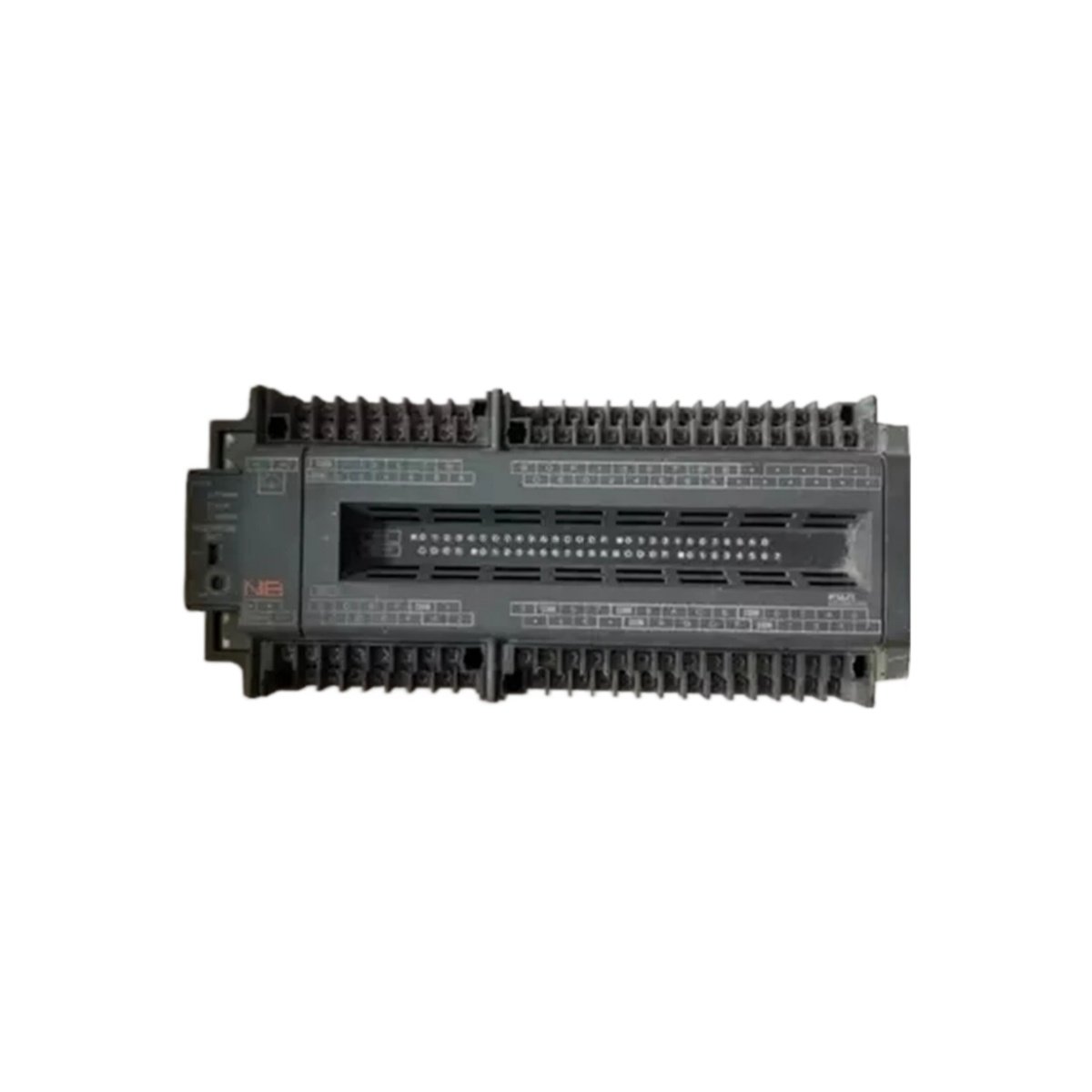

The FUJI NB2W56R provides a versatile PLC module for the MICREX-F control platform. This unit combines digital inputs, digital outputs, and analog channels in one package. It features 32 digital inputs, 24 digital outputs, and 2 analog inputs. Consequently, you can handle mixed signal types without multiple separate modules.
Technical Specifications and Physical Dimensions
The FUJI NB2W56R features a ruggedized design for industrial backplane mounting. This module measures 135 mm in height, 80 mm in width, and 95 mm in depth. It weighs approximately 0.65 kilograms. The unit consumes 8.5 W of power from the PLC backplane. Moreover, this integrated PLC module includes 64 KB of battery-backed RAM for user programs.
| Parameter | Specification |
|---|---|
| Brand | FUJI Electric |
| Model | NB2W56R |
| Product Type | PLC Module (Mixed I/O) |
| Digital Inputs | 32 points (24 V DC, sink/source) |
| Digital Outputs | 24 points (relay, 2A per point) |
| Analog Inputs | 2 channels (0-10 V or 4-20 mA) |
| User Memory | 64 KB battery-backed RAM |
| Program Capacity | 8,000 steps |
| Dimensions (H x W x D) | 135 x 80 x 95 mm |
| Weight | 0.65 kg (1.43 lbs) |
| Power Consumption | 8.5 W |
| Operating Temperature | 0°C to 55°C |
| Isolation | 500 V AC (optical) |
Energy Storage and Backup Features
The FUJI NB2W56R uses a replaceable lithium battery for memory retention. This battery preserves user programs and data for up to 5 years. The unit stores system parameters in non-volatile flash memory. Therefore, you lose no critical configurations during battery replacement. For additional industrial components, you can explore the RMS-TSG-TZ-C Static Trip unit on Alibaba. Always verify compatibility before integrating third-party hardware.
Installation and Connectivity Details
You can mount the FUJI NB2W56R directly into any MICREX-F series rack. This module provides a built-in RS-232 port for programming and monitoring. It also includes two rotary switches for station address setting. Furthermore, the unit features LED indicators for power, run, error, and I/O status.
