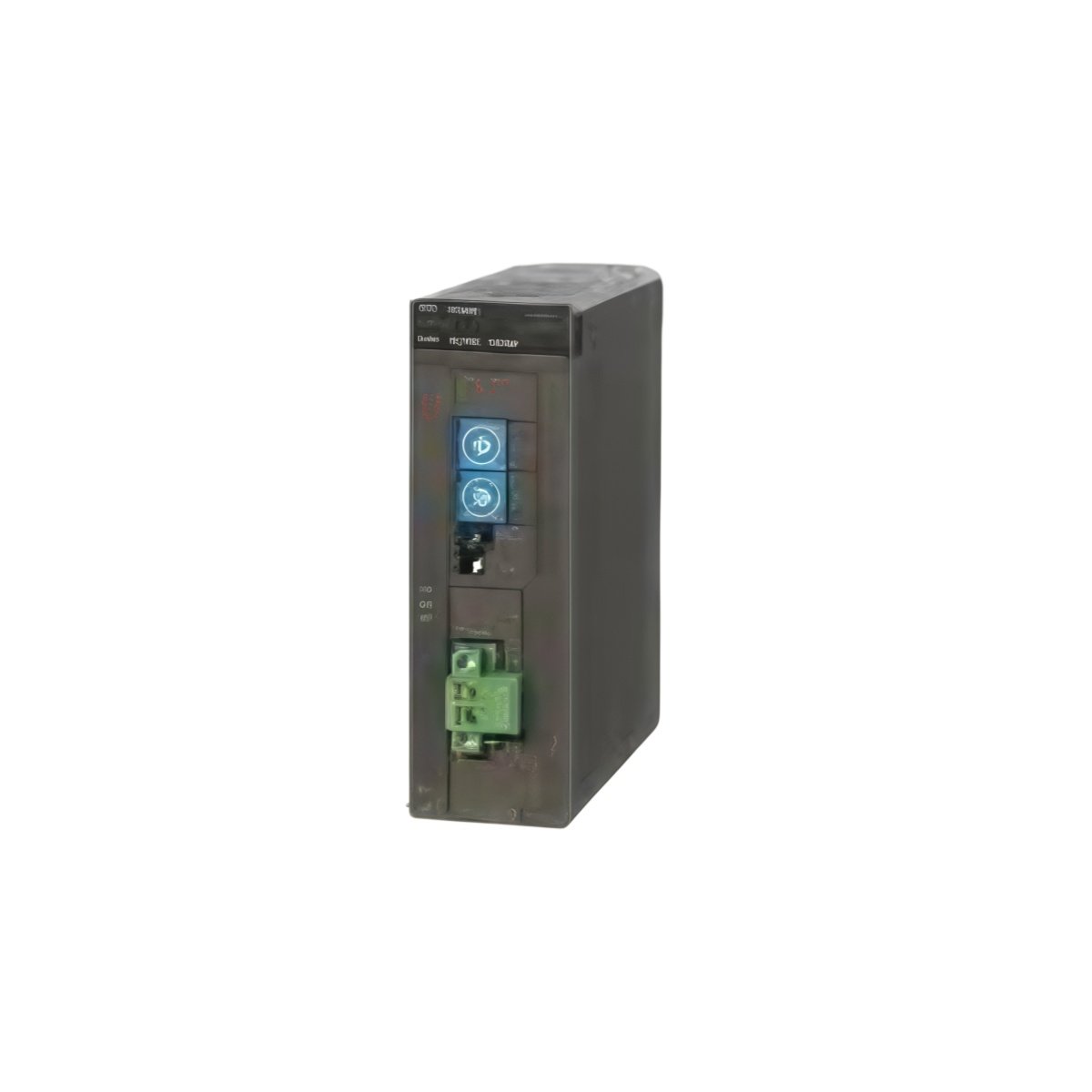

The FUJI CTHMIMOD-00 functions as a specialized PLC module for the MICREX-F family. This unit provides high-speed counting and positioning control capabilities. It accepts encoder inputs and generates pulse train outputs. Consequently, you can control servo motors and high-speed positioning axes precisely.
Technical Specifications and Physical Dimensions
The FUJI CTHMIMOD-00 features a compact unitized design for backplane mounting. This module measures 130 mm in height, 60 mm in width, and 90 mm in depth. It weighs approximately 0.45 kilograms. The unit consumes 4.5 W of power from the PLC backplane. Moreover, this counter module includes two encoder input channels and two pulse output channels.
| Parameter | Specification |
|---|---|
| Brand | FUJI Electric |
| Model | CTHMIMOD-00 |
| Product Type | PLC Module (High-Speed Counter) |
| Encoder Inputs | 2 channels (differential or single-ended) |
| Pulse Outputs | 2 channels (line driver) |
| Max Counting Speed | 200 kHz per channel |
| Counter Resolution | 32 bits |
| Input Voltage | 5 V DC or 24 V DC (selectable) |
| Output Frequency | 100 kHz maximum |
| Dimensions (H x W x D) | 130 x 60 x 90 mm |
| Weight | 0.45 kg (0.99 lbs) |
| Power Consumption | 4.5 W |
| Operating Temperature | 0°C to 55°C |
| Isolation | 500 V AC (optical) |
Energy Storage and Data Retention
The FUJI CTHMIMOD-00 uses non-volatile EEPROM for parameter storage. This module retains all configuration data without any battery backup. It stores current counter values in volatile memory during operation. Therefore, you should enable the external battery option for long-term power loss scenarios. For additional industrial components, you can explore the RMS-TSG-TZ-C Static Trip unit on Alibaba. Always verify compatibility before integrating third-party hardware.
Installation and Connectivity Features
You can install the FUJI CTHMIMOD-00 into any MICREX-F series rack slot. This module provides a 20-pin connector for all encoder and output wiring. It supports both incremental and absolute encoder input types. Furthermore, the unit includes LED indicators for each channel’s active status.
Details
| Weight | 0.7 kg |
|---|---|
| Dimensions | 2.5 × 20.3 × 15.2 mm |
