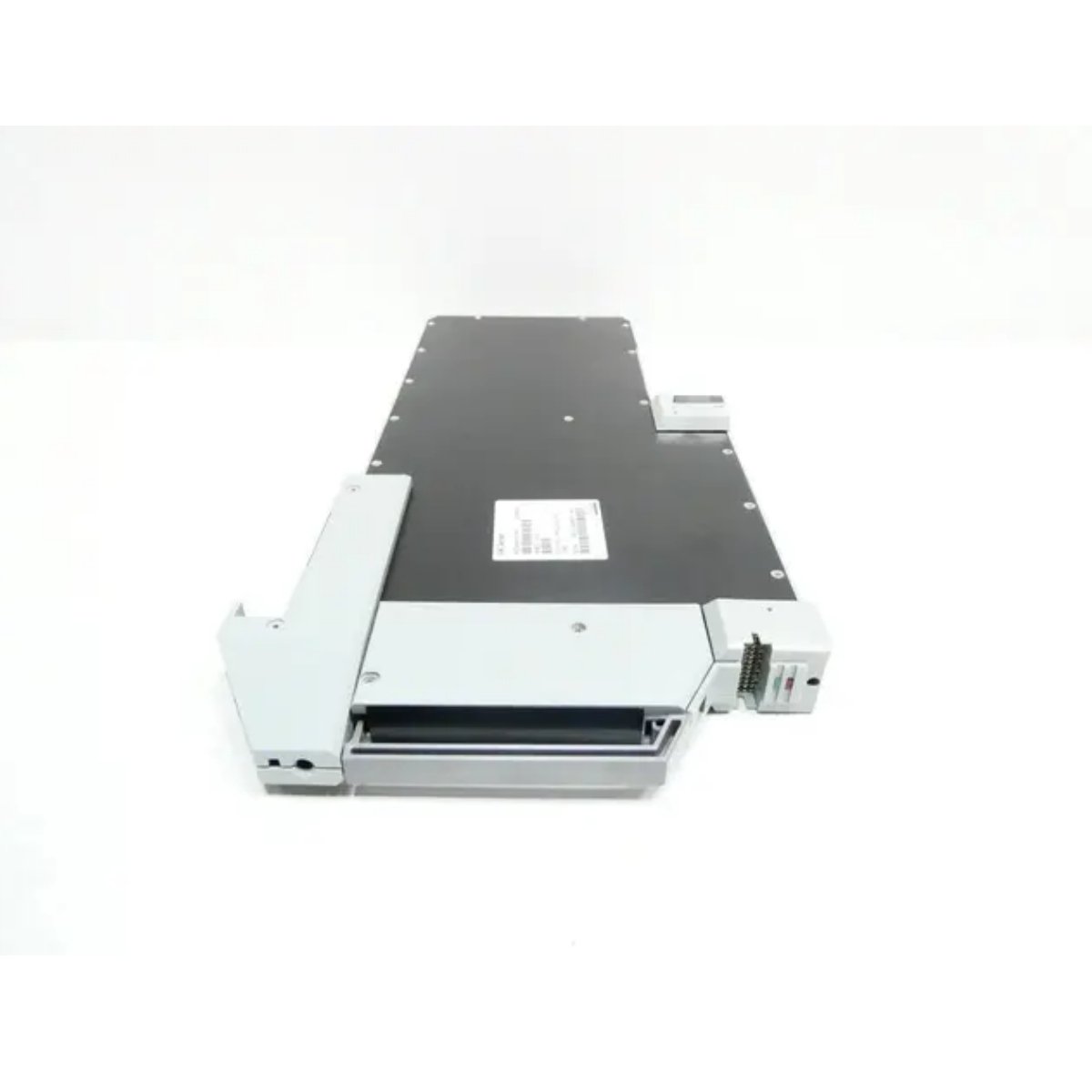

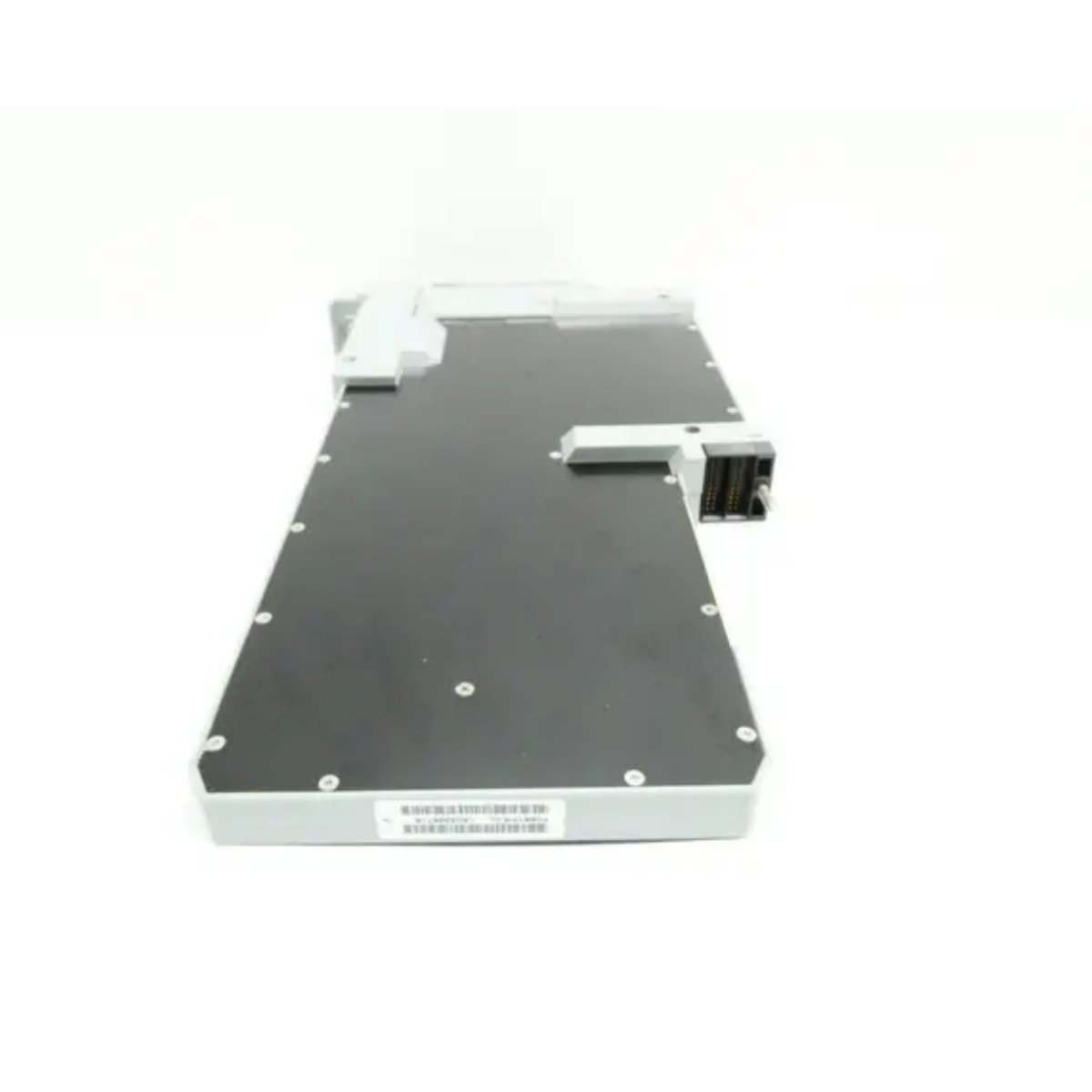

Overview of the CP60 Processor Module
The Foxboro P0961FR CP60 module provides fast control processing for complex industrial automation systems. It handles demanding logic cycles efficiently, and it communicates smoothly with other modules in the Foxboro architecture. Engineers rely on this processor when they require stable performance and reliable system coordination.
Processing Capability and System Performance
The CP60 module uses a 32-bit processor that runs at 100 MHz, and it handles advanced control functions easily. It also supports communication throughput of 2 Mbps, which ensures responsive data exchange with distributed system components. Moreover, it maintains stable output even when running continuous high-load control sequences.
Electrical and Communication Specifications
| Specification | Details |
|---|---|
| Model | P0961FR CP60 |
| Power Supply Voltage | 24 V DC nominal |
| Maximum Power Consumption | 25 W |
| Processor Type | 32-bit CPU |
| Clock Speed | 100 MHz |
| Data Throughput | 2 Mbps |
| Supported Protocols | Modbus, TCP/IP |
Environmental and Operating Conditions
The Foxboro P0961FR module functions reliably across broad temperature ranges, and it withstands humidity levels common in industrial environments. It stores safely in both low-temperature and high-temperature conditions, ensuring long-term hardware integrity. Engineers deploy it confidently in processing plants, power facilities, and continuous-operation automation systems.
| Environmental Parameter | Details |
|---|---|
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity Range | 5% to 95% non-condensing |
Physical Specifications and Module Construction
| Item | Details |
|---|---|
| Height | 183 mm (7.2 in) |
| Width | 147 mm (5.8 in) |
| Depth | 38 mm (1.5 in) |
| Weight | 1.16 kg (2.56 lbs) |
Origin, Dimensions, and Weight
- Origin: United States
- Dimensions: 183 mm × 147 mm × 38 mm
- Weight: 1.16 kg
Application Areas
Engineers integrate the Foxboro CP60 module into process control systems that require fast execution cycles and stable communication. It supports supervisory logic, distributed control operations, and multi-module data coordination. With strong processing speed and secure communication protocols, it improves overall system response and operational reliability.
Details
| Weight | 1.16 kg |
|---|---|
| Dimensions | 183 × 147 × 38 mm |
