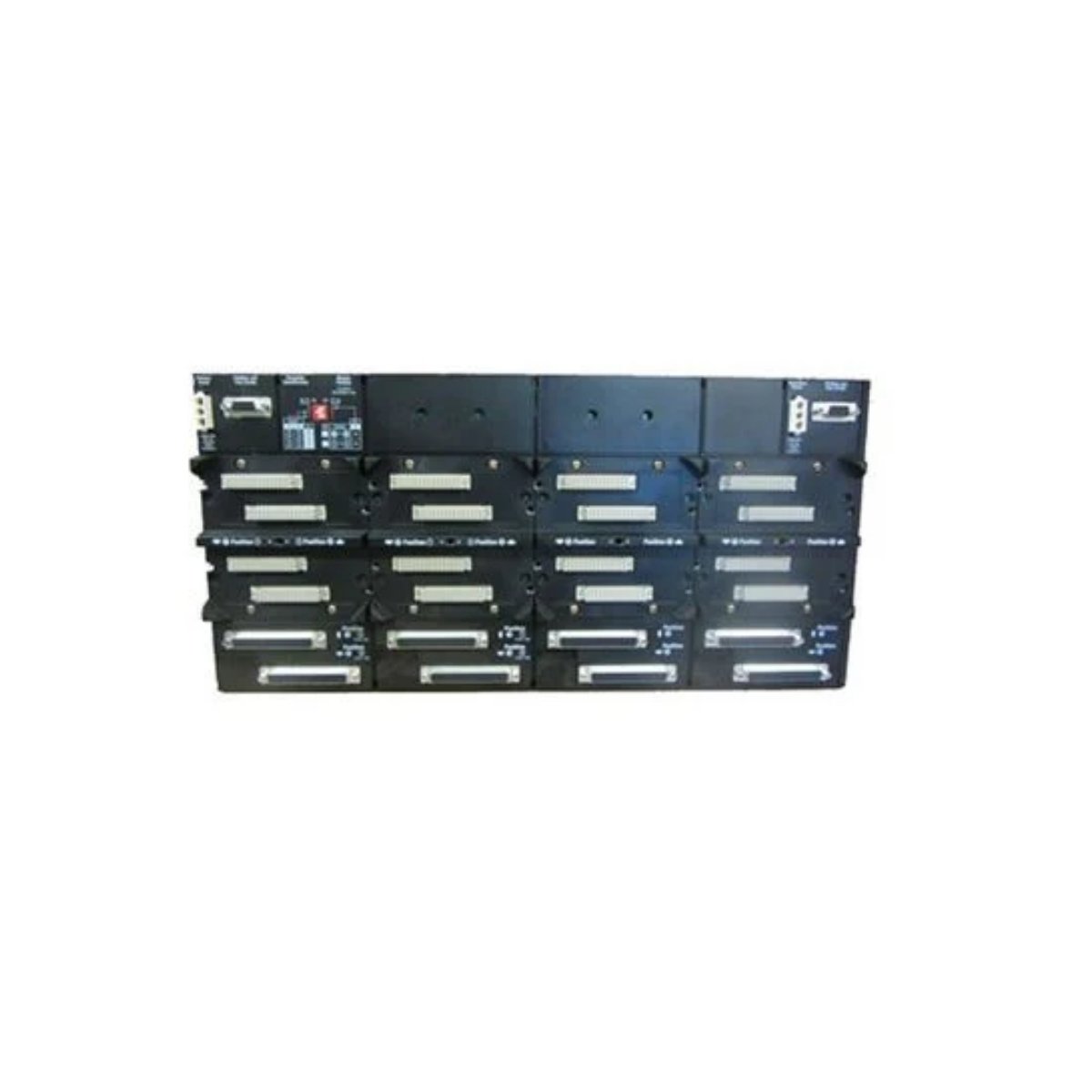

Overview of the Foxboro P0926HJ Baseplate
The Foxboro P0926HJ modular baseplate provides a reliable mounting platform for multiple I/O modules within automation systems. Engineers choose it for flexibility, because it allows secure installation and consistent electrical connectivity across several Foxboro modules. Its compact design also simplifies system layout in dense control cabinets.
Slot Configuration and Module Compatibility
The P0926HJ baseplate includes four slots, which support a variety of Foxboro I/O modules. Each slot ensures firm mechanical and electrical engagement, enabling precise signal communication. Furthermore, it accommodates future module expansions without significant cabinet modifications, providing long-term adaptability in process control environments.
Electrical and Power Specifications
The Foxboro P0926HJ baseplate operates with a nominal 24 VDC power supply. Designers must verify individual module voltage requirements to ensure correct operation. It efficiently distributes power to connected modules while maintaining stable system performance under continuous load conditions.
Environmental and Operating Conditions
This baseplate withstands industrial operating temperatures ranging from −20°C to +70°C. It also tolerates typical humidity levels encountered in control cabinets. Its robust construction maintains reliable module positioning and ensures electrical integrity in vibration-prone or harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P0926HJ |
| Number of Slots | 4 slots |
| Module Compatibility | Compatible with multiple Foxboro I/O modules |
| Power Supply Voltage | Typically 24 VDC (check module specs) |
| Operating Temperature | −20°C to +70°C |
| Height | 230 mm |
| Width | 170 mm |
| Depth | 35 mm |
| Weight | 0.5 kg |
Origin, Dimensions, and Weight
- Origin: United States
- Dimensions: 230 mm × 170 mm × 35 mm
- Weight: 0.5 kg
Application and Benefits
Engineers use the P0926HJ baseplate to mount Foxboro I/O modules securely in distributed control systems. It improves system reliability, simplifies wiring, and supports quick maintenance. Its modular architecture also allows future expansions without major infrastructure changes, optimizing long-term plant operations.
Details
| Weight | 0.5 kg |
|---|---|
| Dimensions | 230 × 170 × 35 mm |
