Overview of the Foxboro P0926HC Baseplate

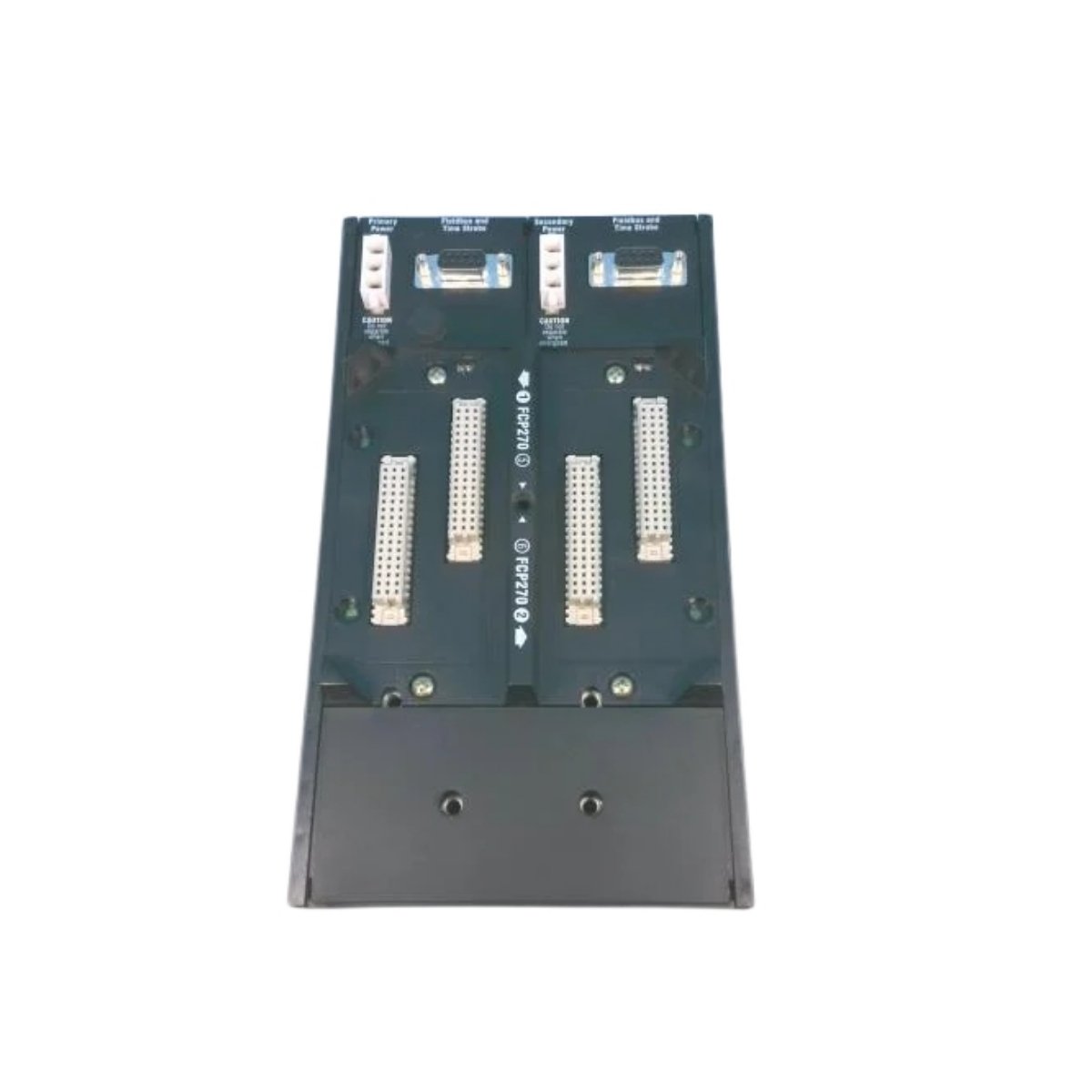

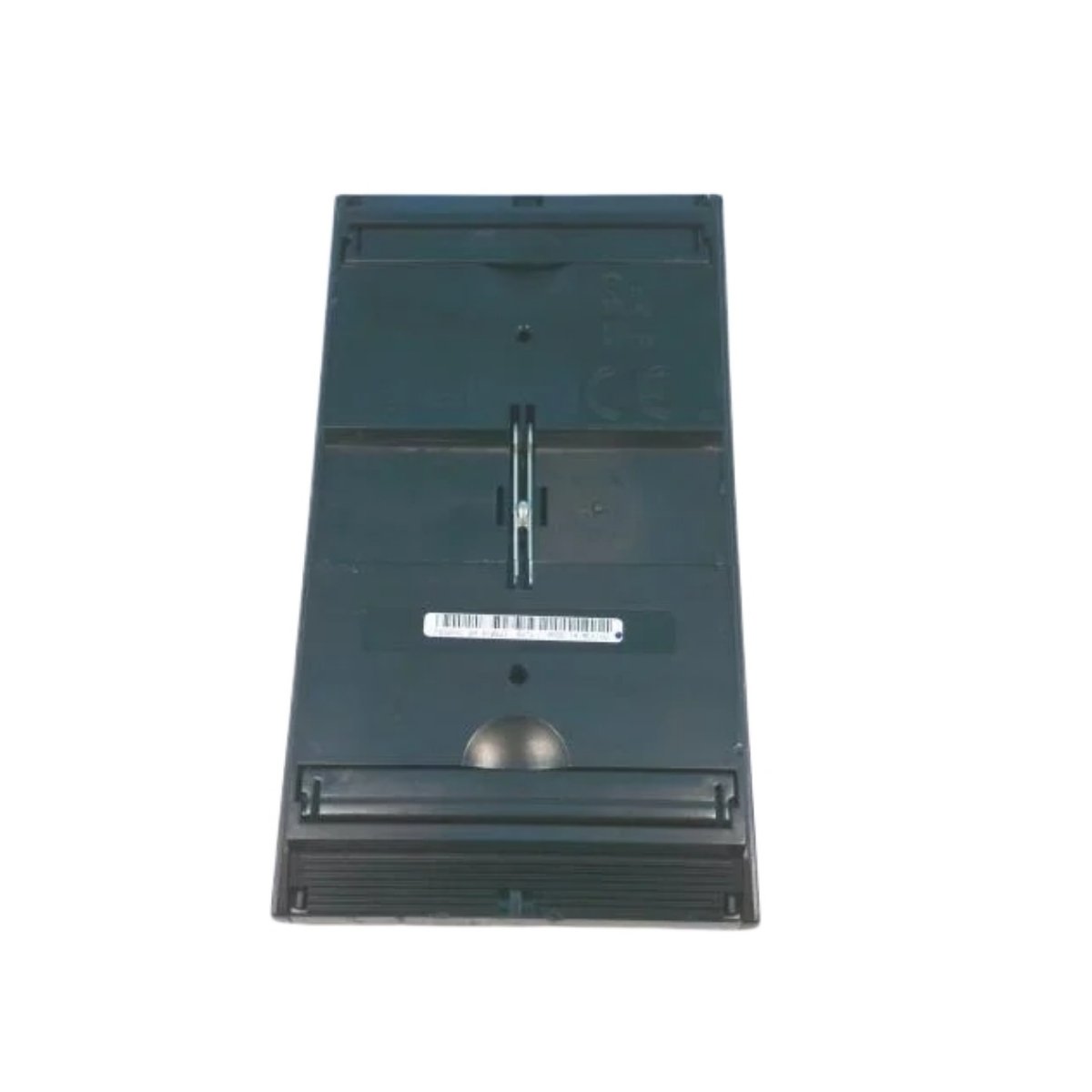

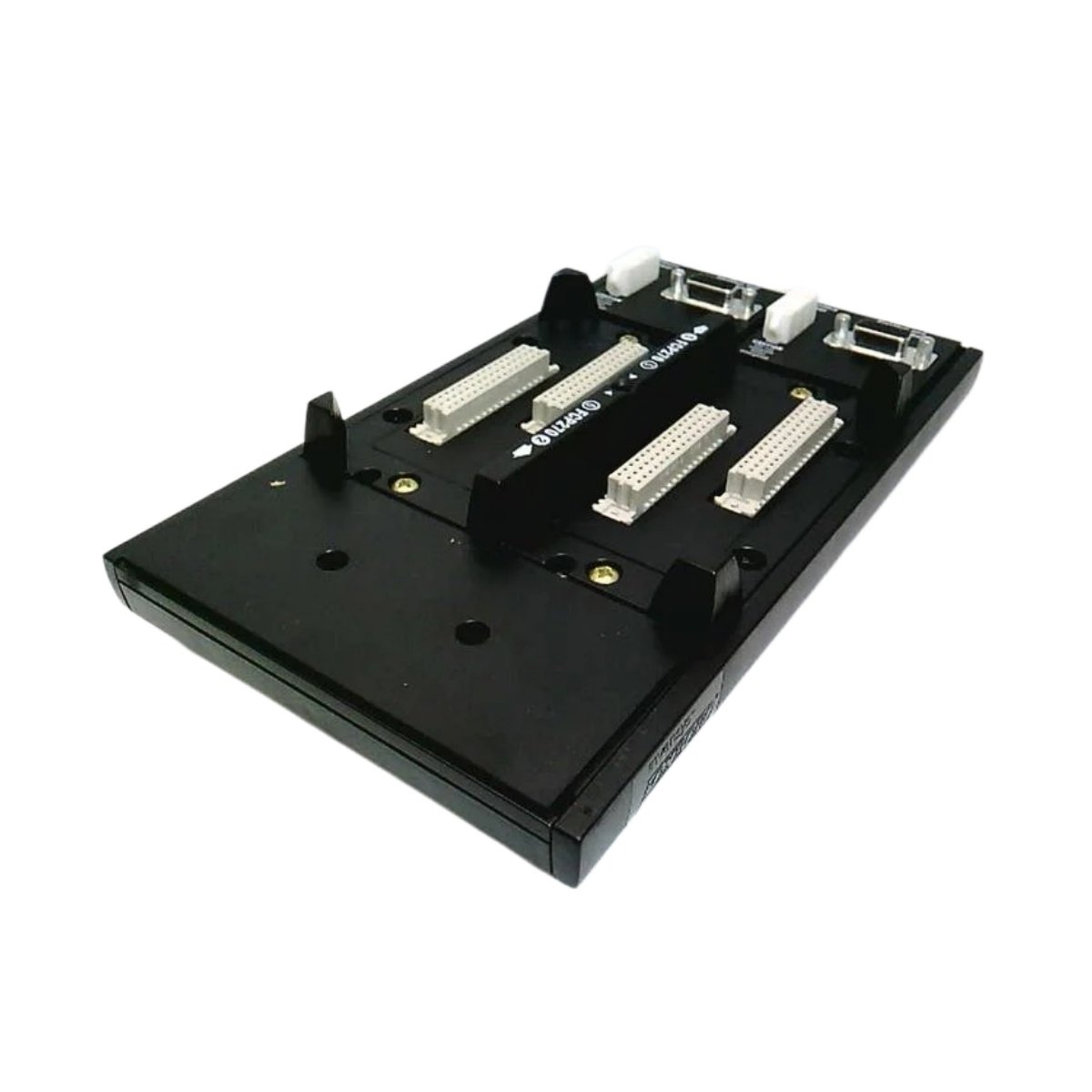

The Foxboro P0926HC modular baseplate provides secure horizontal mounting for multiple FCP270 modules. It simplifies system assembly, supports stable electrical connections, and allows engineers to create organized control panel layouts efficiently. Its design also enables reliable long-term performance in industrial automation environments.

Slot Configuration and Module Support

The P0926HC baseplate includes two slots specifically for FCP270 modules, ensuring consistent mechanical and electrical engagement. It accommodates future expansions by allowing easy installation of additional compatible modules. This flexibility reduces downtime and improves long-term system scalability.

Electrical and Power Characteristics

The Foxboro P0926HC baseplate supports redundant 24 V DC input voltage with ±5% tolerance, protecting connected modules from minor voltage fluctuations. It distributes power efficiently across installed modules while maintaining stable operation under continuous load conditions. Engineers can rely on its robust design for high-reliability automation systems.

Cabling and Installation Flexibility

The P0926HC baseplate accepts cables ranging from 0.4 m (16 in) to 2.1 m (7 ft), enabling versatile routing in cabinets of different sizes. Its modular design simplifies wiring organization and reduces installation errors, improving maintenance efficiency in distributed control systems.

Technical Specifications

Origin, Dimensions, and Weight

• Origin: United States
• Dimensions: 280 mm × 150 mm × 40 mm
• Weight: 0.91 kg

Application and Benefits

Engineers use the Foxboro P0926HC baseplate to mount FCP270 modules securely in horizontal orientation. Its compact design, flexible cabling options, and redundant voltage support improve system reliability and reduce installation complexity in industrial automation setups.
