Overview of the Foxboro P0926EQ Module

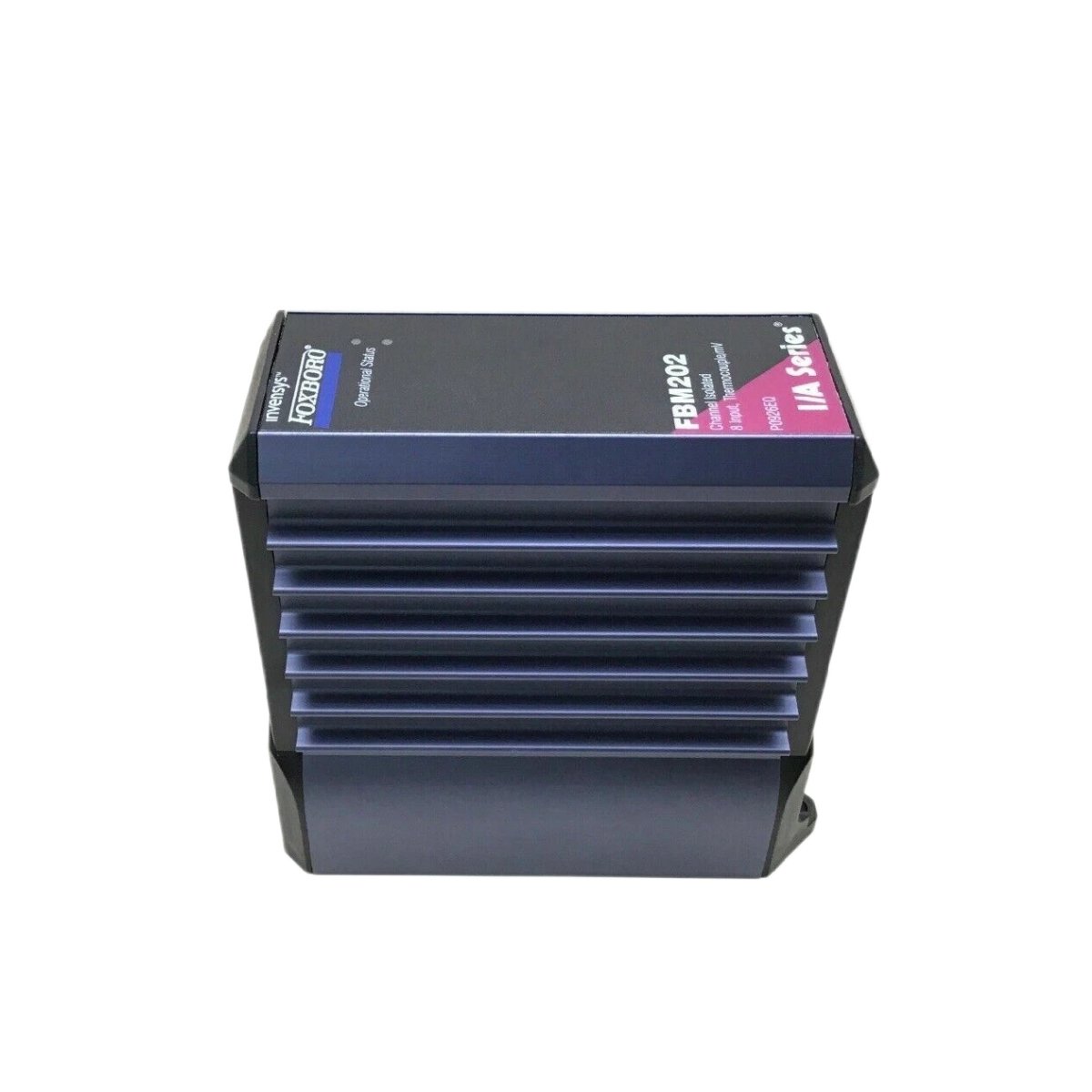

The Foxboro P0926EQ module accurately processes thermocouple and millivolt signals for industrial automation systems. Engineers select it for its precise signal conversion, energy efficiency, and reliable operation across a wide range of environmental conditions. Its modular design allows seamless integration with other Foxboro I/A Series input modules, improving overall system performance.
Electrical and Power Specifications
The P0926EQ module operates on 24 V DC with a +5%/-10% tolerance, maintaining stable power under varying conditions. Its power consumption peaks at only 3 W, making it energy-efficient while preventing excessive heat buildup. The module dissipates up to 3 W of heat, ensuring long-term reliability even during continuous operation.
Environmental and Operating Conditions
This module performs reliably in temperatures from −20°C to +70°C, and the termination assembly supports specific materials: PVC up to +50°C, and PA or PC/ABS up to +70°C. The P0926EQ tolerates 5%–95% non-condensing humidity and operates at altitudes from −300 m to +3,000 m, maintaining signal accuracy under varied conditions.
Storage Conditions
The Foxboro P0926EQ module withstands storage temperatures from −40°C to +70°C and tolerates 5%–95% non-condensing humidity. It also safely stores at altitudes from −300 m to +12,000 m, ensuring module integrity before installation or deployment in high-altitude facilities.
Physical Dimensions and Mounting
The P0926EQ module is compact, with a height of 102 mm (114 mm including mounting lugs), width of 45 mm, and depth of 104 mm. Weighing approximately 284 g, it mounts easily in control cabinets while providing stable mechanical and electrical connections.
Technical Specifications
| Specification | Details |
|---|---|
| Model | P0926EQ |
| Input Type | Thermocouple/mV signals |
| Input Voltage Range | 24 V DC, ±5% / -10% |
| Power Consumption | Maximum 3 W |
| Heat Dissipation | 3 W |
| Operating Temperature Module | −20°C to +70°C |
| Termination Assembly Temperature | PVC: −20°C to +50°C, PA/PC-ABS: −20°C to +70°C |
| Humidity Range | 5%–95% non-condensing |
| Operating Altitude | −300 m to +3,000 m |
| Storage Temperature | −40°C to +70°C |
| Storage Humidity | 5%–95% non-condensing |
| Storage Altitude | −300 m to +12,000 m |
| Height | 102 mm (114 mm with mounting lugs) |
| Width | 45 mm |
| Depth | 104 mm |
| Weight | 284 g (10 oz) |
Origin, Dimensions, and Weight
- Origin: United States
- Dimensions: 102 mm × 45 mm × 104 mm (114 mm including lugs)
- Weight: 284 g (10 oz)
Application and Benefits
The Foxboro P0926EQ module provides precise thermocouple and millivolt signal acquisition for distributed control systems. Its energy-efficient design, wide environmental tolerance, and compact size improve system reliability and simplify integration in industrial automation panels.
Details
| Weight | 0.284 kg |
|---|---|
| Dimensions | 102 × 45 × 104 mm |
