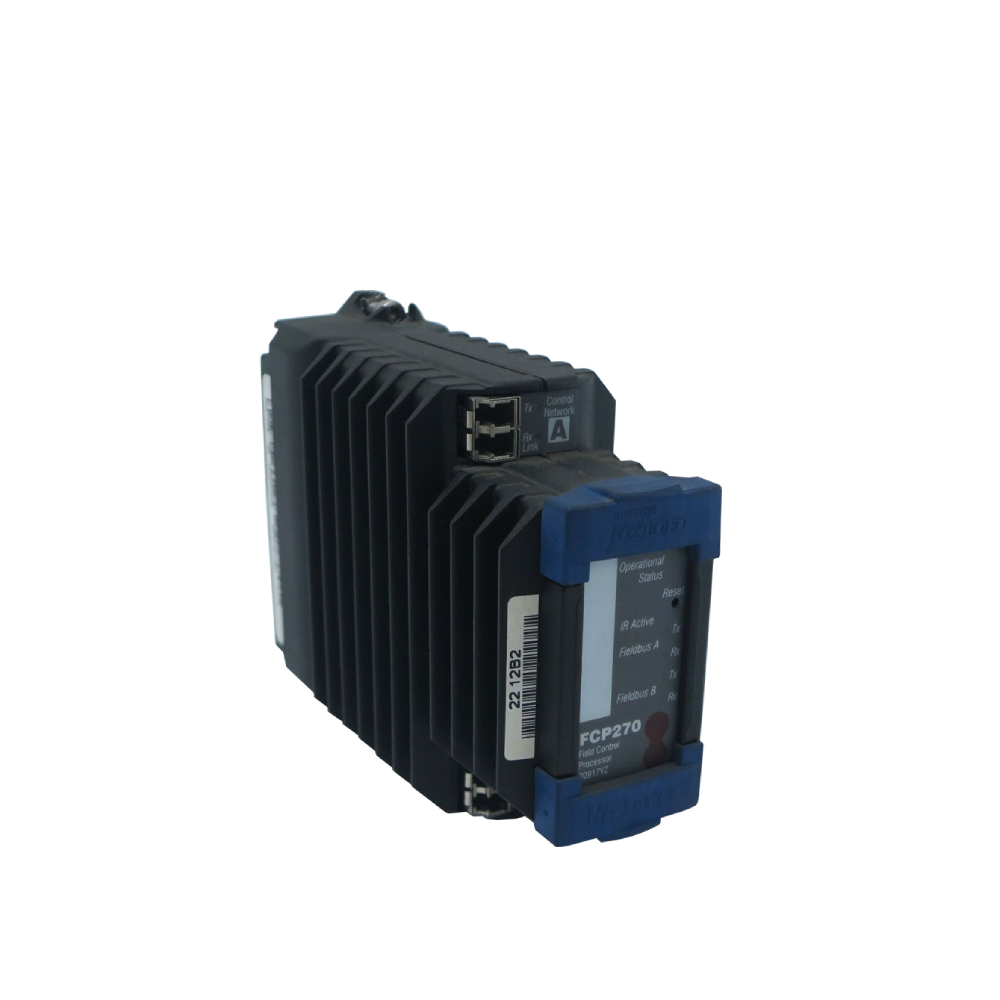

Overview of the P0917YZ FCP270
The P0917YZ is part of the FOXBORO FCP270 Field Control Processor series, a distributed and optionally fault-tolerant controller designed to perform critical process control and alarming functions. This field-mounted controller is ideal for use in industrial automation applications that require high reliability and flexible connectivity with Fieldbus Modules (FBMs).
Key Features of the P0917YZ FCP270
- Flexible Connectivity: The P0917YZ supports up to 32 200 Series FBMs without an expansion module. With the FEM100, the system can handle up to 128 FBMs.
- Redundant Operation: For enhanced reliability, the P0917YZ incorporates fault-tolerant features, ensuring that the control system remains operational even in the event of a failure.
- Rugged Design: This processor is designed to withstand harsh industrial environments. It is CE certified, making it suitable for field mounting in various enclosures.
- High-Speed Communication: The P0917YZ connects to the MESH control network using a fiber optic 100 Mbps Ethernet link, ensuring fast and efficient data transmission.
Detailed Technical Specifications of the P0917YZ
| Specification | Details |
|---|---|
| Processor | AMD Elan 520 (100 MHz) |
| Memory | 16 MB SDRAM, 32 MB flash |
| Error Detection | ECC for single and multiple-bit errors |
| Fieldbus Support | 2 Mbps (200 Series), 268 Kbps (100 Series) |
| Power Consumption | 8.5 W (max) |
| Operating Temperature | 0 to +60°C (32 to 140°F) |
| Vibration | 0.5 g (5 to 500 Hz) |
| Dimensions | 103 mm x 51.5 mm x 147 mm |
| Weight | 0.6 kg (1.3 lbs) |
Environmental and Physical Characteristics
- Temperature: The P0917YZ operates within a range of -55°C to +121°C (-67°F to +250°F).
- Humidity: It functions optimally in environments with 5% to 95% non-condensing humidity.
- Altitude: The processor is suitable for environments ranging from -1000 ft to 10,000 ft above sea level.
- Vibration: It can withstand vibrations of 0.5 g within the frequency range of 5 to 500 Hz.
FAQ
Q: What functions does the P0917YZ FCP270 perform?
A: The P0917YZ FCP270 handles process control, alarm detection, and communicates with FBMs. It ensures smooth and accurate monitoring of industrial processes.
Q: How many FBMs can I connect to the P0917YZ?
A: The P0917YZ supports up to 32 200 Series FBMs without expansion. With the addition of the FEM100, it can connect up to 128 FBMs.
Q: Is the P0917YZ suitable for harsh industrial environments?
A: Yes, the P0917YZ is built to endure tough conditions. It is CE certified for field mounting and meets various industry standards.
Q: What power supply does the P0917YZ require?
A: The P0917YZ uses a 24 V DC power supply with a maximum consumption of 8.5 W.
Q: Can I mount the P0917YZ in different orientations?
A: Yes, the P0917YZ can be mounted either horizontally or vertically, providing flexibility in installation.
